Installation Procedure

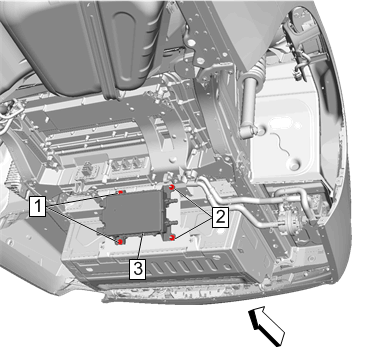

  1. GM4453885Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger (3) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Drive Motor Battery Charger Fastener (2) - Install and tighten [ 2x] 22 N.m (16 lb ft)
  3. Drive Motor Battery Charger Fastener (1) - Install and tighten [ 2x] 22 N.m (16 lb ft)

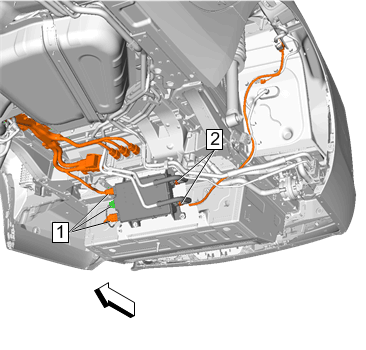

  4. GM4486354Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect [ 3x]

  5. Install the generator control module coolant inlet and outlet hoses (2), refer to Generator Control Module Coolant Outlet Hose Replacement (Inlet)Generator Control Module Coolant Outlet Hose Replacement (Outlet)
  6. Lower the vehicle.
  7. Enable the high voltage system. High Voltage Enabling
