Removal Procedure

CAUTION: To prevent equipment damage, never connect or disconnect the wiring harness connection from the EBCM with the ignition switch in the ON position.

Place the ignition switch in the OFF position.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
Thoroughly clean the area around the electronic brake control module (EBCM) of all dirt and debris.

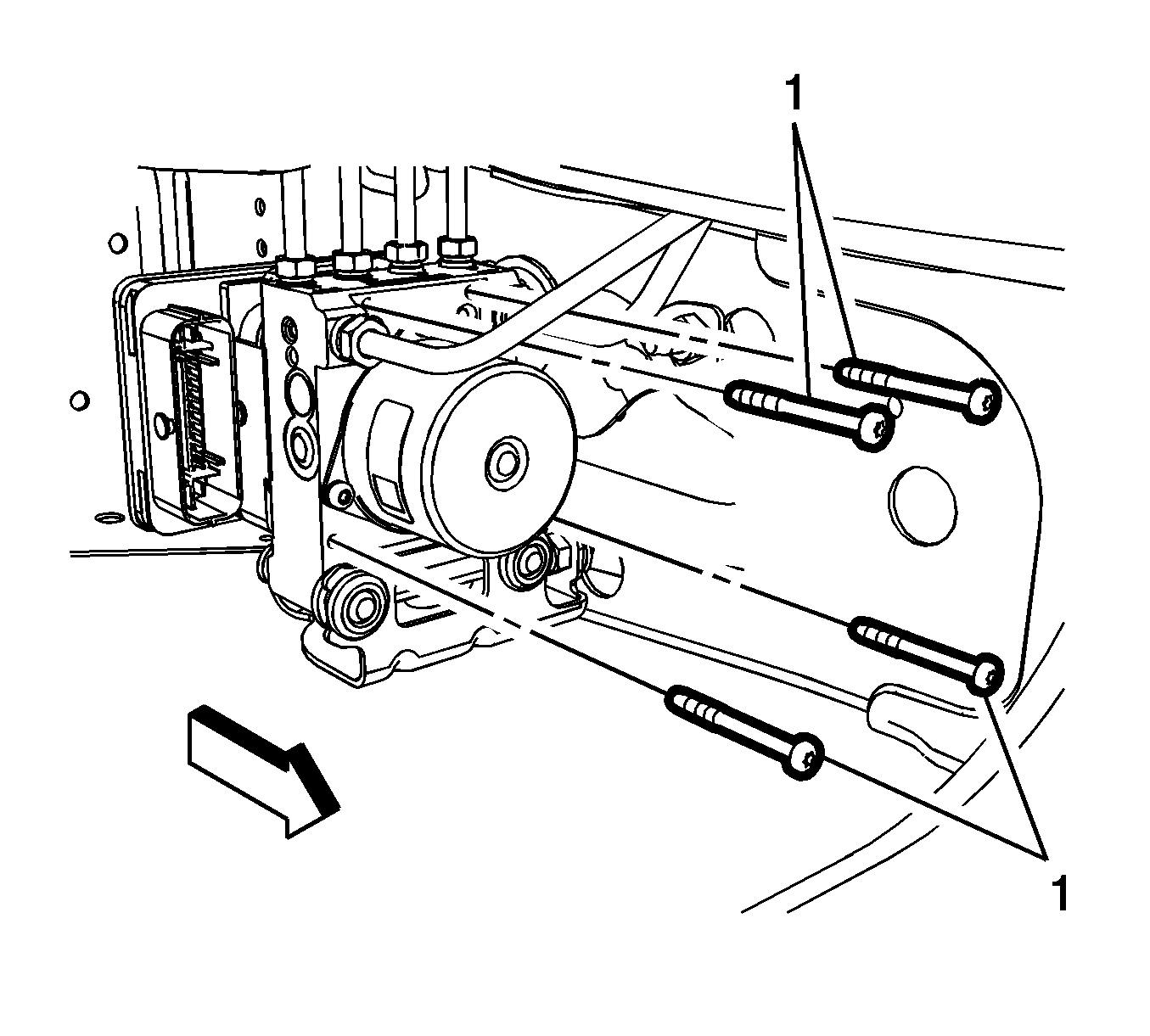

Fig 1: EBCM Bolts
Courtesy of GENERAL MOTORS COMPANY
Disconnect the EBCM electrical connector.
Remove the EBCM bolts (1).
Carefully separate the EBCM (1) from the brake pressure modulator valve (BPMV) by pulling straight away from the BPMV.

Fig 2: EBCM And Brake Pressure Modulator Valve (BPMV)
Courtesy of GENERAL MOTORS COMPANY

NOTE: Do not attempt to pry or lever against the EBCM.
