Installation Procedure

  1. Pressing firmly by hand, install the EBCM bracket until the BPMV assembly is fully seated in the bracket insulators.

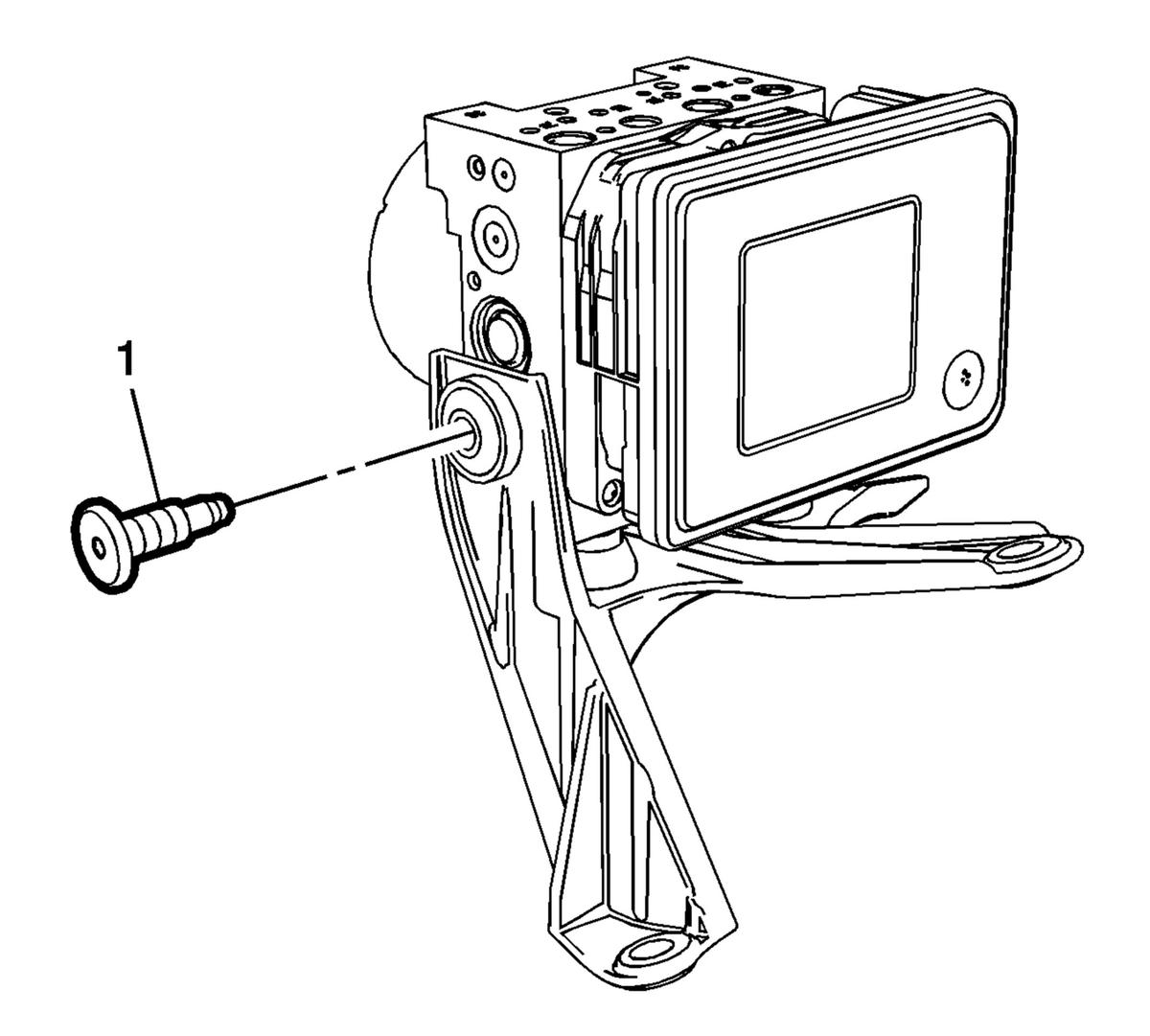

  2. GM2809430Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the EBCM bracket bolt (1) and tighten to 8 N.m (71 lb in).

  3. Install the BPMV assembly. Refer to Brake Pressure Modulator Valve Replacement .
