Remote Function Actuator Module Replacement

Courtesy of GENERAL MOTORS COMPANY

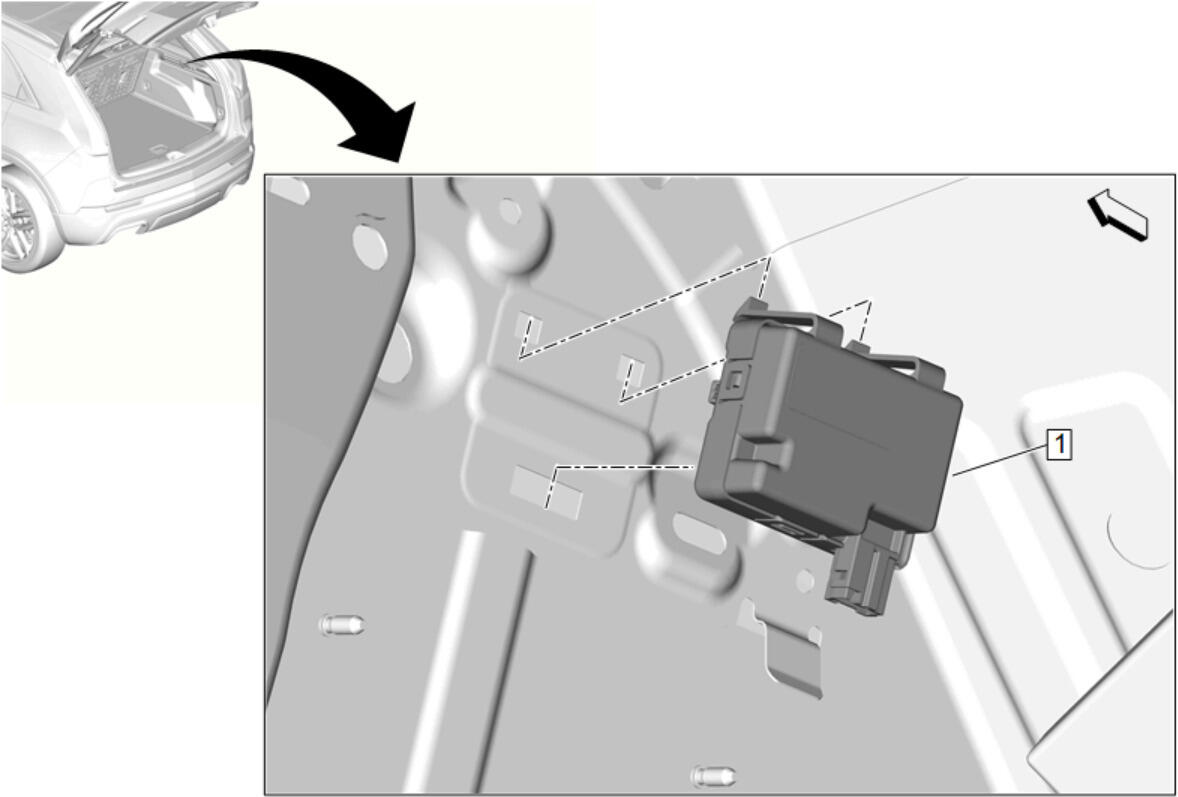

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Remote Control Door Lock Receiver

Procedure
