Fastener Specifications

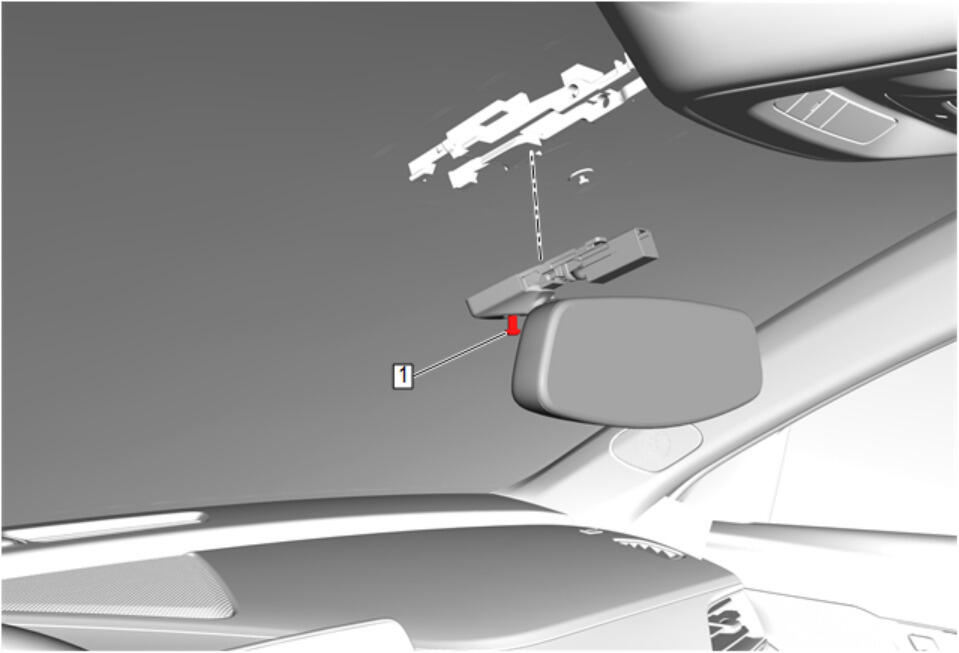

Inside Rearview Mirror
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Inside Rearview Mirror Bolt | - | - | 1.8 N.m (16 lb in) | Inside Rearview Mirror Replacement |

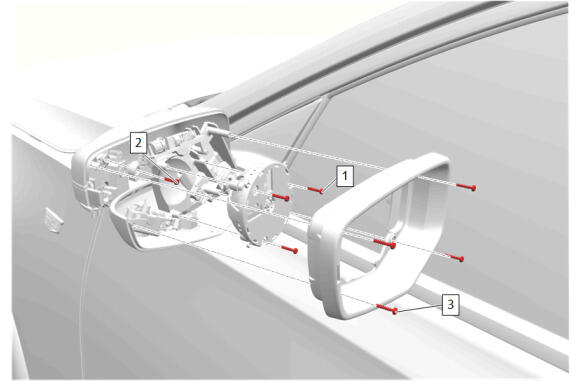

Outside Rearview Mirror Components (with DMB)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Actuator Bolt [3x] | - | - | 0.9 N.m (8 lb in) | Outside Rearview Mirror Actuator Replacement (with DMB) |
| 2 | Outside Rearview Mirror Housing Opening Cover Bolt | - | - | 0.9 N.m (8 lb in) | Outside Rearview Mirror Housing Upper Cover Replacement (with DMB) |
| 3 | Outside Rearview Mirror Opening Applique Bolt [4x] | - | - | 0.9 N.m (8 lb in) | Outside Rearview Mirror Housing Bezel Replacement (with DMB) |

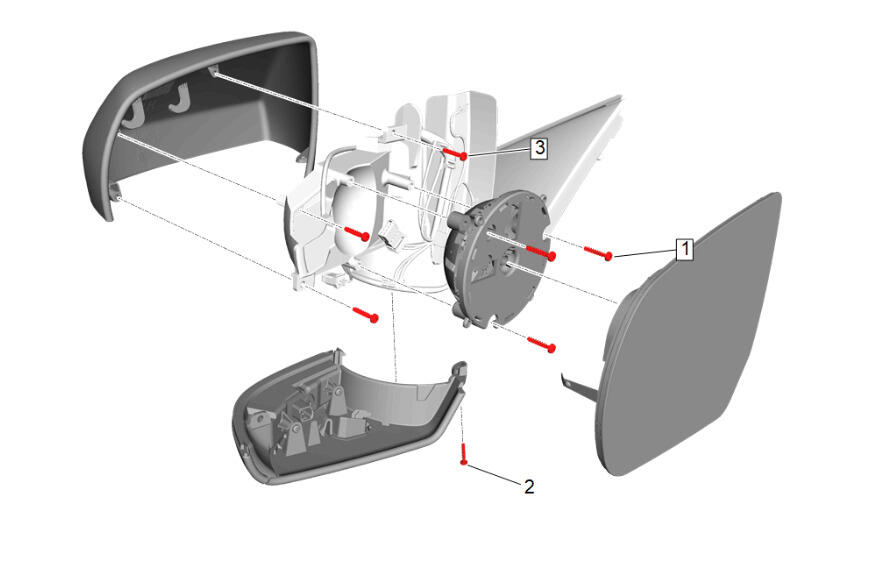

Outside Rearview Mirror Components (without DMB)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Actuator Screw [3x] | - | - | 0.9 N.m (8 lb in) | Outside Rearview Mirror Actuator Replacement (without DMB) |
| 2 | Outside Rearview Mirror Housing Lower Cover Screw | - | - | 0.9 N.m (8 lb in) | Outside Rearview Mirror Housing Lower Cover Replacement |
| 3 | Outside Rearview Mirror Housing Upper Cover Screw [3x] | - | - | 0.9 N.m (8 lb in) | Outside Rearview Mirror Housing Upper Cover Replacement (without DMB) |

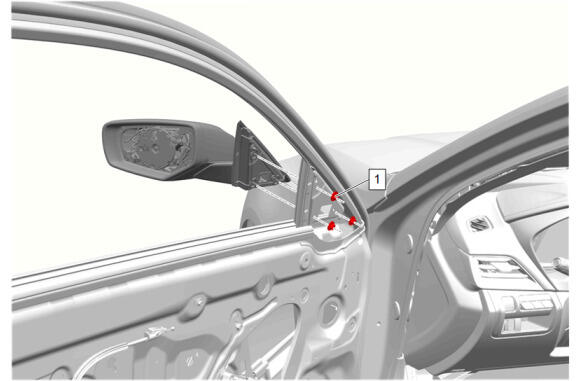

Outside Rearview Mirror Mounting (with DMB)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Nut [3x] | - | - | 9 N.m (80 lb in) | Outside Rearview Mirror Housing Replacement (with DMB) |

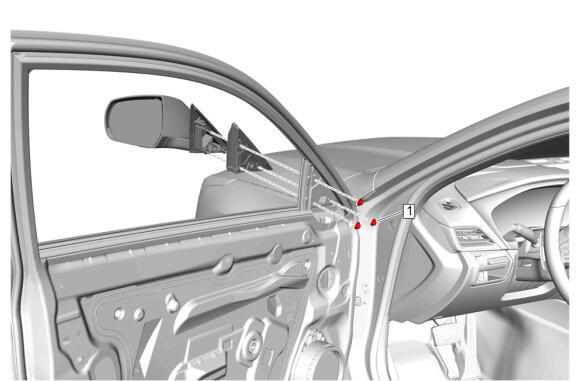

Outside Rearview Mirror Mounting (without DMB)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Nut [3x] | - | - | 9 N.m (80 lb in) | Outside Rearview Mirror Housing Replacement (without DMB) |
