Fastener Specifications

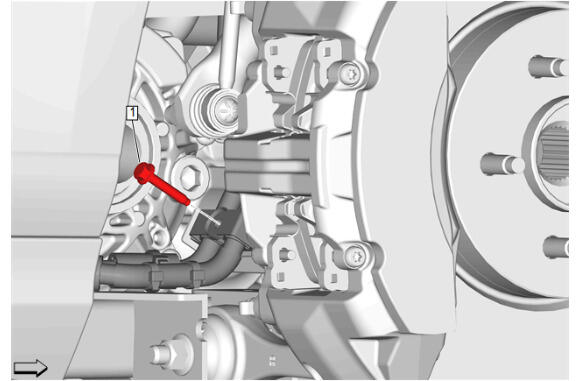

GM5492264Courtesy of GENERAL MOTORS COMPANY
L3B, AWD, Fastener @ Right Wheelhouse

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Clip Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)

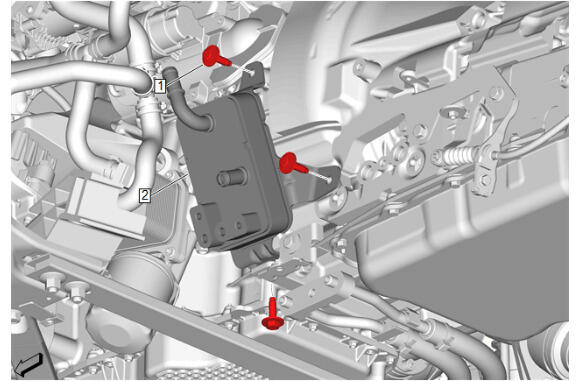

GM5485960Courtesy of GENERAL MOTORS COMPANY
L3B, AWD, Fasteners @ Automatic Transmission Fluid Cooling Exchanger

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Fluid Cooling Exchanger Bolt [3x] - - 22 N.m (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (L3B, AWD)

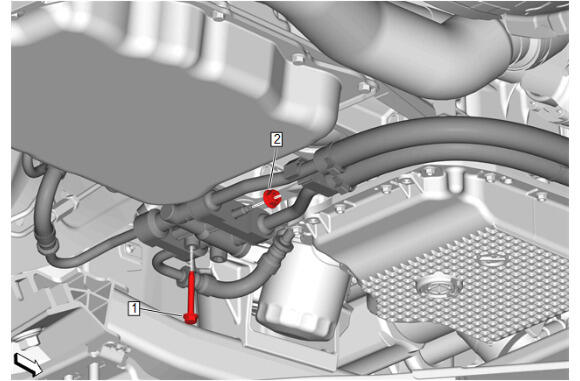

GM5493981Courtesy of GENERAL MOTORS COMPANY
L3B, AWD, Fasteners @ Transmission Cooler Bypass Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
2 Transmission Fluid Cooler Thermal Bypass Valve Bolt - - 9 N.m (80 lb in) Transmission Cooler Bypass Valve Replacement (L3B, AWD)

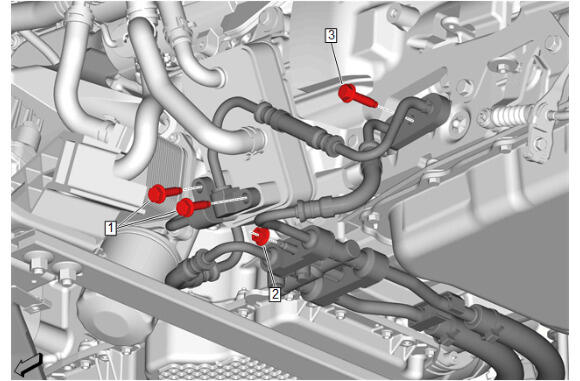

GM5493980Courtesy of GENERAL MOTORS COMPANY
L3B, AWD, Fasteners @ Transmission Side, Transmission Cooler Bypass Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Connector Bolt [2x] - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
2 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
3 Transmission Fluid Cooler Pipe Bolt - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)

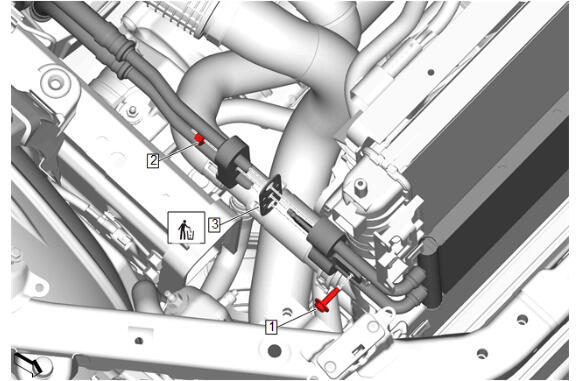

GM5427411Courtesy of GENERAL MOTORS COMPANY
L3B, AWD, Fasteners, Seal @ Transmission Fluid Auxiliary Cooler

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bracket Bolt - - 6 N.m (53 lb in) Transmission Fluid Auxiliary Cooler Replacement (LSY, RWD, with V03)
2 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
3 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)

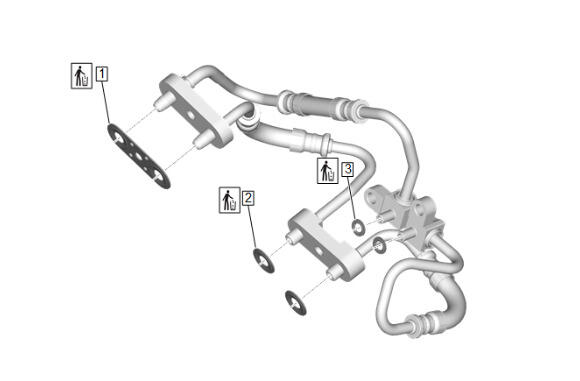

GM5485738Courtesy of GENERAL MOTORS COMPANY
L3B, AWD, Seals

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
2 Transmission Fluid Cooler Thermal Bypass Valve Gasket [2x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
3 Transmission Fluid Cooler Pipe Seal [2x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)

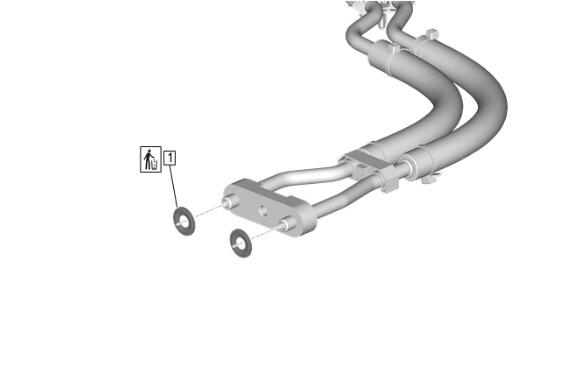

GM5494015Courtesy of GENERAL MOTORS COMPANY
L3B, AWD, Seals

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Thermal Bypass Valve Gasket [2x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)

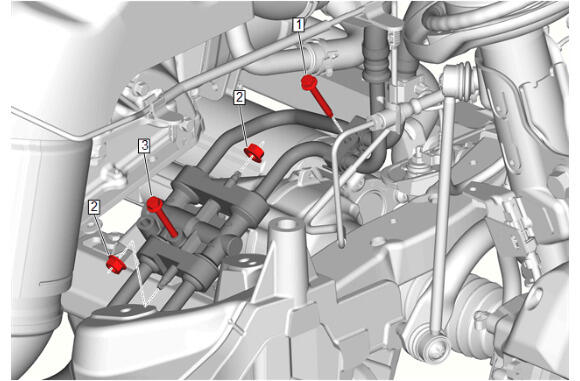

GM5484134Courtesy of GENERAL MOTORS COMPANY
L3B, RWD, Fasteners @ Transmission Cooler Bypass Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Clip Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
2 Transmission Fluid Cooler Pipe Nut [2x] - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
3 Transmission Fluid Cooler Thermal Bypass Valve Bolt - - 9 N.m (80 lb in) Transmission Cooler Bypass Valve Replacement (L3B, RWD)
GM5427411Courtesy of GENERAL MOTORS COMPANY
L3B, RWD, Fasteners, Seal @ Transmission Fluid Auxiliary Cooler

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bracket Bolt - - 6 N.m (53 lb in) Transmission Fluid Auxiliary Cooler Replacement (LSY, RWD, with V03)
2 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
3 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)

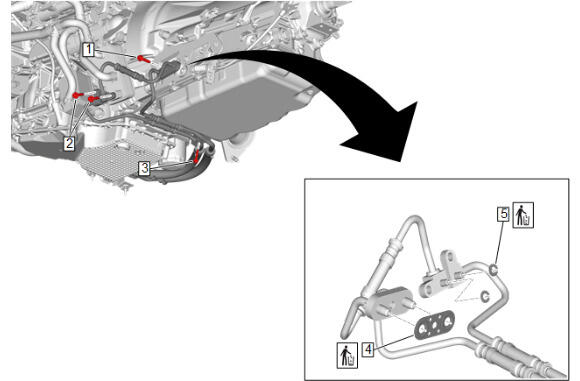

GM5484129Courtesy of GENERAL MOTORS COMPANY
L3B, RWD, Fasteners, Seal @ Transmission Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bolt - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
2 Transmission Fluid Cooler Pipe Connector Bolt [2x] - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
3 Transmission Fluid Cooler Pipe Clip Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
4 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
5 Transmission Fluid Cooler Pipe Seal [2x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)

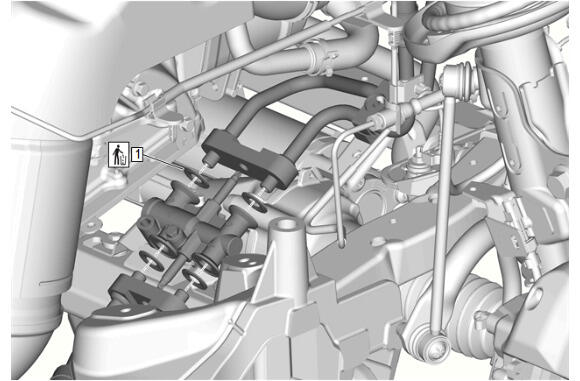

GM5484131Courtesy of GENERAL MOTORS COMPANY
L3B, RWD, Seals

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Seal [4x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)

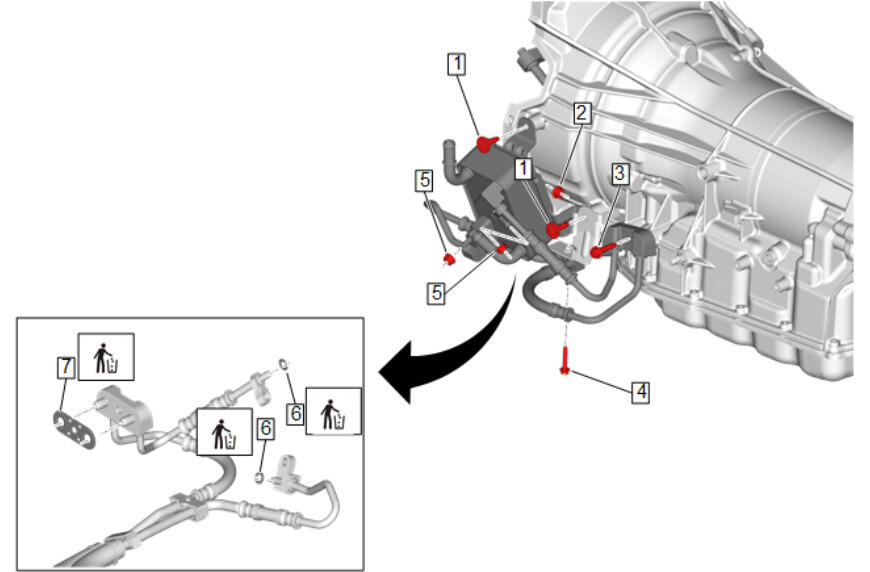

Fig 1: Identifying Fasteners & Seals At Automatic Transmission Fluid Cooling Exchanger - Transmission Side (LSY - RWD With V03)
GM5427408Courtesy of GENERAL MOTORS COMPANY
LSY, RWD, with V03, Fasteners @ Automatic Transmission Fluid Cooling Exchanger, Transmission Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Fluid Cooling Exchanger Bolt [2x] - - 22 N.m (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, with V03)
2 Transmission Fluid Auxiliary Cooler Bracket Nut   - 22 N.m (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, with V03)
3 Transmission Fluid Cooler Pipe Bolt   - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
4 Transmission Fluid Cooler Pipe Clip Bolt   - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
5 Transmission Fluid Cooler Pipe Nut [2x]   - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
6 Transmission Fluid Cooler Pipe Seal [2x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
7 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
GM5427411Courtesy of GENERAL MOTORS COMPANY
LSY, RWD, with V03, Fasteners, Seal @ Transmission Fluid Auxiliary Cooler

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bracket Bolt - - 6 N.m (53 lb in) Transmission Fluid Auxiliary Cooler Replacement (LSY, RWD, with V03)
2 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
3 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)

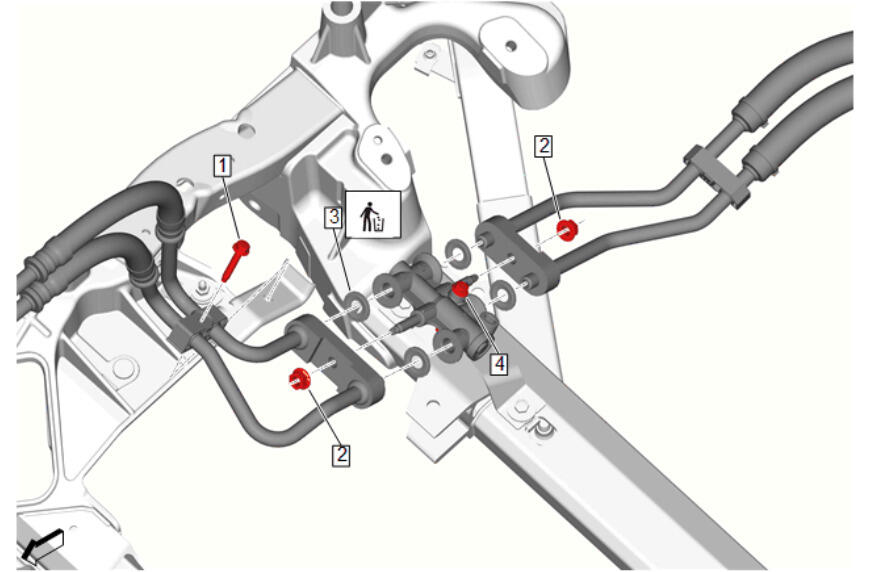

GM5427409Courtesy of GENERAL MOTORS COMPANY
LSY, RWD, with V03, Fasteners, Seals @ Transmission Cooler Bypass Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Clip Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
2 Transmission Fluid Cooler Pipe Nut [2x] - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
3 Transmission Fluid Cooler Thermal Bypass Valve Gasket [4x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
4 Transmission Fluid Cooler Thermal Bypass Valve Bolt - - 9 N.m (80 lb in) Transmission Cooler Bypass Valve Replacement (LSY, RWD, with V03)

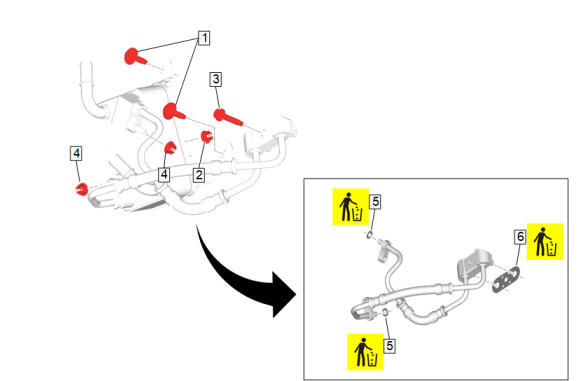

Fig 2: Identifying Fasteners & Seals At Automatic Transmission Fluid Cooling Exchanger - Transmission Side (LSY - RWD Without V03)
GM5415625Courtesy of GENERAL MOTORS COMPANY
LSY, RWD, without V03, Fasteners, Seals @ Automatic Transmission Fluid Cooling Exchanger, Transmission Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Auxiliary Cooler Bolt [2x] - - 22 N.m (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, without V03)
2 Transmission Fluid Auxiliary Cooler Nut - - 22 N.m (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, without V03)
3 Transmission Fluid Cooler Pipe Bolt - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03)
4 Transmission Fluid Cooler Pipe Nut [2x] - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03)
5 Transmission Fluid Cooler Pipe Seal [2x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03)
6 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03)
