Home >> Cadillac >> 2021 >> CT5 V, RWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Antilock Brake System >> Repair Instructions >> Vehicle Stability Control System Switch Replacement >> Installation Procedure

Installation Procedure

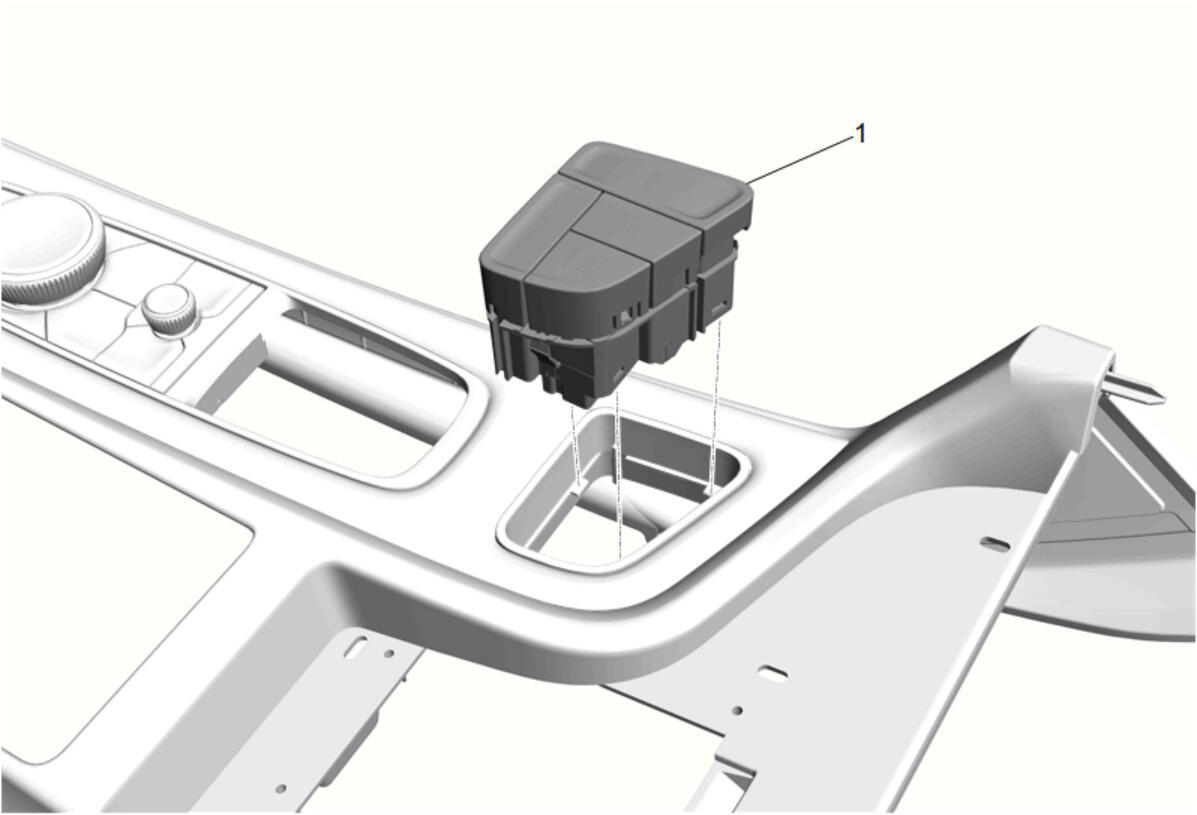

  1. GM5329051Courtesy of GENERAL MOTORS COMPANY

    Vehicle Stability Control System Switch (1) - Install

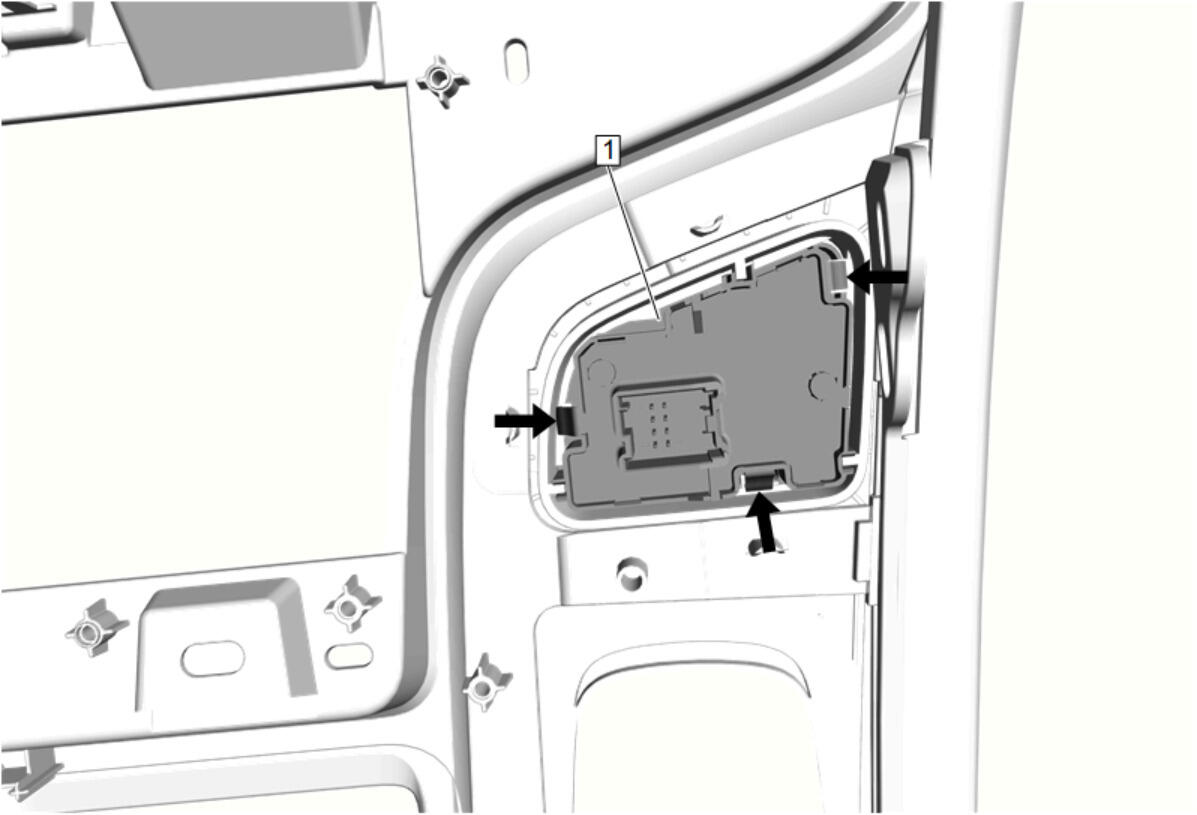

  2. GM5329052Courtesy of GENERAL MOTORS COMPANY

    Ensure the tabs are secured as indicated by the arrows at the vehicle stability control system switch (1).

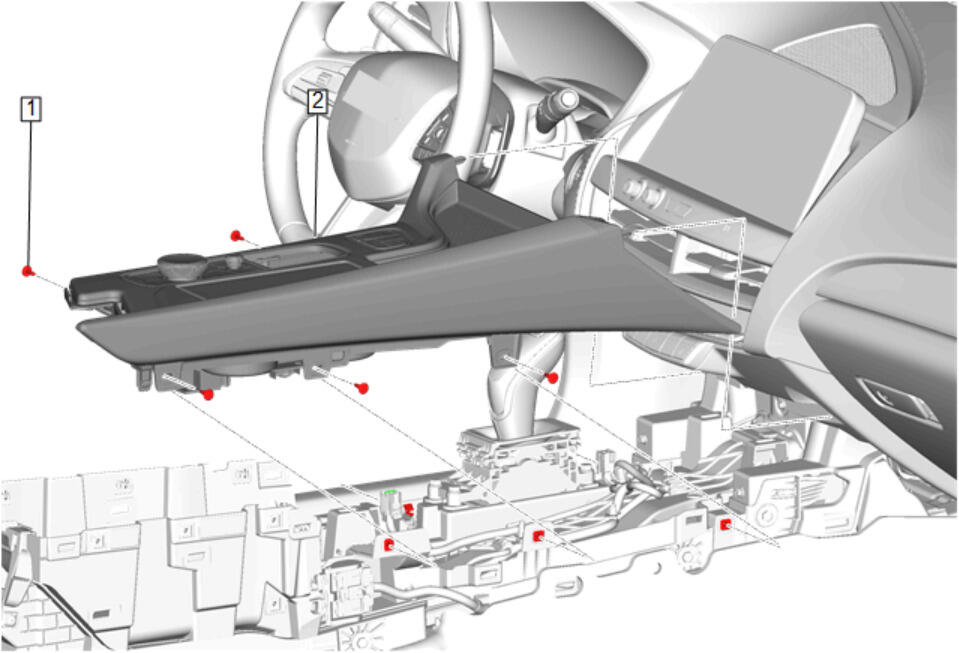

  3. GM5324500Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate (2) - Install - Front Floor Console Trim Plate Replacement
