Installation Procedure

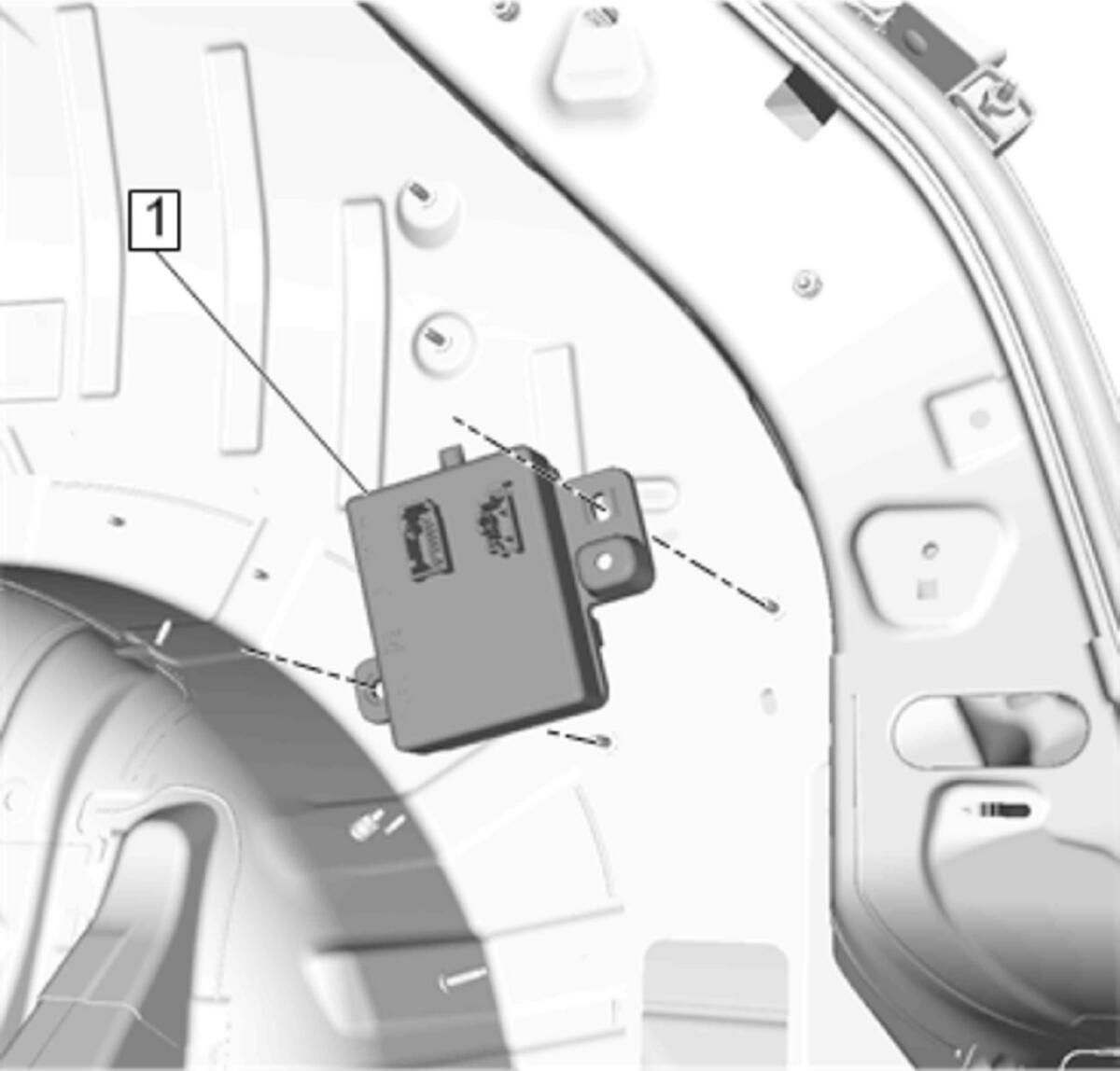

  1. GM4377362Courtesy of GENERAL MOTORS COMPANY

    Trailer Lamp Control Module (1) - Install

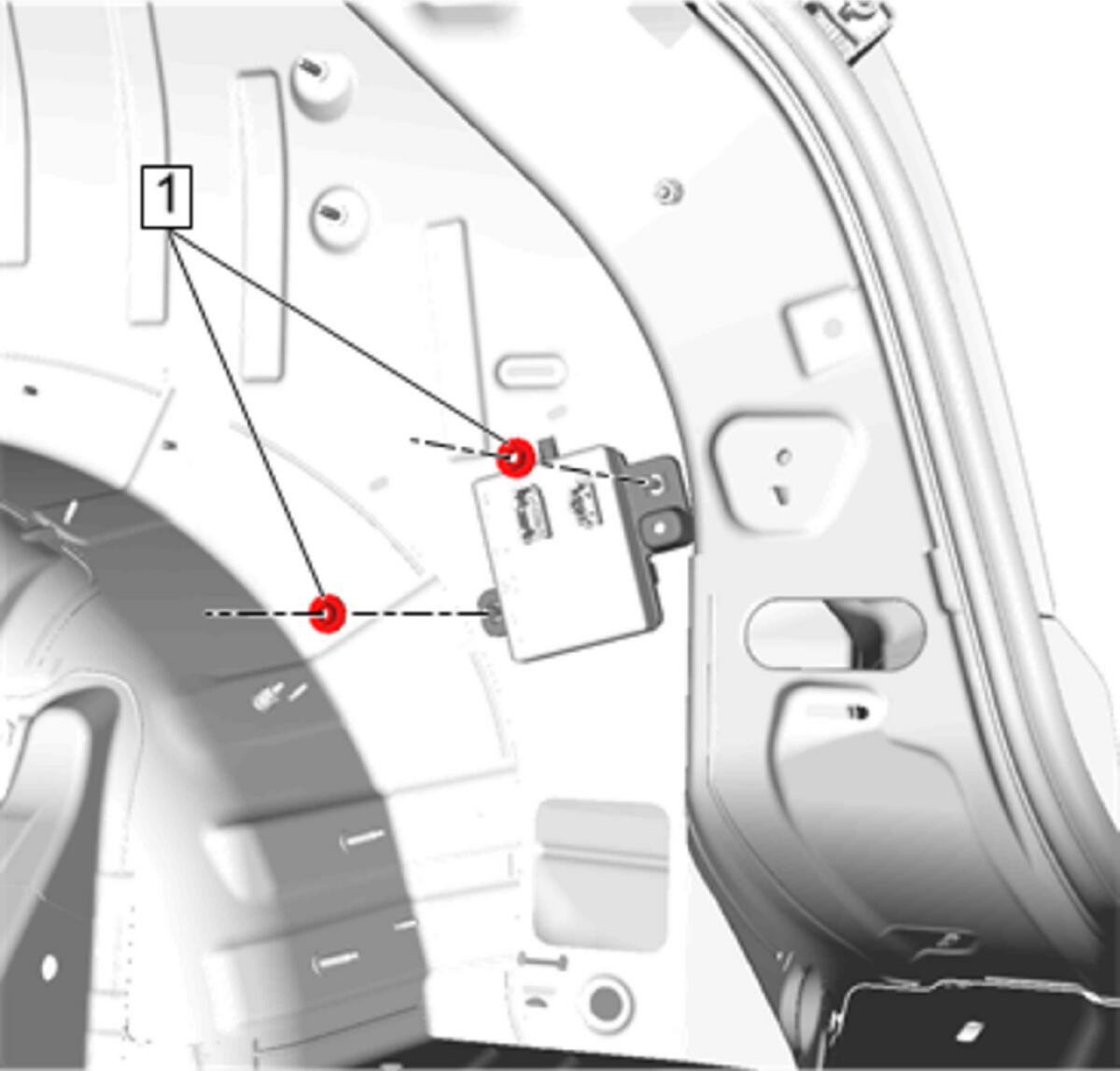

  2. GM4377354Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Trailer Lamp Control Module Nut (1) - Install and tighten 9 N.m (80 lb in) [ 2x ]

  3. Connect the trailer lamp control module electrical connector.

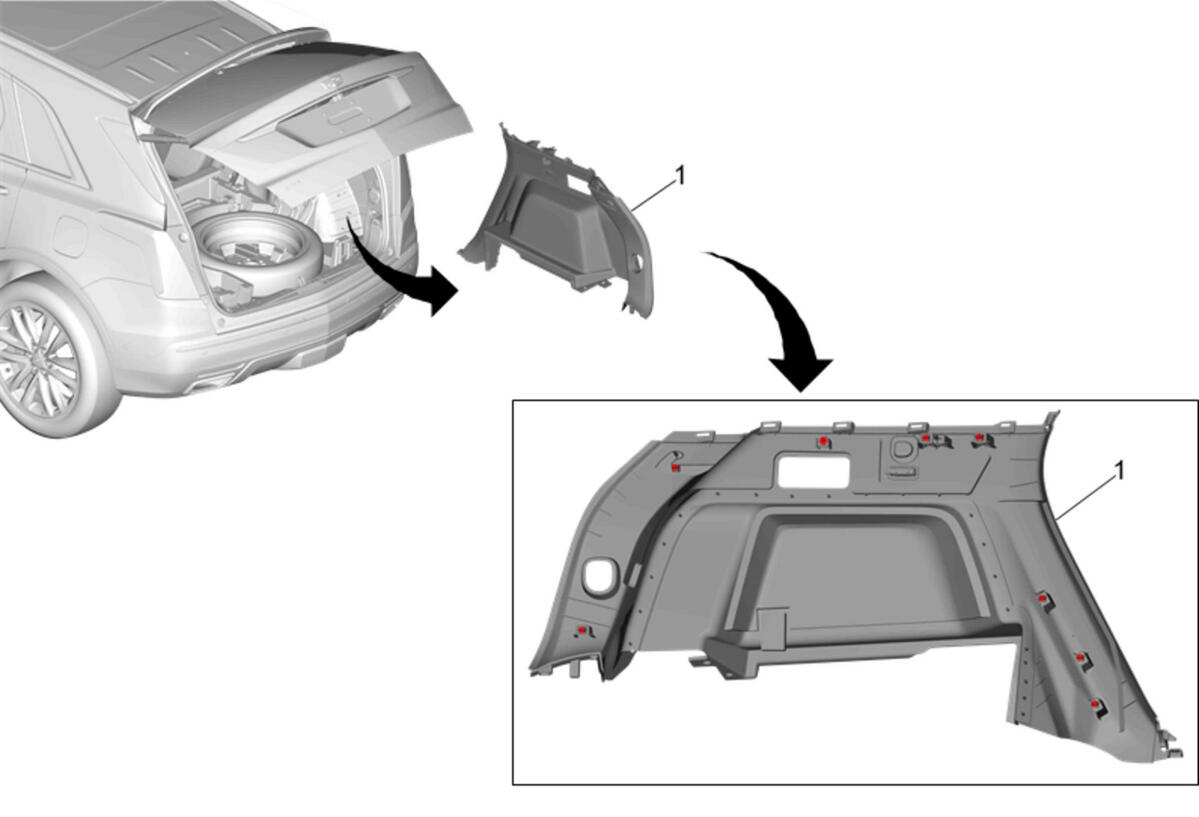

  4. GM4298054Courtesy of GENERAL MOTORS COMPANY

    Quarter Lower Rear Trim Panel Right Side (1) - Install - Quarter Lower Rear Trim Panel Replacement (Right Side) , or Quarter Lower Rear Trim Panel Replacement (Left Side)

  5. Program the trailer lamp control module. Control Module References
