Vehicle Stability Control System Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

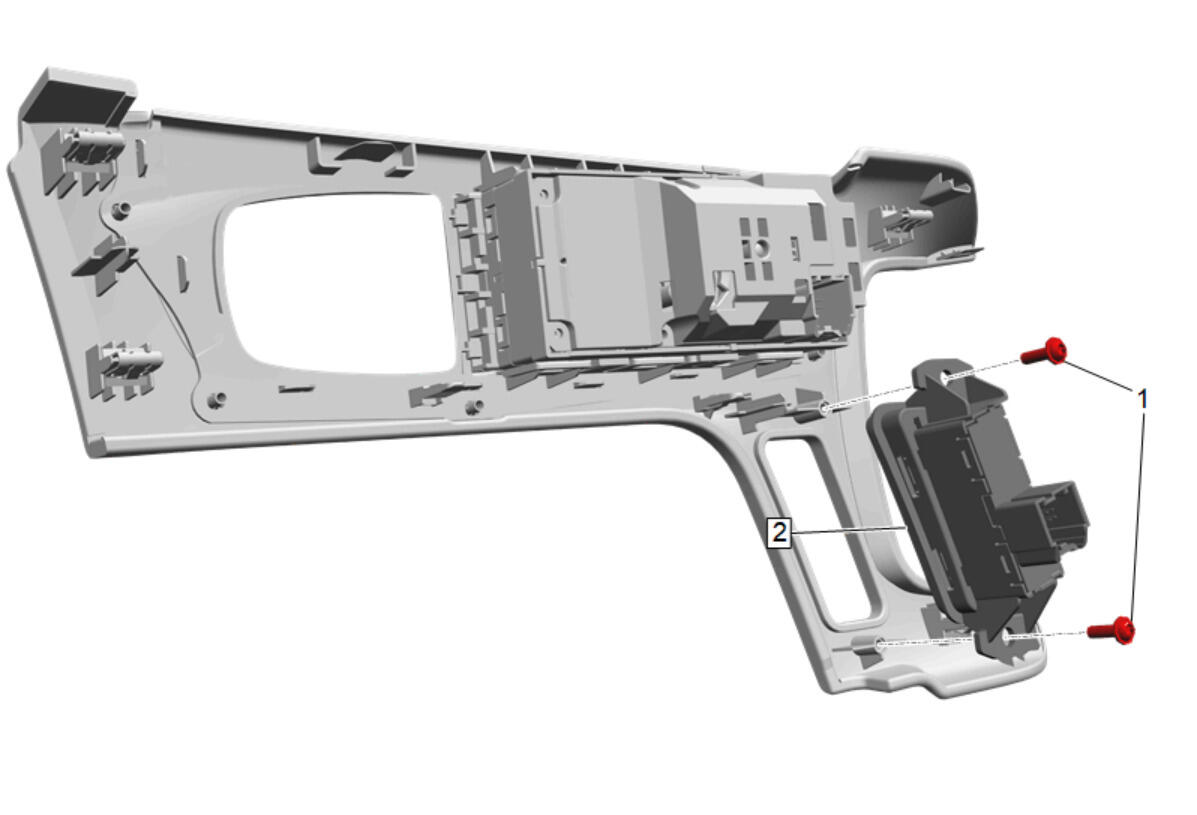

Callout	Component Name
Preliminary Procedure  Front Floor Console Trim Plate Replacement
1	Auxiliary Multifunction Switch Bolt [2x] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Vehicle Stability Control System Switch
