Installation Procedure

  1. GM5580460Courtesy of GENERAL MOTORS COMPANY

    Remote Function Actuator Module (1) - Install

  2. Secure the retaining tab.
  3. Connect the electrical connector.

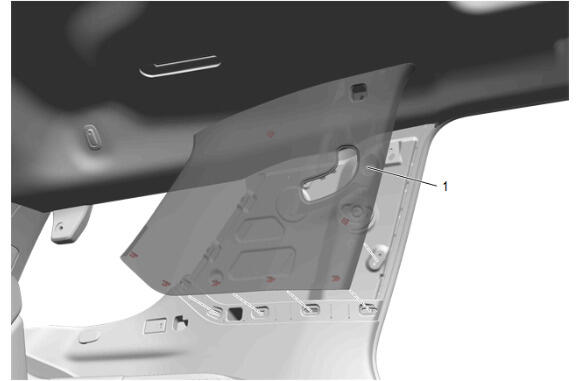

  4. GM5609084Courtesy of GENERAL MOTORS COMPANY

    Body Lock Pillar Upper Trim Panel (1) - Install

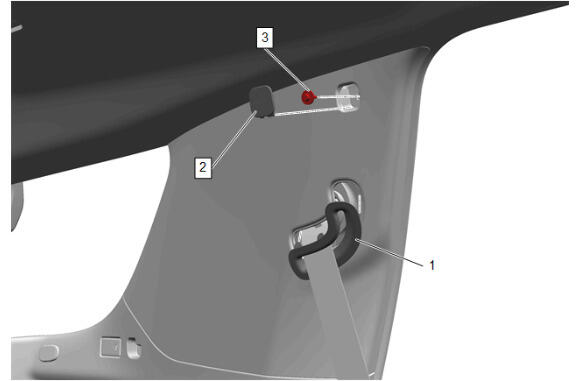

  5. GM5609077Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Quarter Window Trim Finish Panel Bolt (3) - Install and tighten - Fastener Specifications

  6. Quarter Window Trim Finish Panel Bolt Cap (2) - Install
  7. Enable the SIR System. SIR Disabling and Enabling
