Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

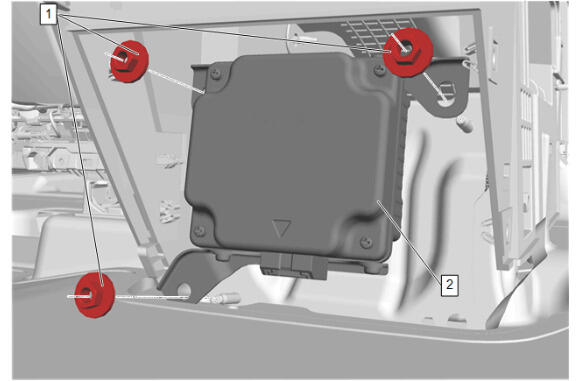

DC/AC Converter Control Module (2) - Install

CAUTION:

Accessory AC and DC Power Control Module Nut (1) - Install and tighten [3x] - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

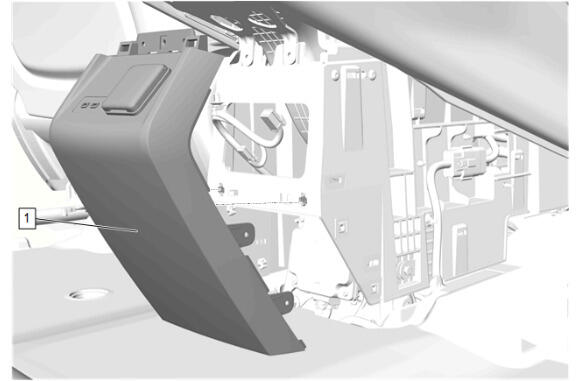

Front Floor Console Rear Trim Lower Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

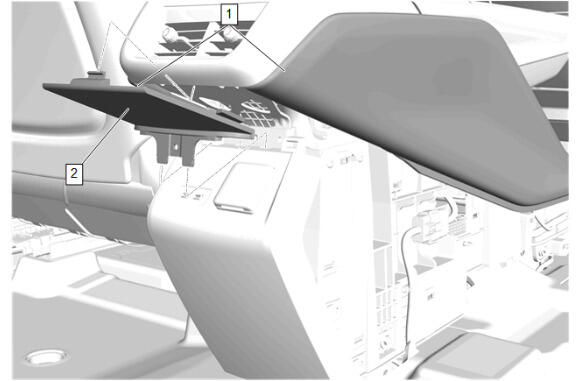

Front Floor Console Rear Trim Lower Panel Closeout (2) - Install
Install the right and left front floor console upper panel (1).
Courtesy of GENERAL MOTORS COMPANY

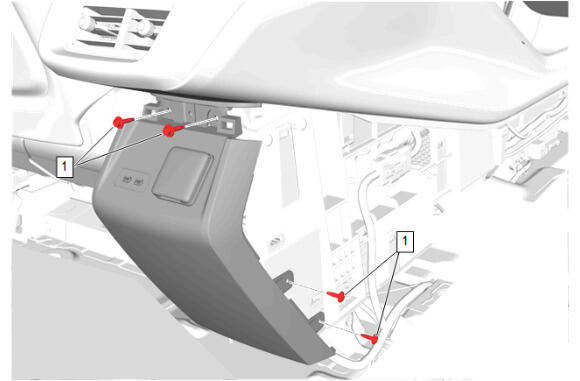

Front Floor Console Rear Cover Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

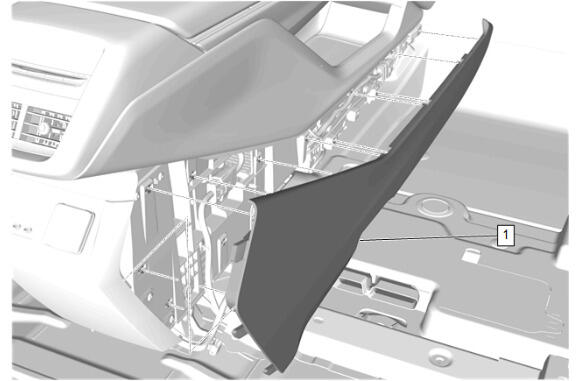

Front Floor Console Extension Panel - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

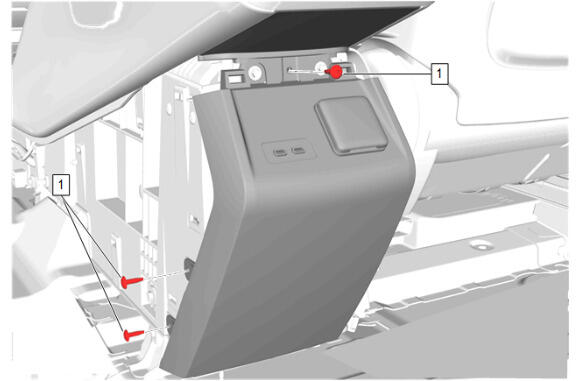

Front Floor Console Rear Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

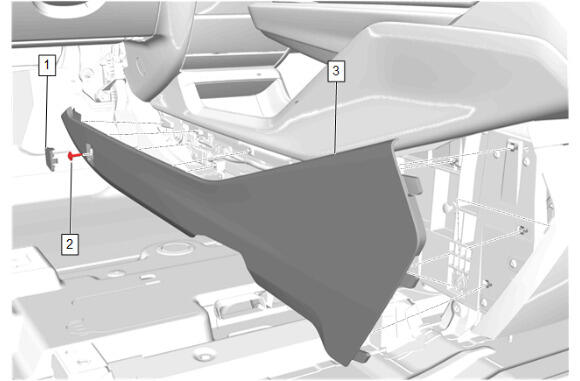

Front Floor Console Extension Panel - Left Side (3) - Install
Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

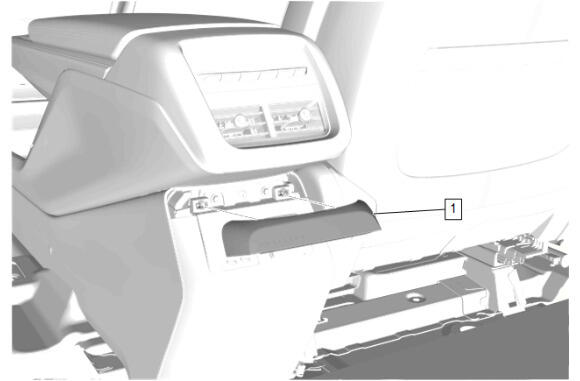

Front Floor Console Rear Trim Plate (1) - Install
