Installation Procedure

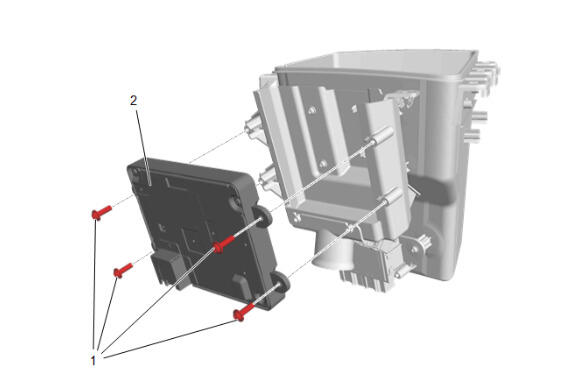

  1. GM5963574Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Connect the electrical connector.

  2. Wireless Accessory Charging Module (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Wireless Charging System Module Bolt (1) - Install and tighten [4x] - Fastener Specifications

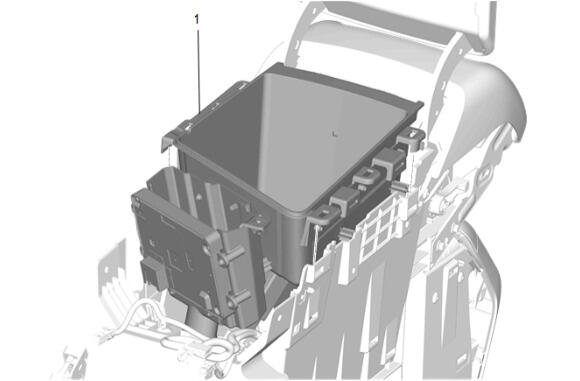

  4. GM5992692Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment (1) - Install

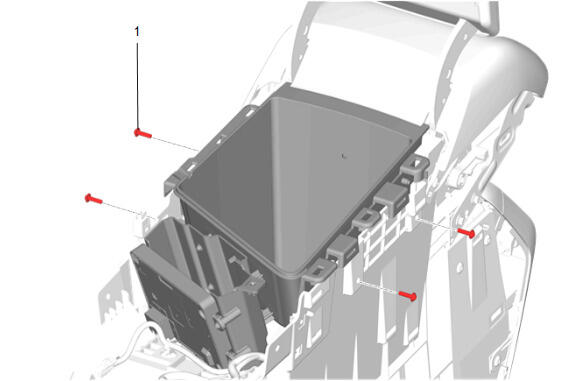

  5. GM5992690Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications

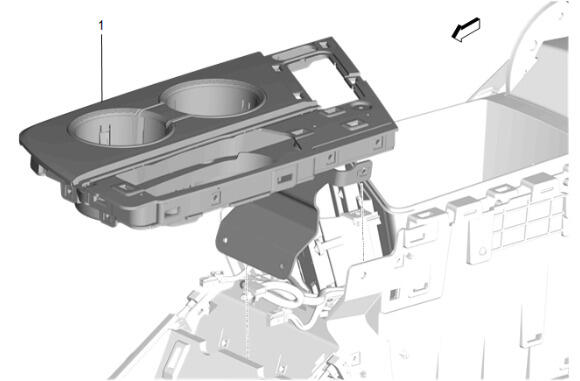

  6. GM5992470Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  7. Front Floor Console Cup Holder (1) - Install

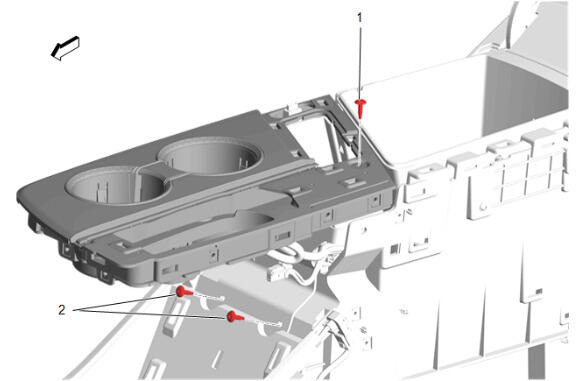

  8. GM5992469Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Bolt (1) - Install and tighten - Fastener Specifications

  9. Front Floor Console Intermediate Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications

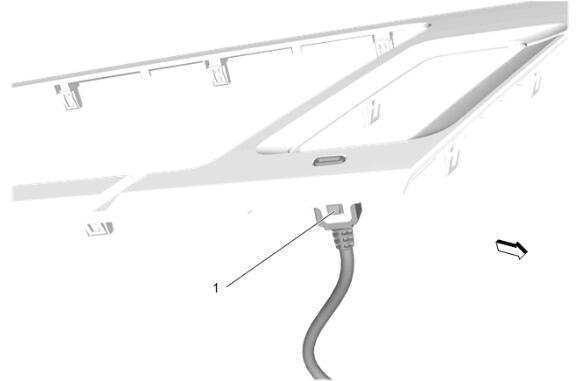

  10. GM5989831Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Connect the audio player and USB receptacle tabs (1) to the front floor console accessory switch mount plate.

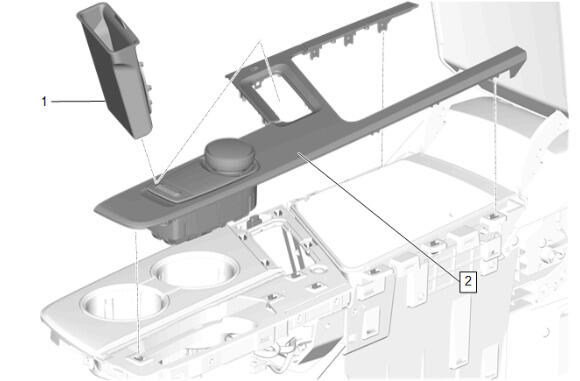

  11. GM5989832Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Accessory Switch Mount Plate (2) - Install

  12. Front Floor Console Variable 1 Liner (1) - Install

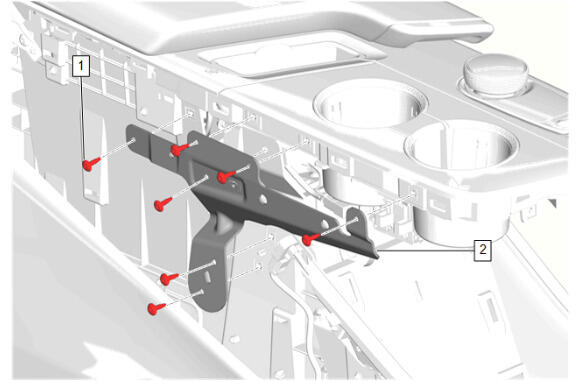

  13. GM5990033Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Intermediate Bracket- Right Side (2) - Install

  14. Front Floor Console Front Bracket Bolt (1) - Install and tighten [7x] - Fastener Specifications

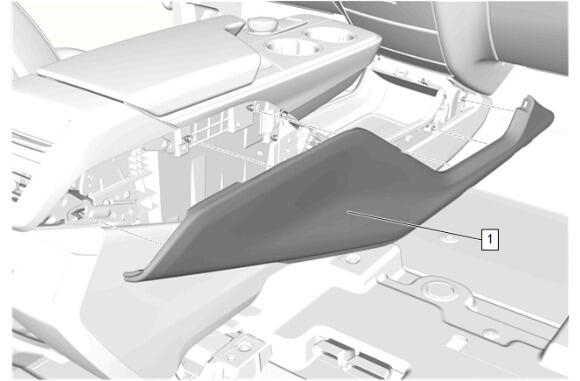

  15. GM5980639Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Upper Panel- Right Side (1) - Install

  16. GM5940749Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install

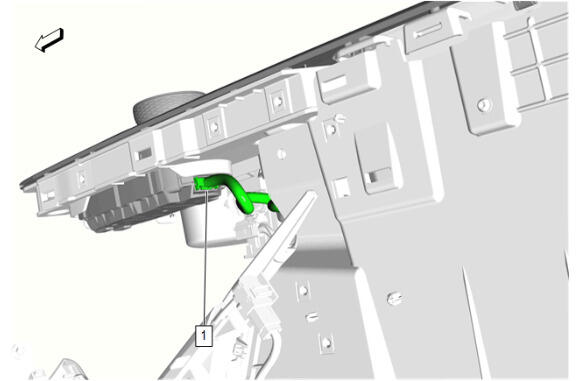

  17. GM5989830Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

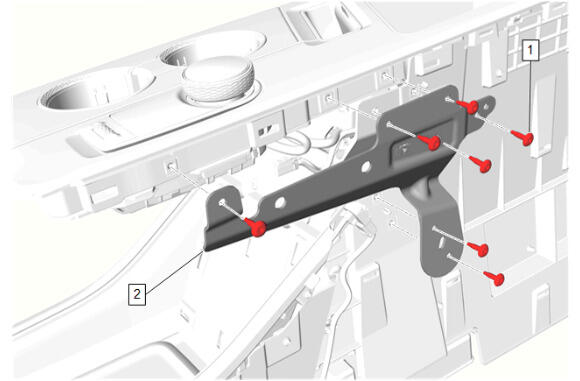

  18. GM5989780Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Intermediate Bracket- Left Side (2) - Install

  19. Front Floor Console Front Bracket Bolt (1) - Install and tighten [7x] - Fastener Specifications

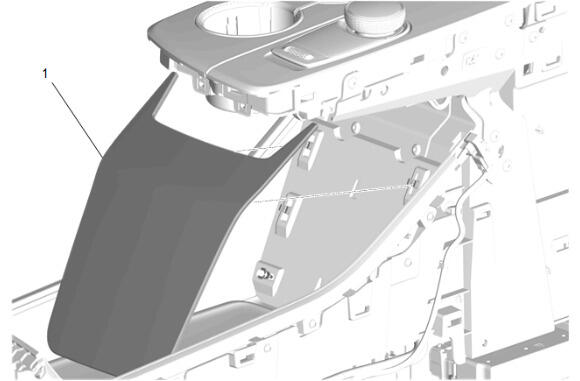

  20. GM5990028Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Upper Panel Closeout (1) - Install

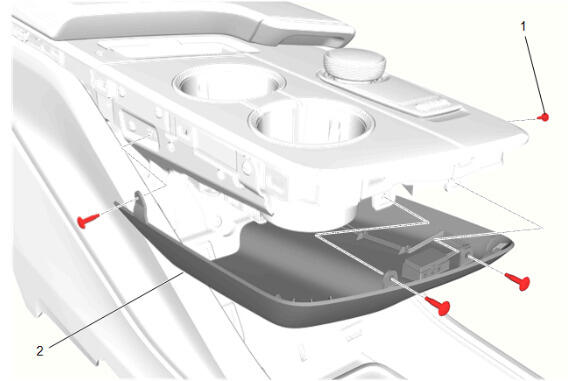

  21. GM5989248Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  22. Front Floor Console Upper Panel (2) - Install
  23. Front Floor Console Cover Bolt (1) - Install and tighten [4x] - Fastener Specifications

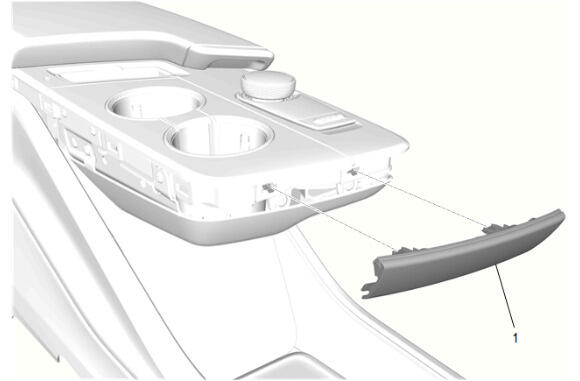

  24. GM5989245Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

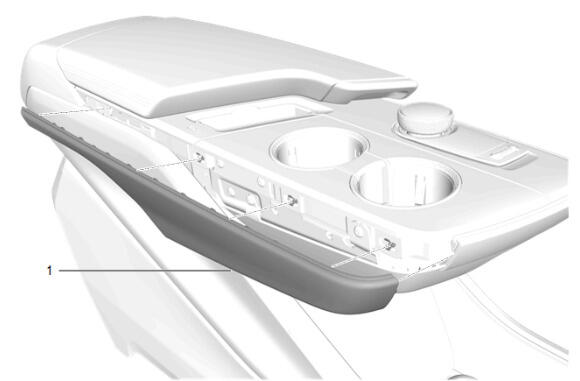

  25. GM5989197Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique - Right Side (1) - Install

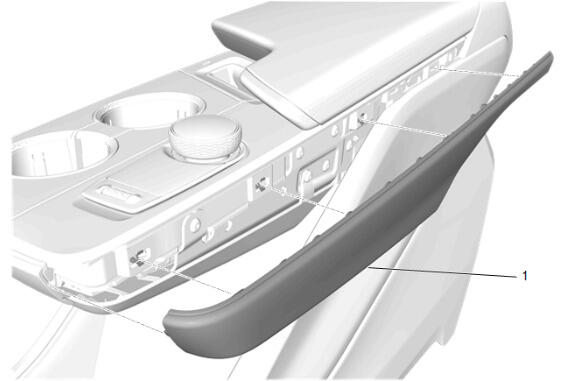

  26. GM5989195Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique - Left Side (1) - Install

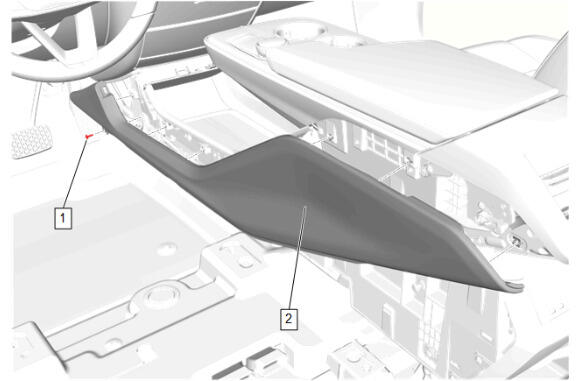

  27. GM5981245Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Upper Panel- Left Side (2) - Install

  28. Front Floor Console Extension Panel Bolt (1) - Install and tighten - Fastener Specifications

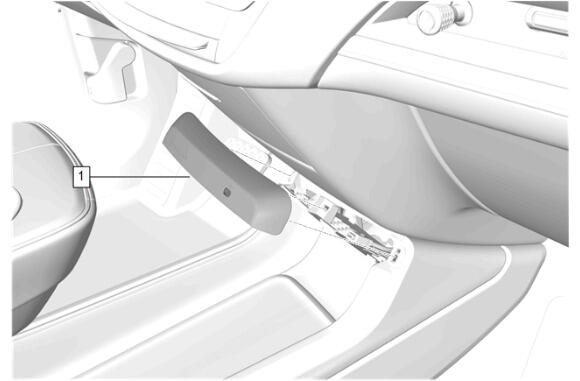

  29. GM5940643Courtesy of GENERAL MOTORS COMPANY

    {If equipped} Connect the multimedia receptacle to the front floor console accessory trim plate (1).

  30. Front Floor Console Accessory Trim Plate (1) - Install
  31. GM5941387Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Extension Panel - Left Side (3) - Install

  32. Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
  33. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
  34. Perform the necessary programming and setup procedure:Control Module References .
