Float Level

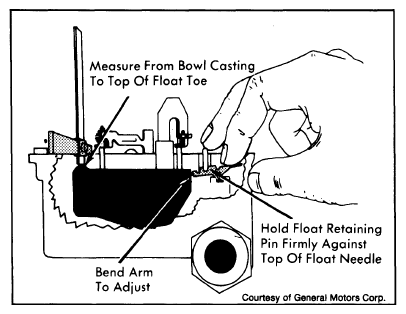

- Remove air horn. Hold float pin firmly in place. Push down on end of float arm against top of float needle. See Fig 1.
- With gasket removed, use a depth or "T" scale to measure distance from top of casting to index point at toe of float.
- If adjustment is needed, gently bend float arm up or down. Do not force needle against needle seat.
