HITACHI Regulator: Application

Model Hitachi No.
Datsun
  620 Pickup, 280Z & F10 TLIZ-85B
  All Others TLIZ-82B
Chevrolet LUV TLIZ-87
Subaru TLIZ-90

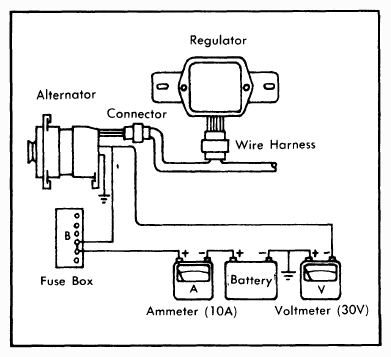

Fig 1: Test Connections for Voltage Regulator
G09334906Courtesy of NOT AVAILABLE
