Ignition System Trouble Shooting

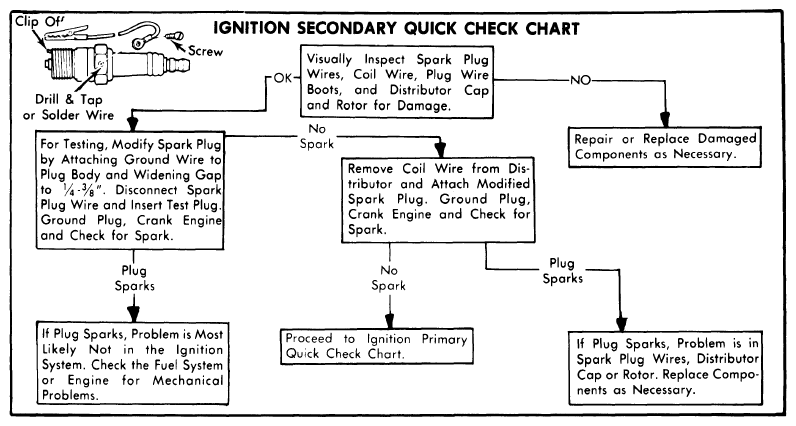

Fig 1: Ignition Secondary Quick Check Chart

G09360817

Courtesy of GENERAL MOTORS COMPANY

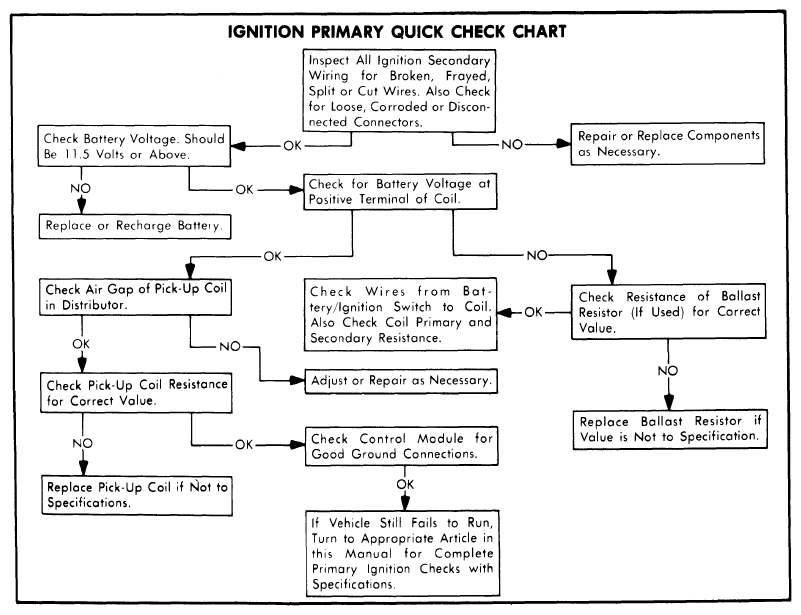

Fig 2: Ignition Primary Quick Check Chart

G09360818

Courtesy of GENERAL MOTORS COMPANY
