Home >> Chevrolet >> 1985 >> Corvette Automatic >> Repair and Diagnosis >> Engine Performance >> System >> 2.8L/5.0L/5.7L PFI Tests >> Component Locations

Component Locations

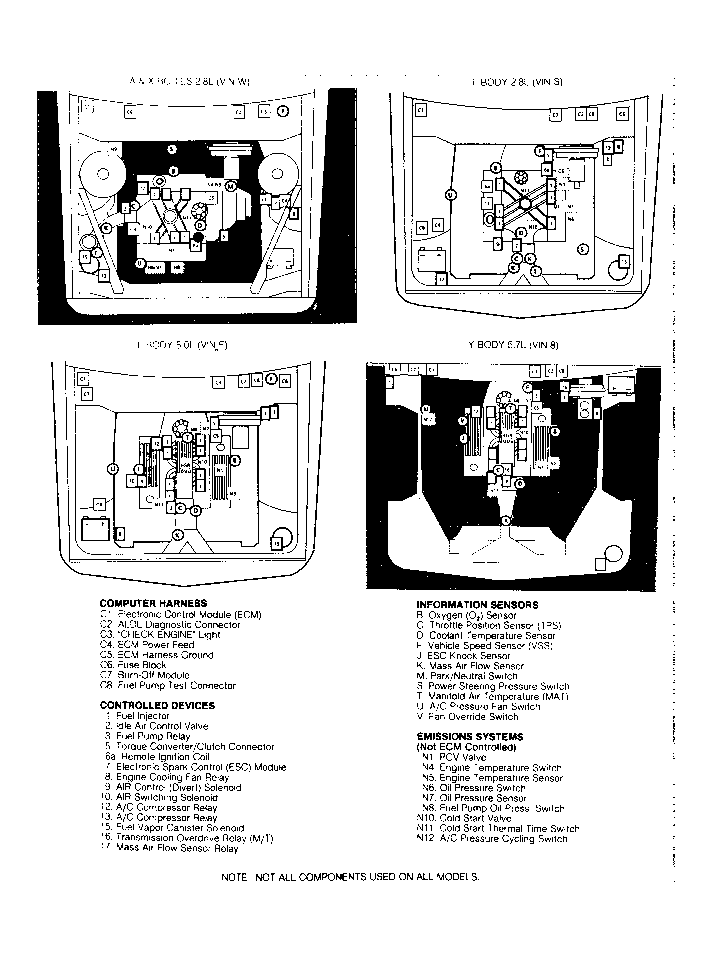

Fig 1: Component Location for 2.8L, 5.0L & 5.7L Engines

G3048
