Terminal Identification

Fig 1: Full Function ECM Terminal Identification 2.8L (VIN X)

Fig 2: Full Function ECM Terminal Identification 3.0L (VIN E)

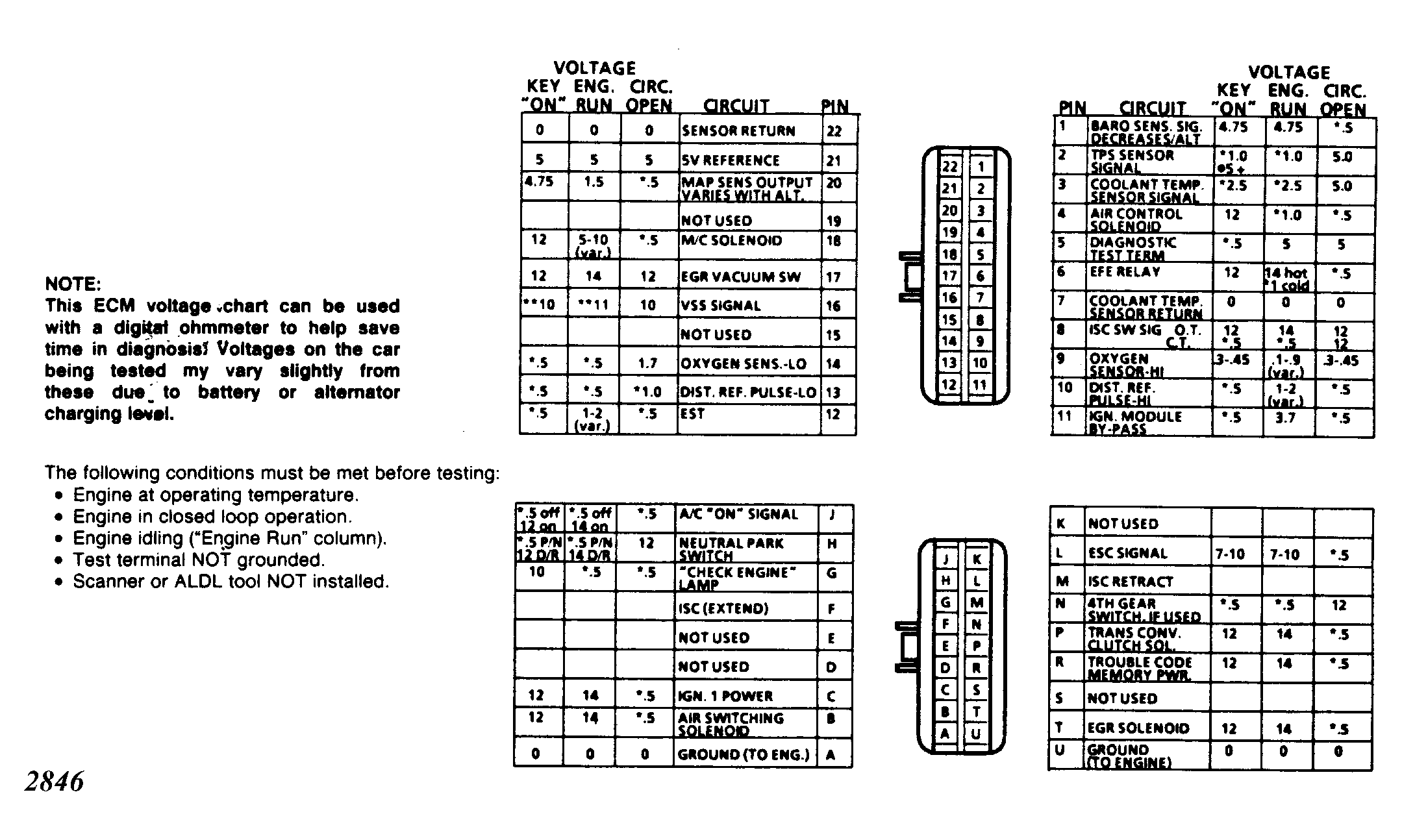

Fig 3: Full Function Terminal Identification 3.8L (VIN A)

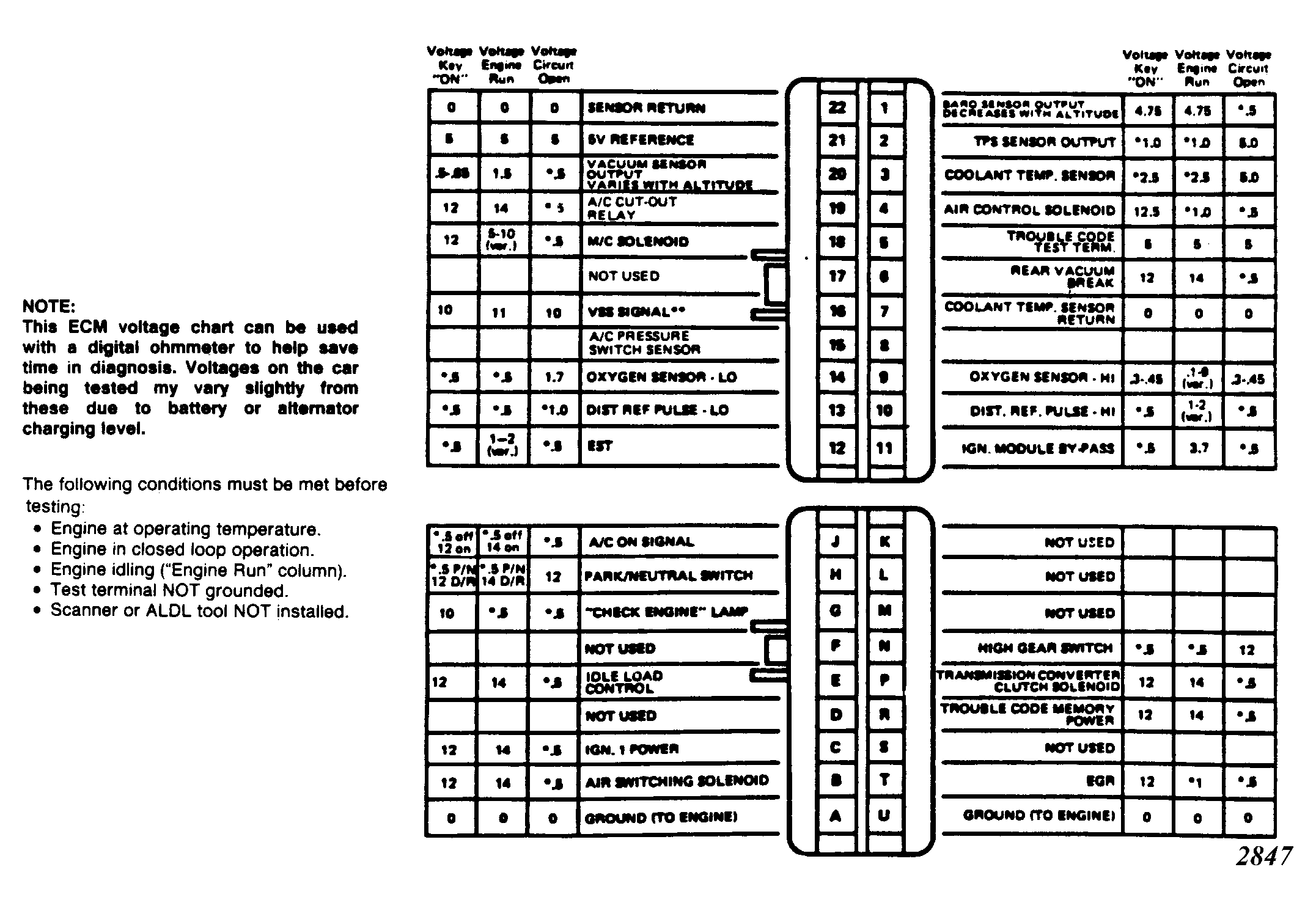

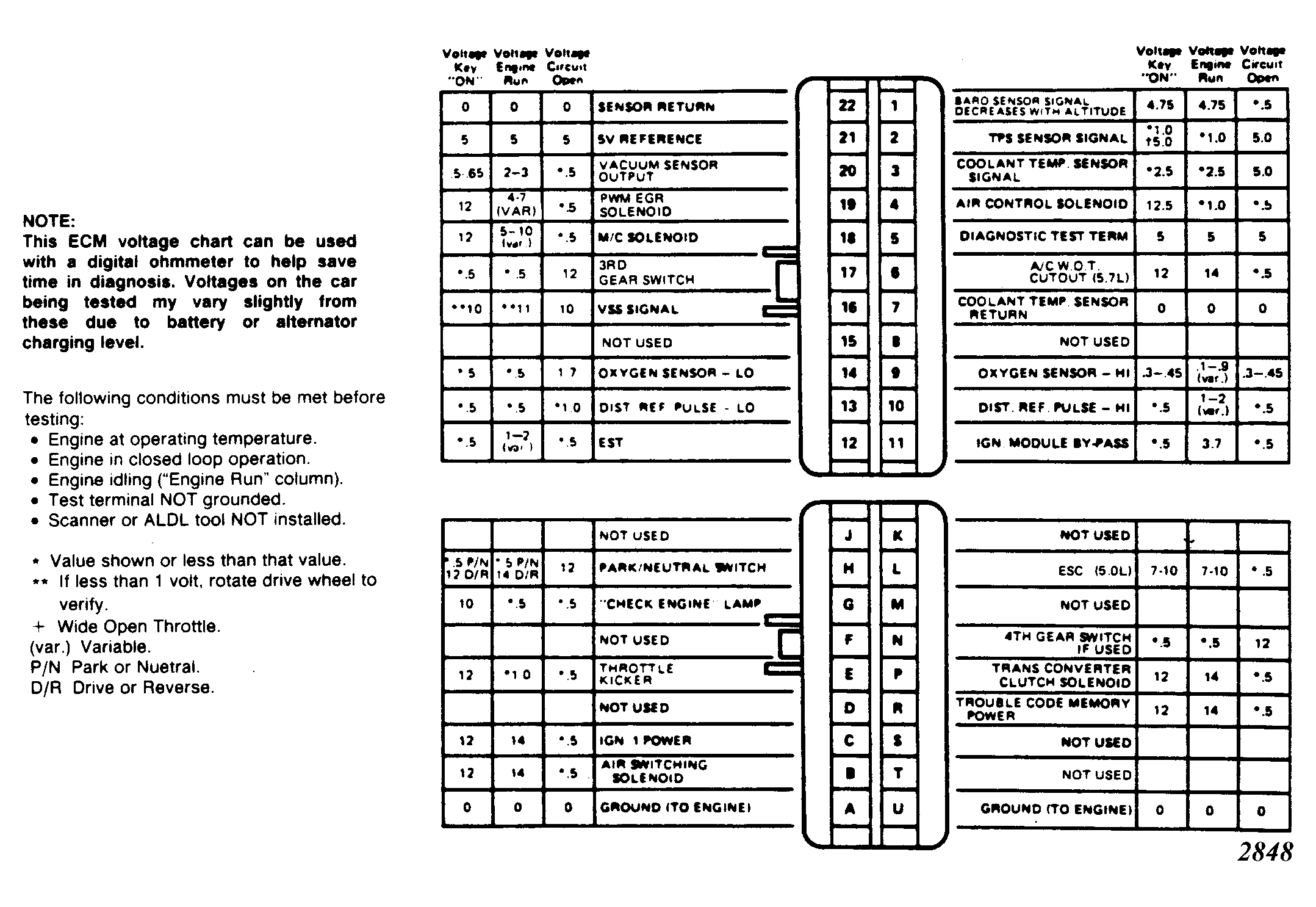

Fig 4: Full Function Terminal Identification 5.0 (VIN G)

Fig 5: Full Function Terminal Identification 5.0 (VIN H) & 5.7L
