Tank Pressure Control Valve

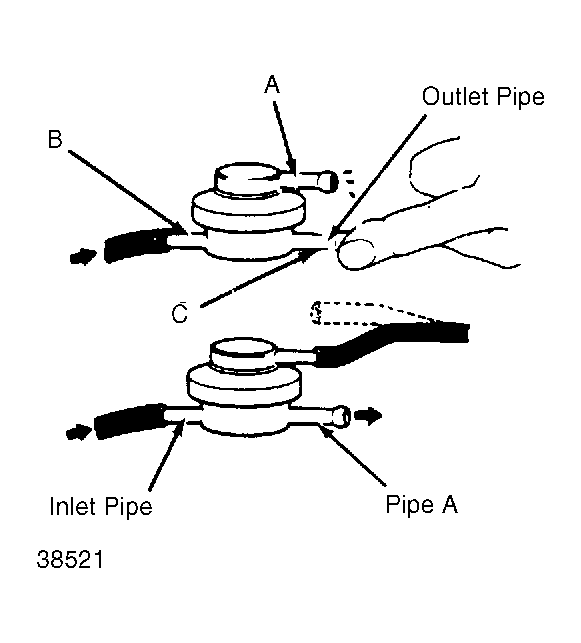

Remove rubber hoses. Apply vacuum to pipe "A". See Figure . Blow into pipe "B", and check if valve is open. With pipe "C" capped, apply pressure to pipe "B". Check that air does not pass through.
