Servicing - A/T: Adjustments: Spectrum: Notes

Shift Control Cable

Loosen adjustment nuts at control rod link. With transaxle in Neutral detent, place selector lever in "N". Rotate link assembly clockwise to remove slack in cable. Tighten rear adjustment nut until it makes contact with link, then tighten front adjustment nut until it makes contact with link. See Fig 1 .

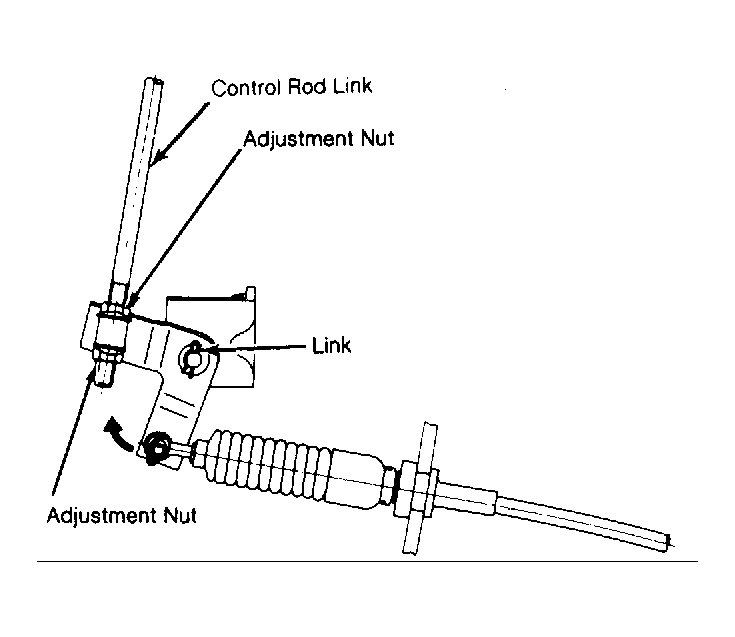

Fig 1: Adjusting Spectrum Shift Control Cable
G82799
