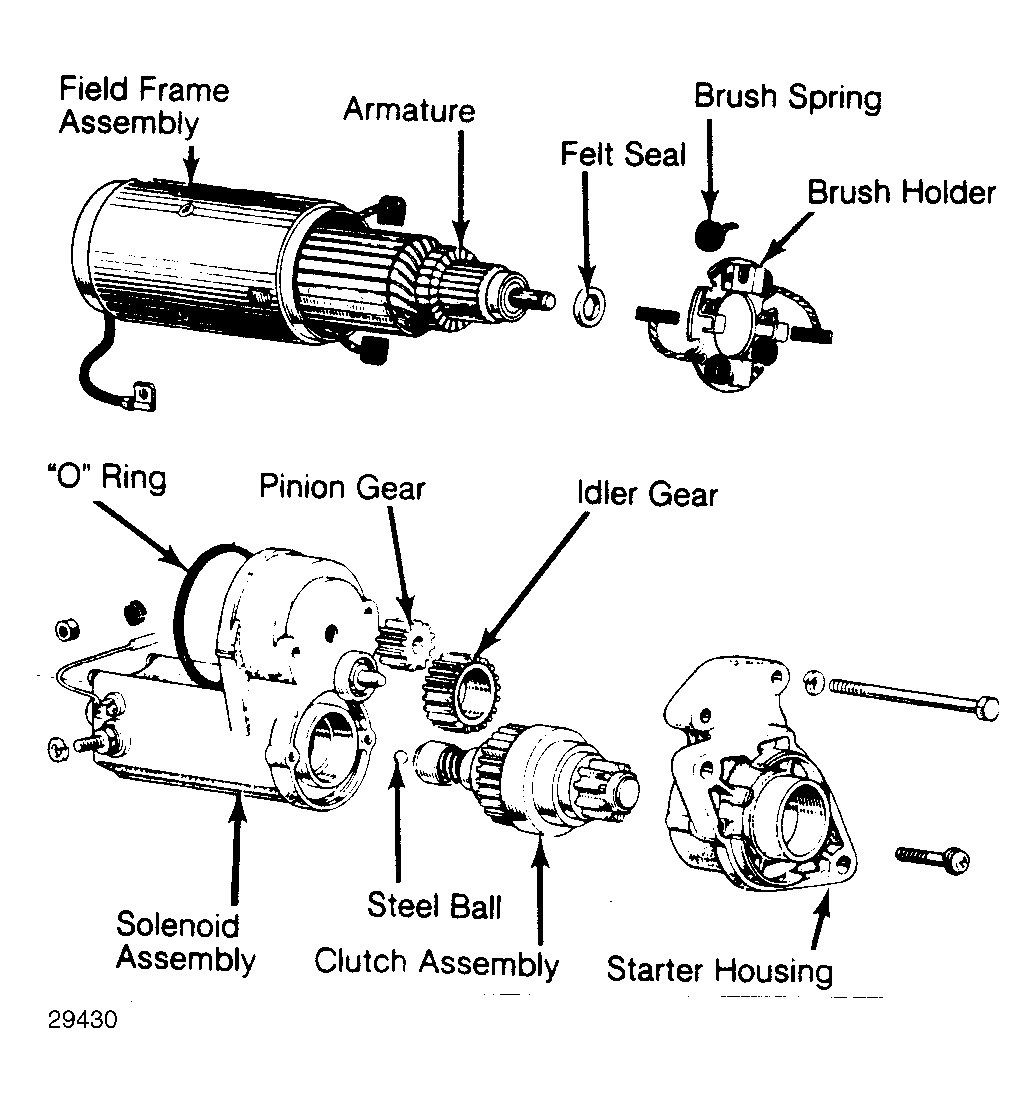

Repair and Diagnosis: Electrical: Starter: Overhaul: Reassembly
To reassemble, reverse disassembly procedure and note the following: Coat all sliding or moving surfaces of shaft splines, bushings and solenoid with multi-purpose grease. Apply molybdenum disulfide grease to clutch assembly cavity to retain steel ball.
