Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|
| A/C-Heater Blower Resistor | In blower housing near motor. | |
| ALDL Connector | Under left side of dashboard. | |
| Circuit Breakers | ||
| Power Accelerator | In fuse block. | |
| Power Window | In fuse block. | |

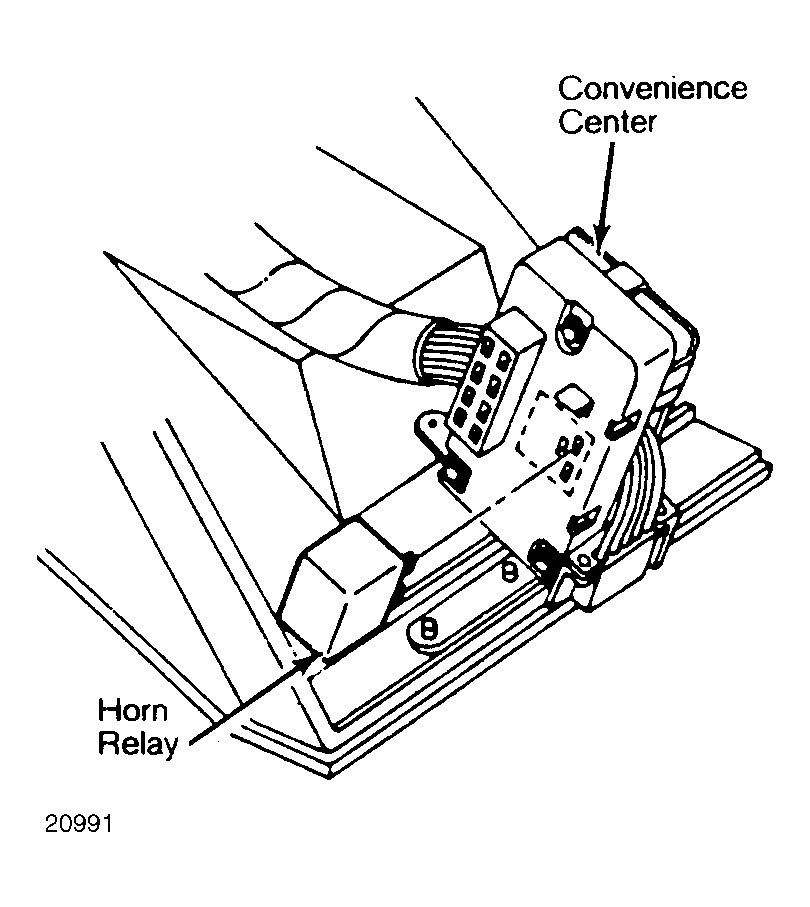

| Convenience Center | Under dashboard to left of steering column. See Figure & 2. | |
| Diagnostic Dwell Meter Connector | In wiring harness at right front corner of engine. | |
| Engine Block Heater (4.3L) | In freeze plug hole on left side of block. | |
| Fuel Pump Prime Connector (2.5L) | In wiring harness on left side of firewall behind battery. | |
| Fuel Pump Prime Connector (4.3L) | In wiring harness near fuel pump relay. | |
| Fuse Block | Under left side of dashboard. | |
