With Tachometer

Measure resistance between "IG" and "TU" terminals. Resistance should be about 96.1 ohms. Measure resistance between "TU" and "GND" terminals. Resistance should be about 101 ohms. See Fig 1 .

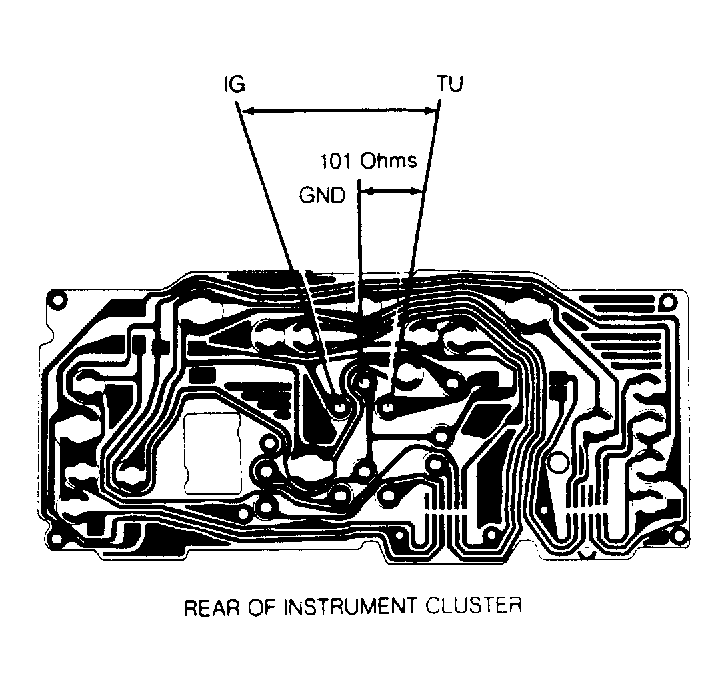

Fig 1: Checking Temperature Gauge
G64895
