Pull-In Test

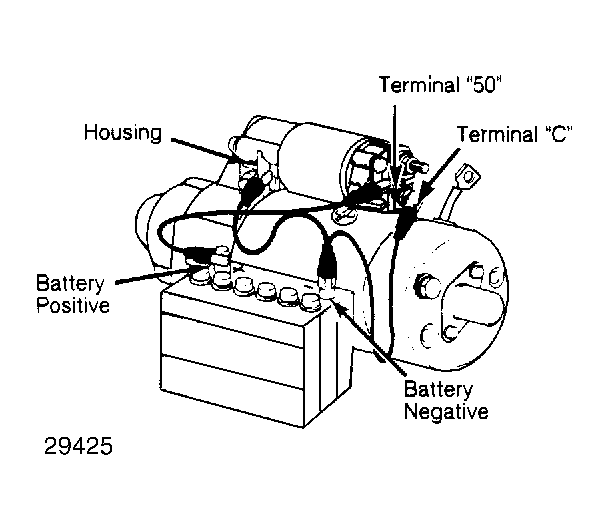

Connect test leads to starter. See Figure. Connect negative leads to starter housing and "C" terminal. Battery positive lead is connected to terminal "50". If starter pinion gear does not move out, replace solenoid.
Connect test leads to starter. See Figure. Connect negative leads to starter housing and "C" terminal. Battery positive lead is connected to terminal "50". If starter pinion gear does not move out, replace solenoid.
