Tune-Up - 4-CYL: Adjustments: Distributor

All models use transistorized electronic ignition system. Reluctor-to-pick-up air gap is the only adjustment. Measure air gap with a non-magnetic feeler gauge and move pick-up piece if necessary to correct air gap.

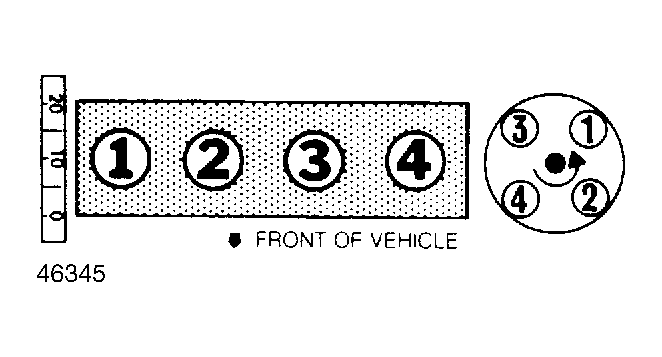

Fig 1: Firing Order & Distributor Rotation
