Ignition Module Test: Sprint

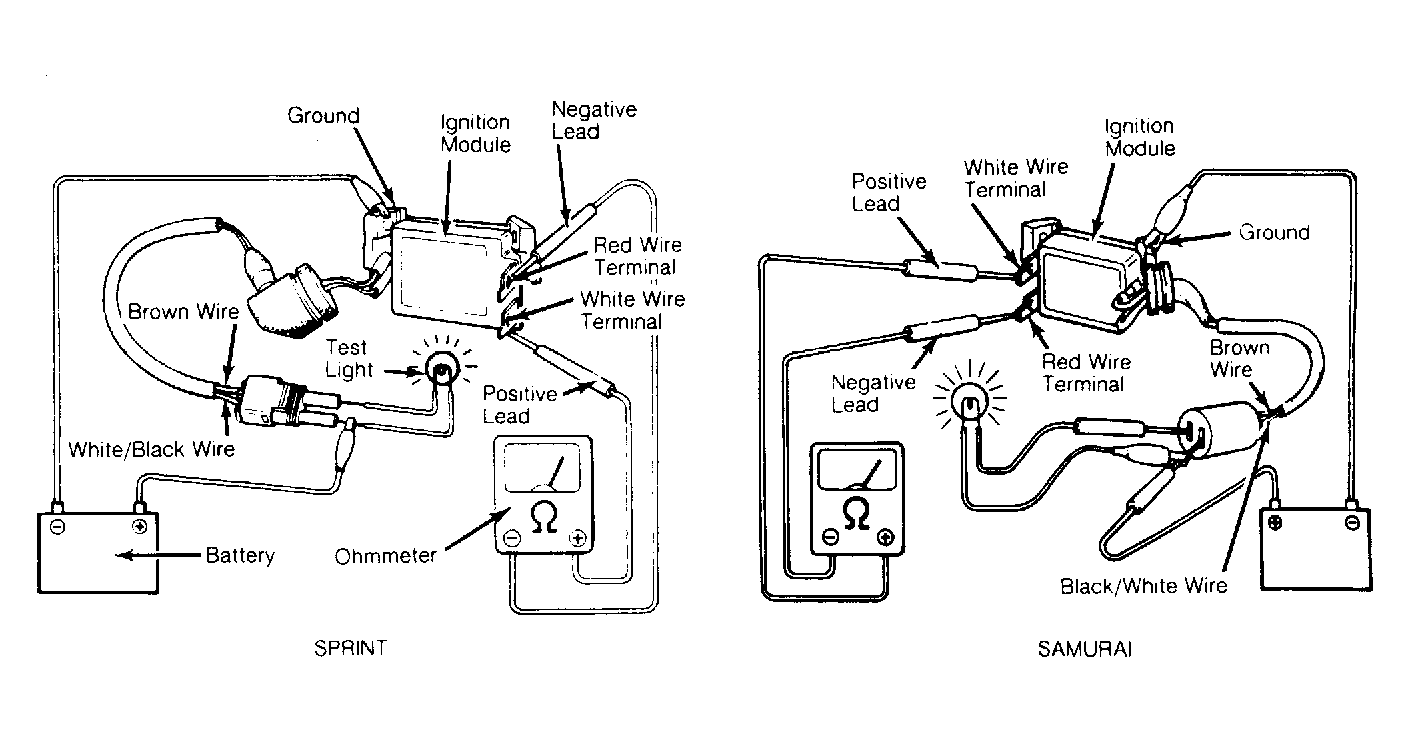

- Remove distributor cap and dust cover. Disconnect Red and White wires from ignition module. Connect ohmmeter, test light, and 12-volt battery to ignition module. See Fig 1.
- Connect ohmmeter negative lead to Red wire terminal and positive lead to White wire terminal. Test light should glow, indicating that module is okay. If not, replace ignition module.
