System Diagrams: ACURA

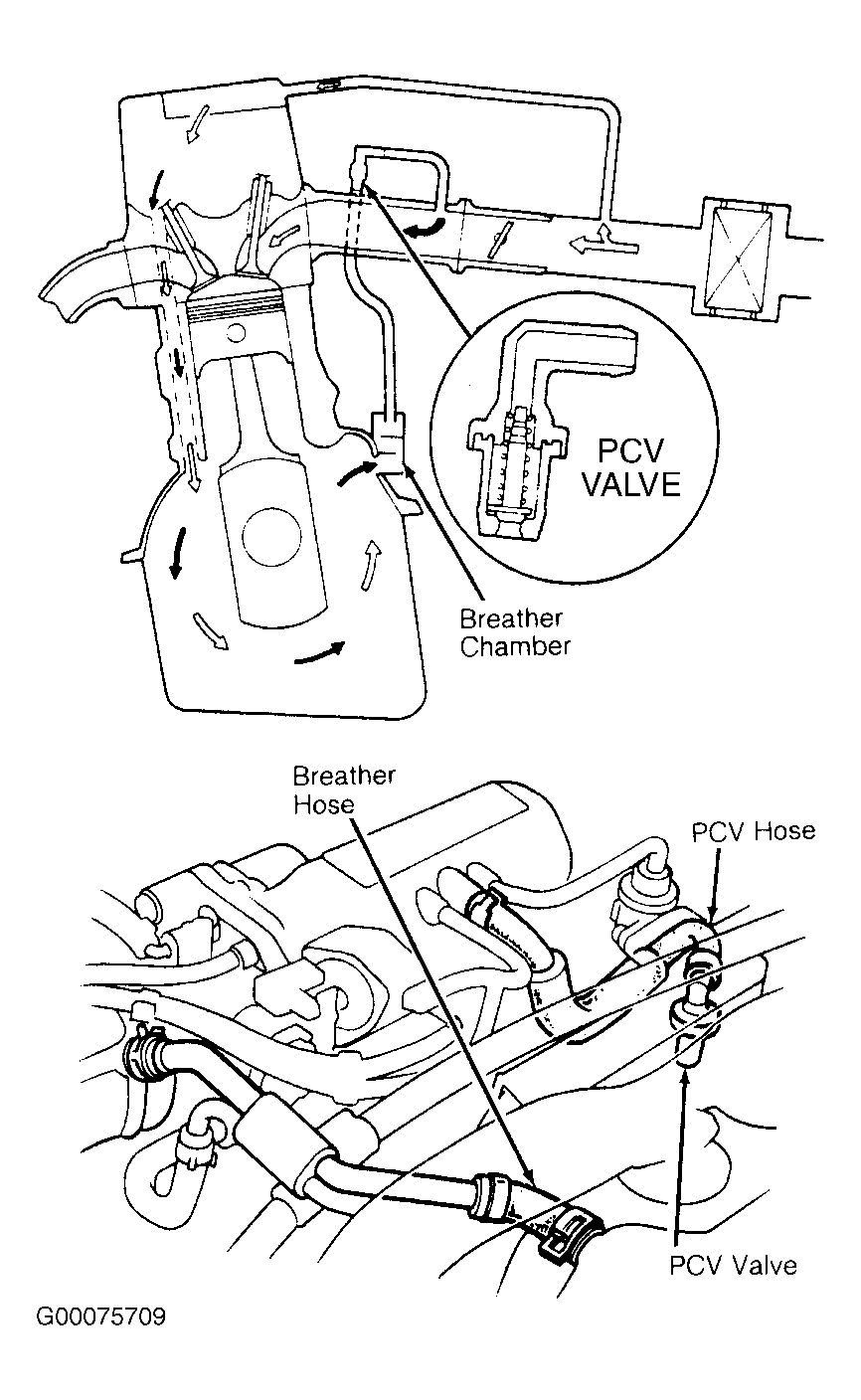

Fig 1: Crankcase Ventilation System (Acura - Integra)
G00075709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

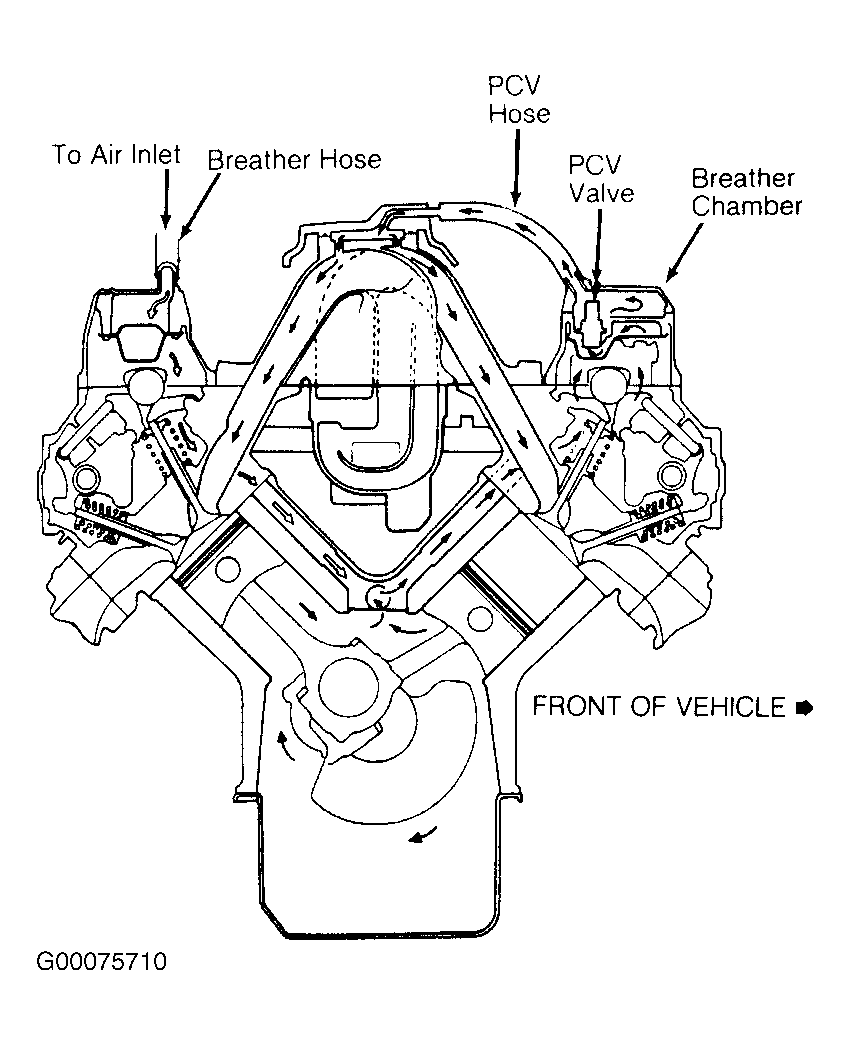

Fig 2: Crankcase Ventilation System (Acura - Legend & Sterling - 825)
G00075710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
