Crankcase Ventilation
>>
System Diagrams
>>
General Motors
General Motors

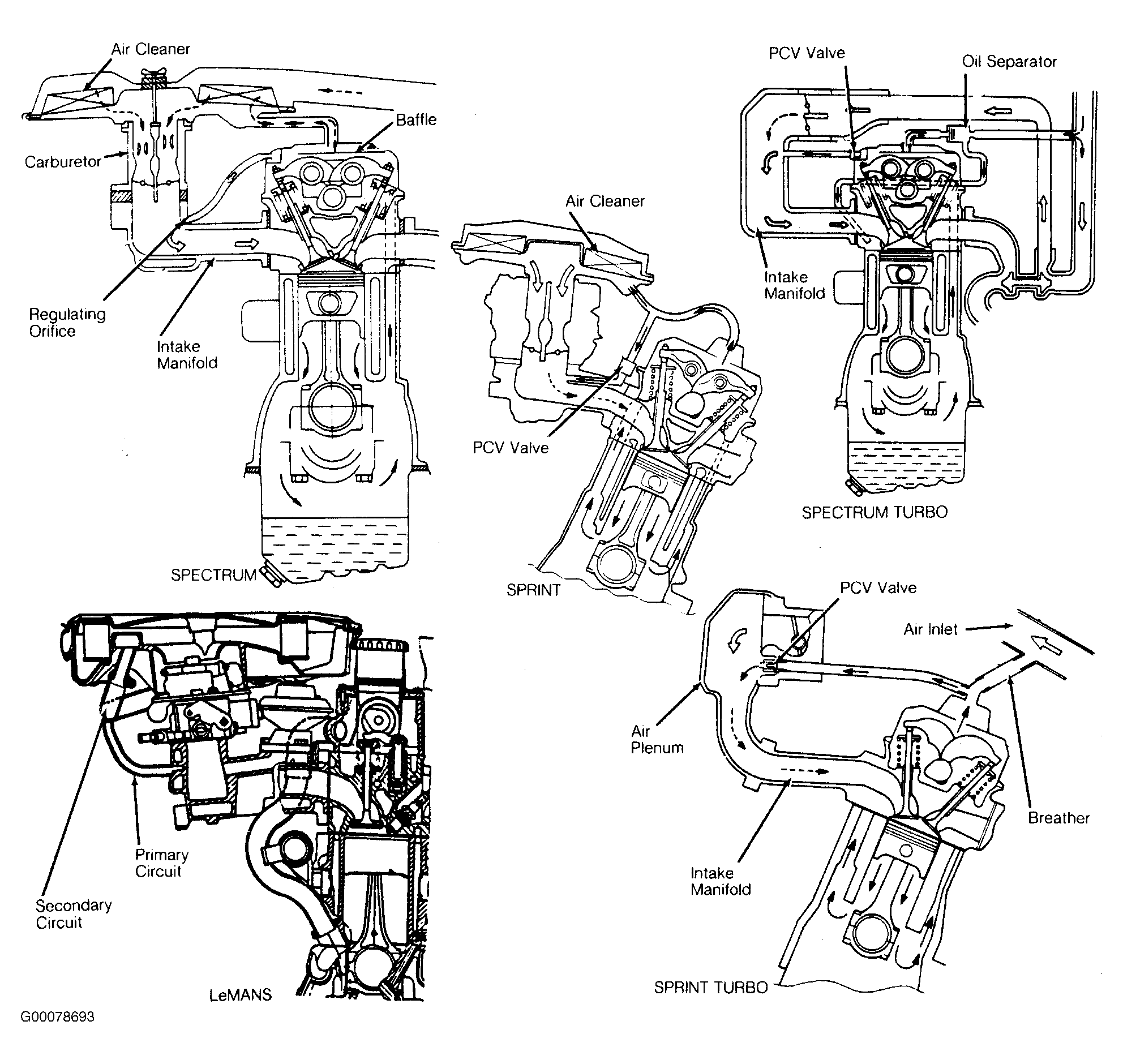

Fig 1: Crankcase Ventilation System (General Motors)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
