Home >> Chevrolet >> 1988 >> Spectrum Express >> Repair and Diagnosis >> Engine Performance >> System >> Crankcase Ventilation >> System Diagrams >> MERCEDES-BENZ

System Diagrams: MERCEDES-BENZ

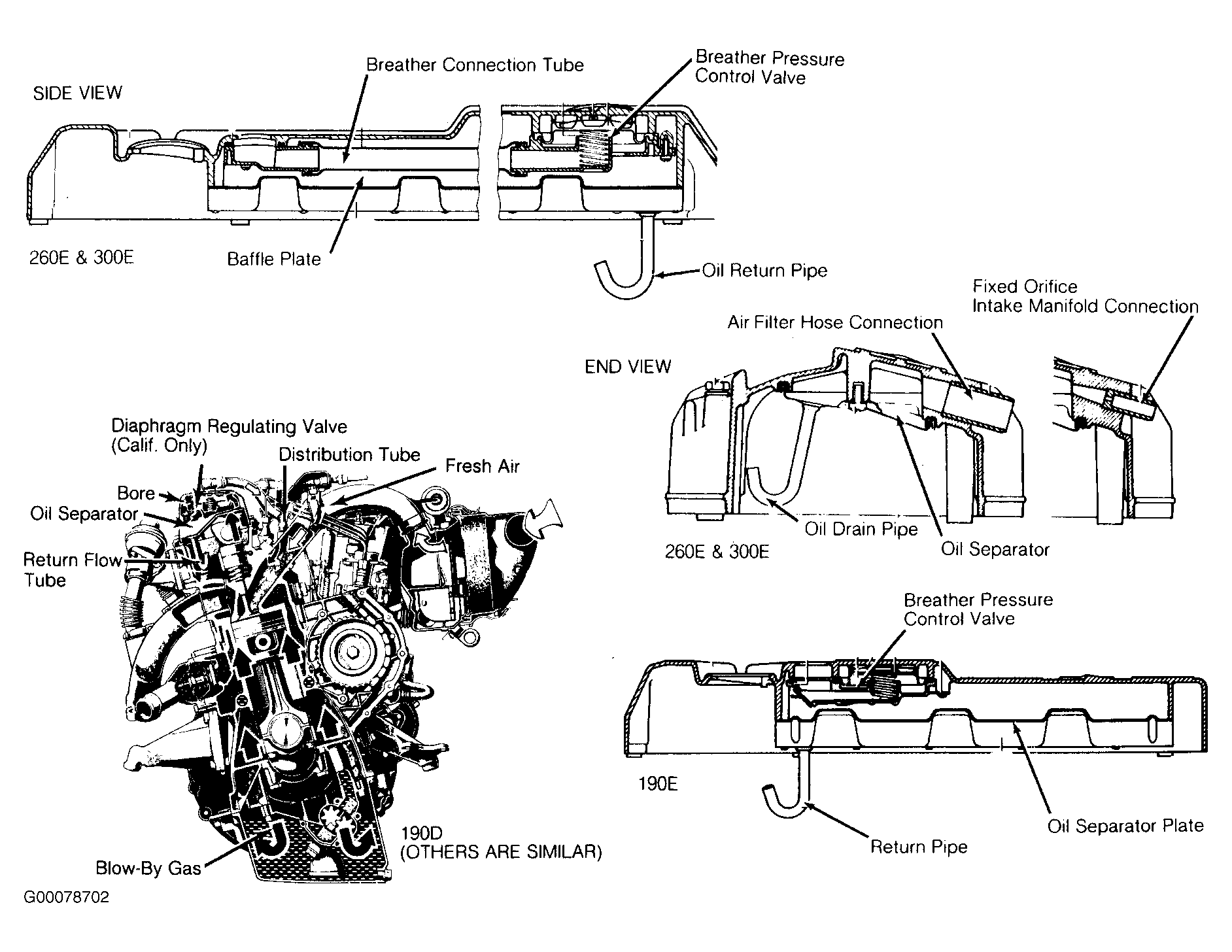

Fig 1: Crankcase Ventilation System (Mercedes-Benz)

G00078702

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
