System Diagrams: SUBARU

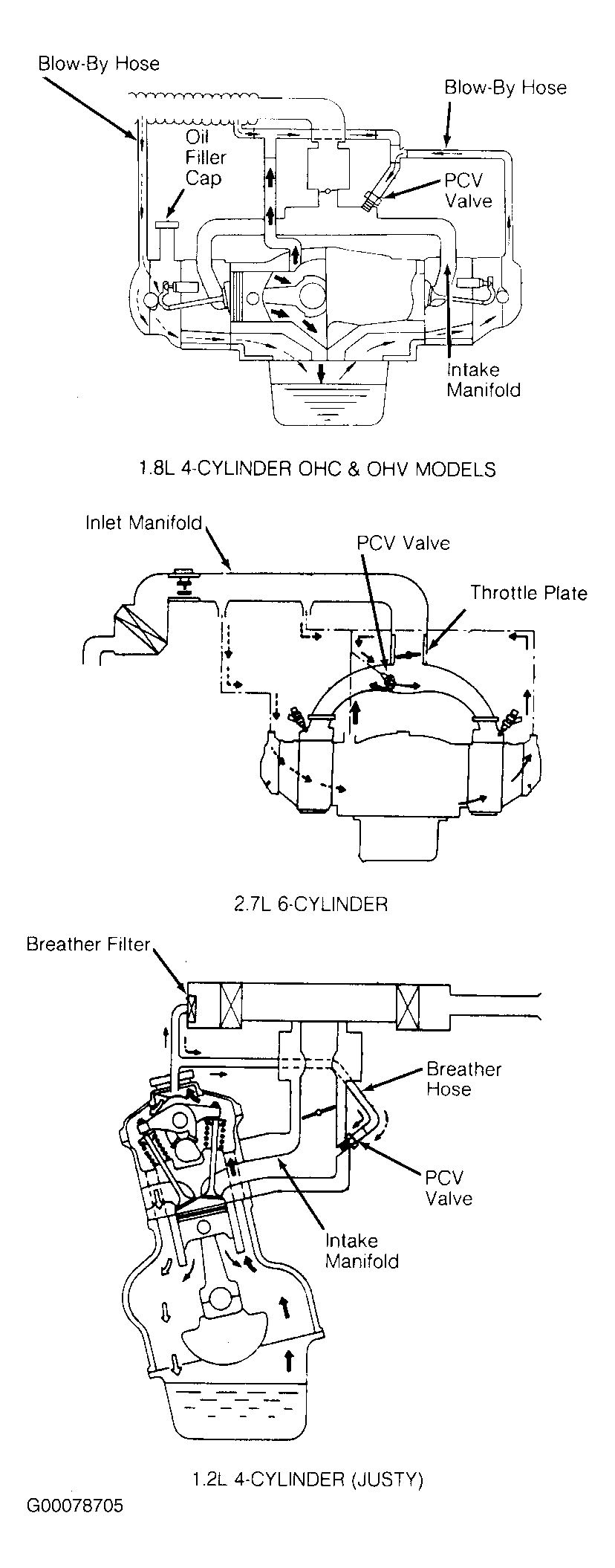

Fig 1: Crankcase Ventilation System (Subaru)

G00078705

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
