System Diagrams: TOYOTA

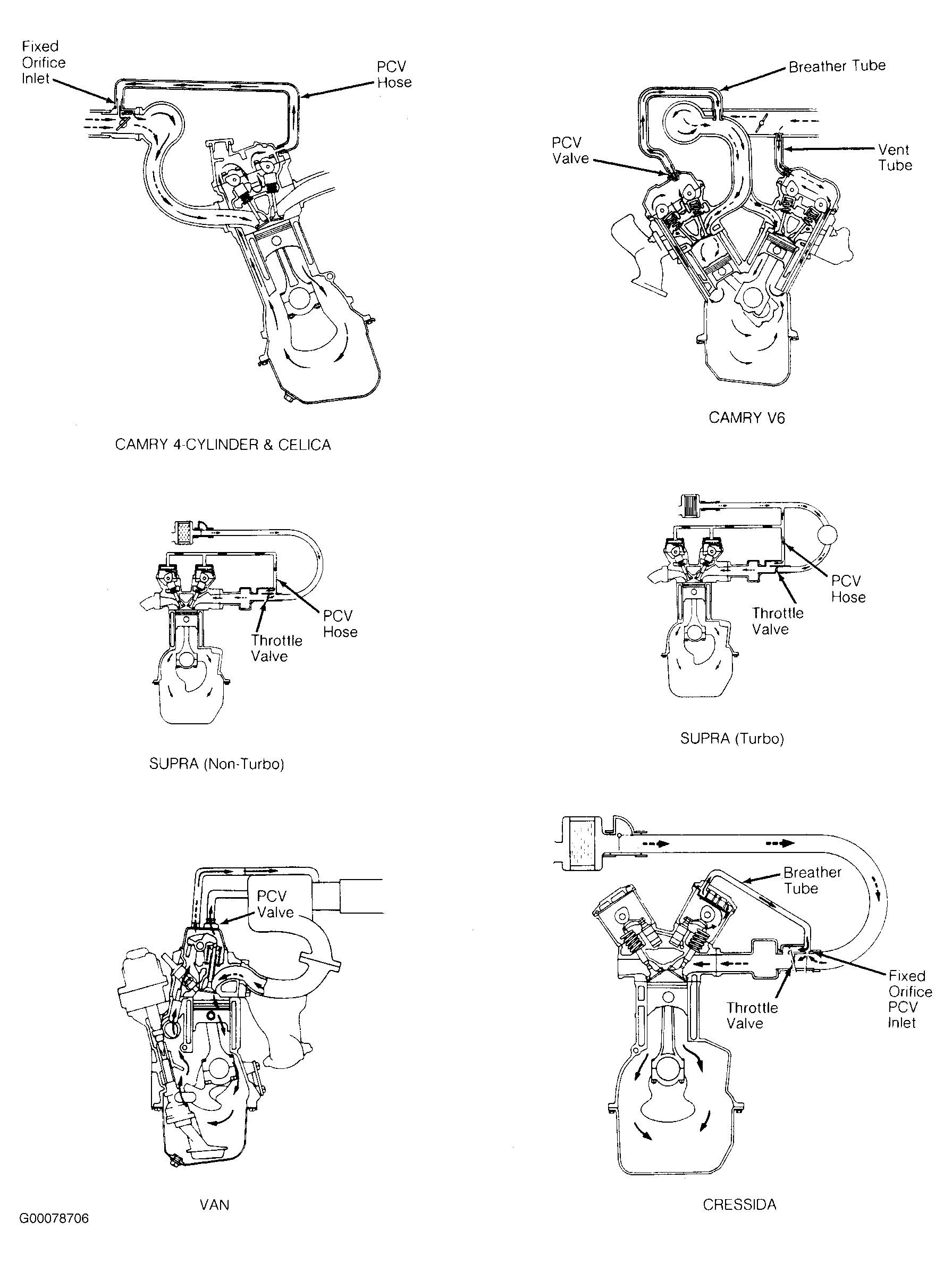

Fig 1: Crankcase Ventilation System (Toyota - 1 Of 2)
G00078706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

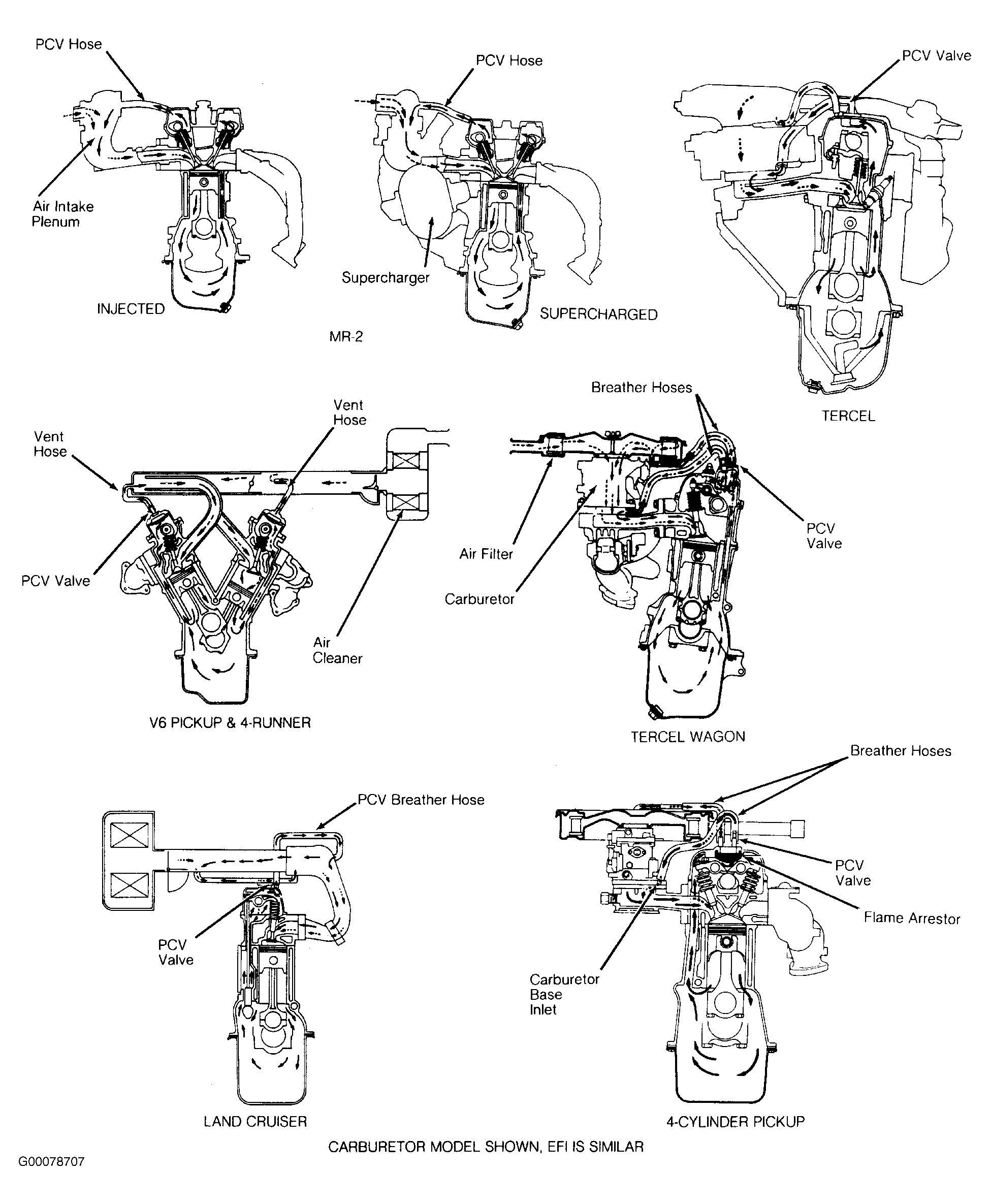

Fig 2: Crankcase Ventilation System (Toyota - 2 Of 2)
G00078707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
