Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Audio Alarm Module | On bracket, above fuse block. | |

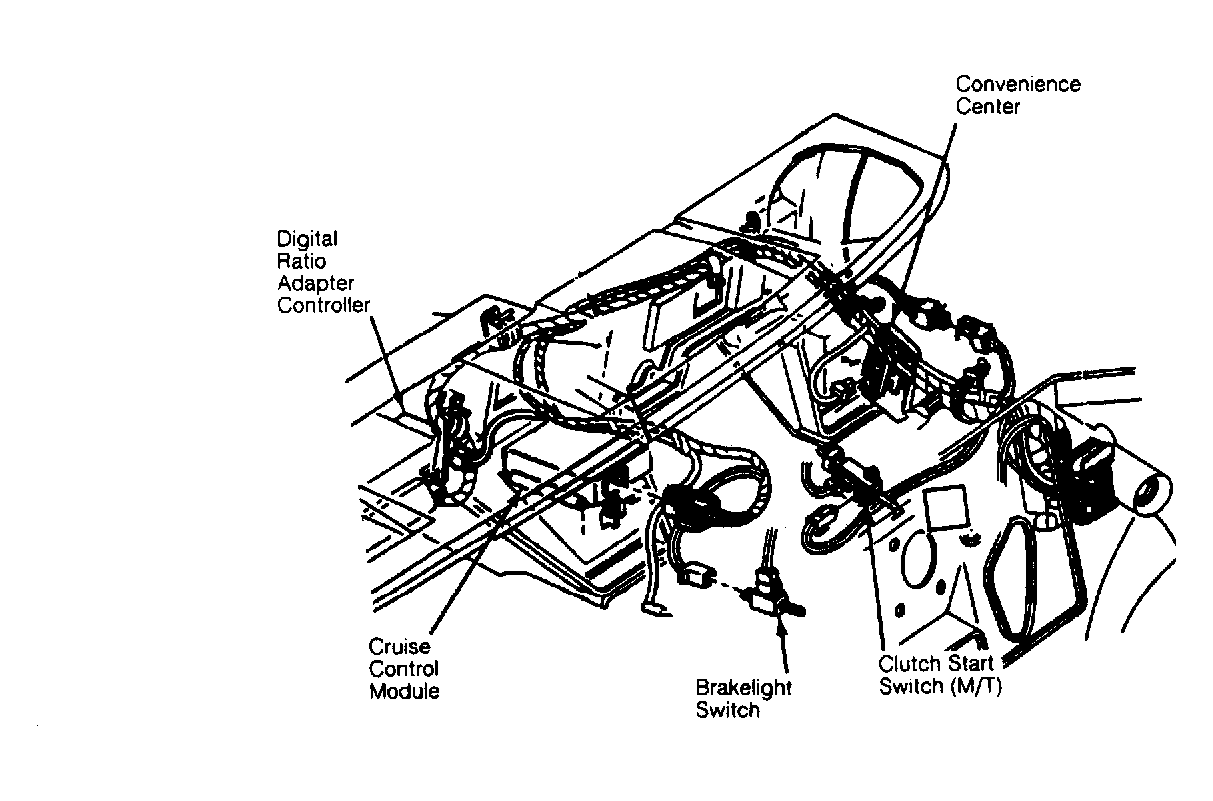

| Cruise Control Module | Under dash, at right side of steering column. See Figure . | |
| Digital Ratio Adapter Controller | On bracket, to left of radio. See Figure . | |
| Electronic Control Module (ECM) | ||

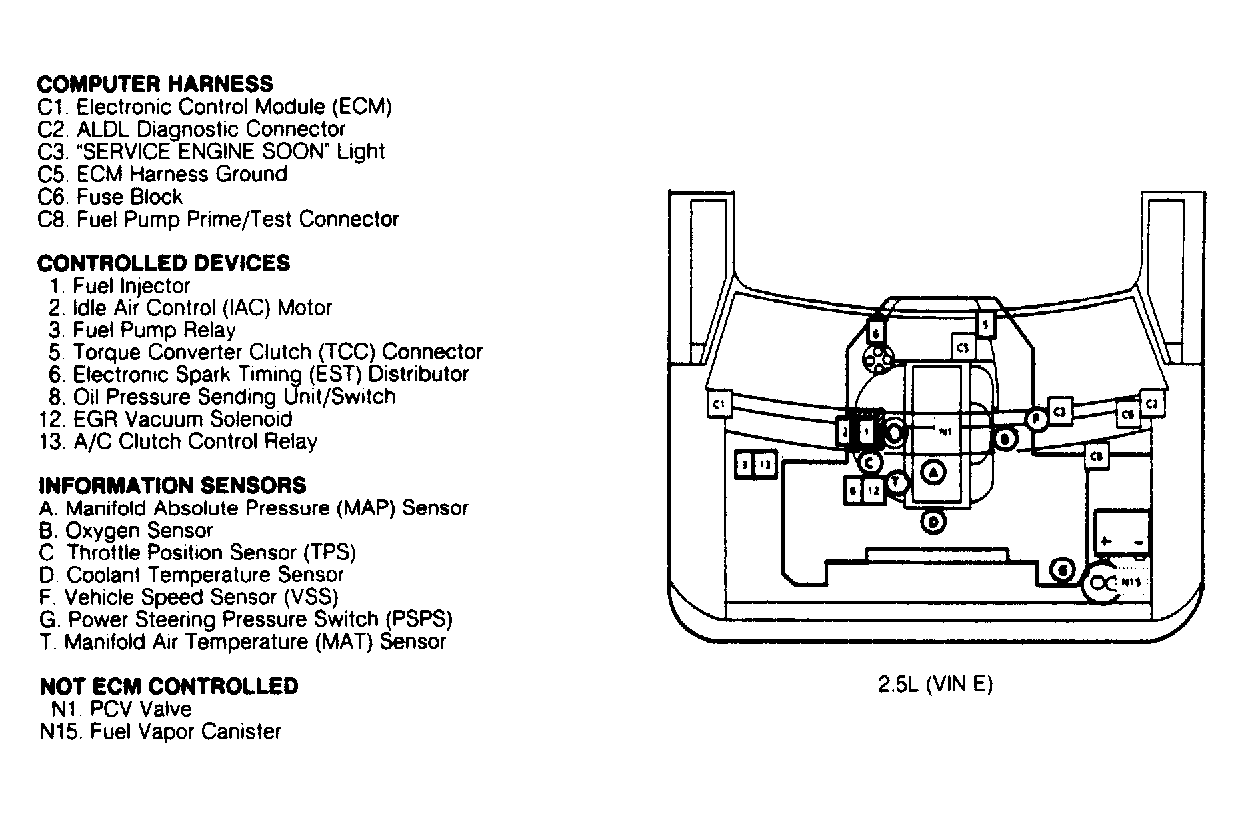

| 2.5L Engine | Behind right kick panel. See Figure . | |

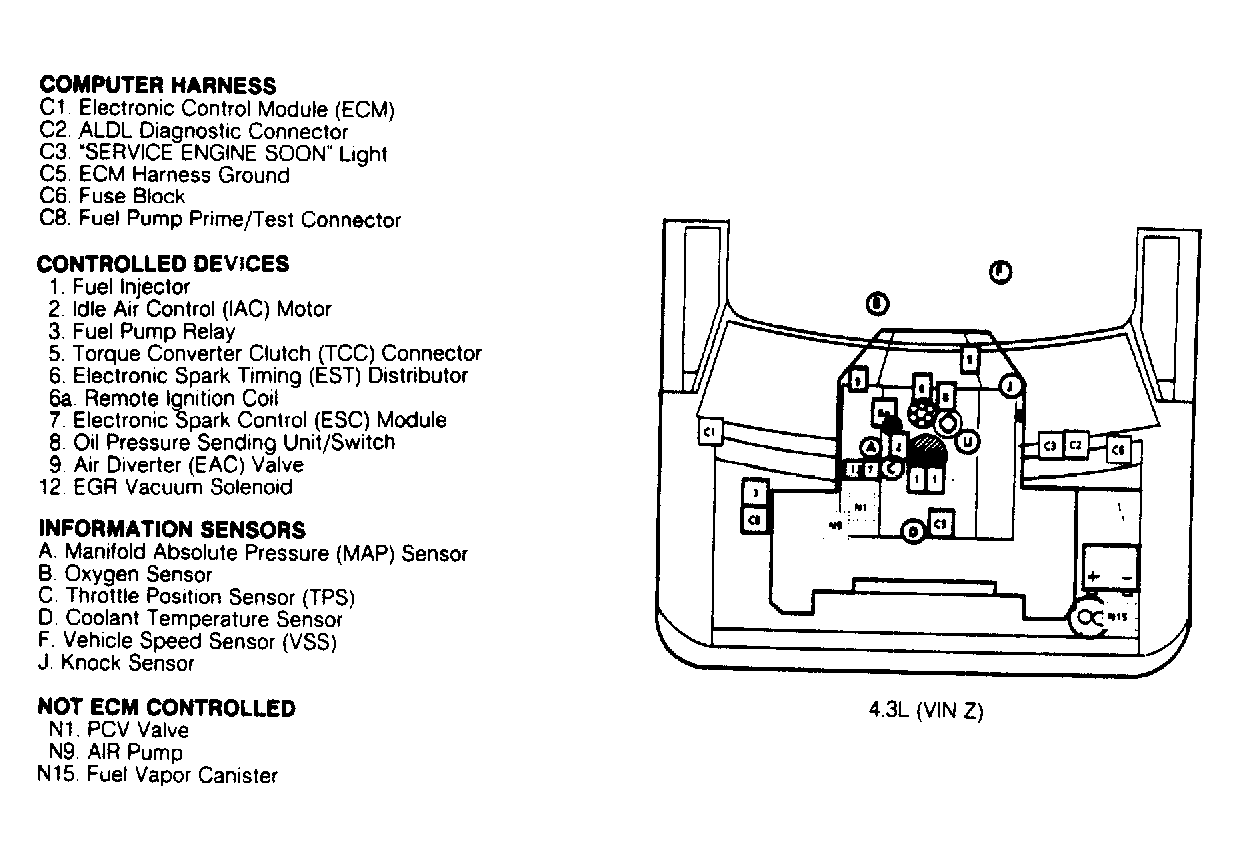

| 4.3L Engine | Behind right kick panel. See Figure . | |
| Elect. Spark Control (ESC) Module (4.3L) | On bracket, at center of right valve cover. See Figure . | |
| Power Door Lock Module | Behind right kick panel. | |
| RABS Electronic Control Unit | On bracket, at master cylinder. | |
