Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|

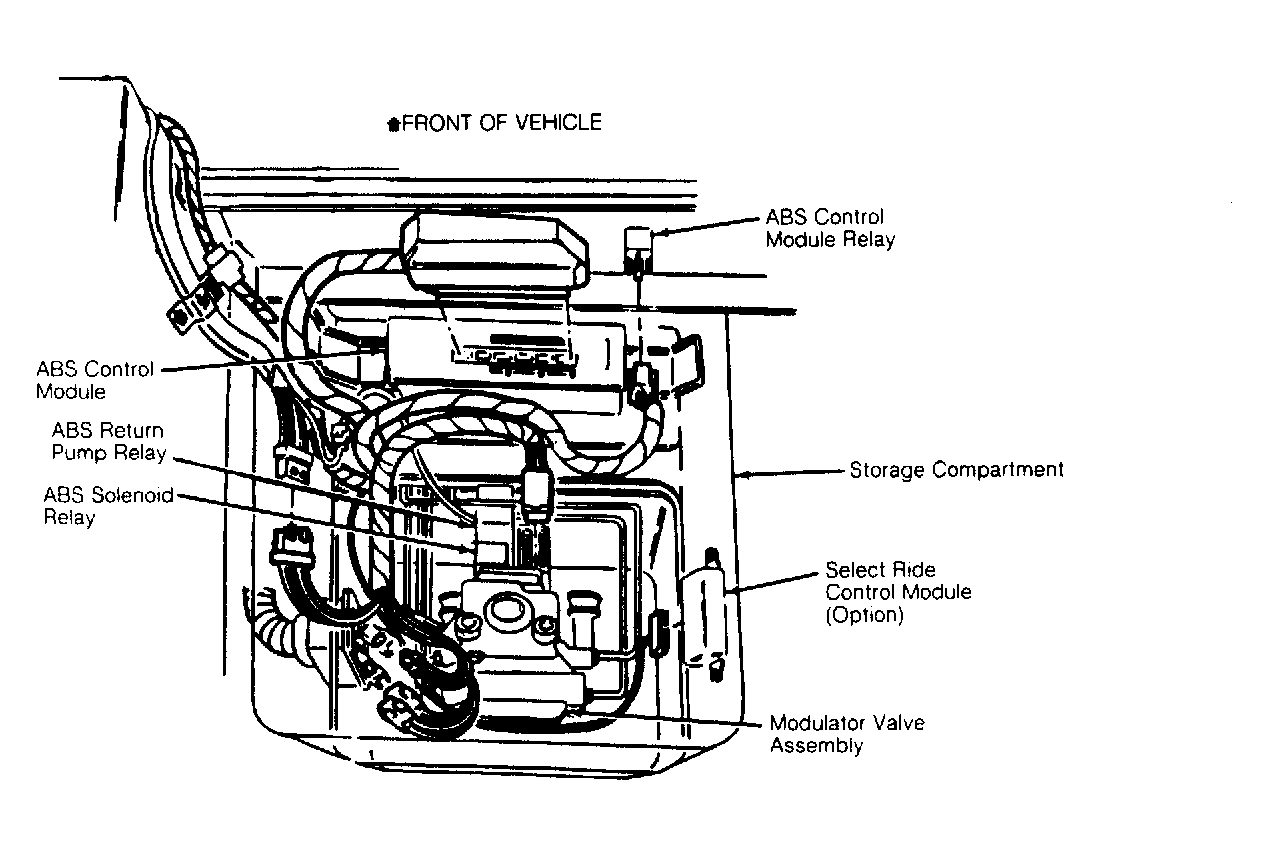

| ABS Control Module | Under left corner of rear floor, in storage compartment. See Figure . | |
| ATC Control Unit | Below left side of dash, to right of steering column. | |

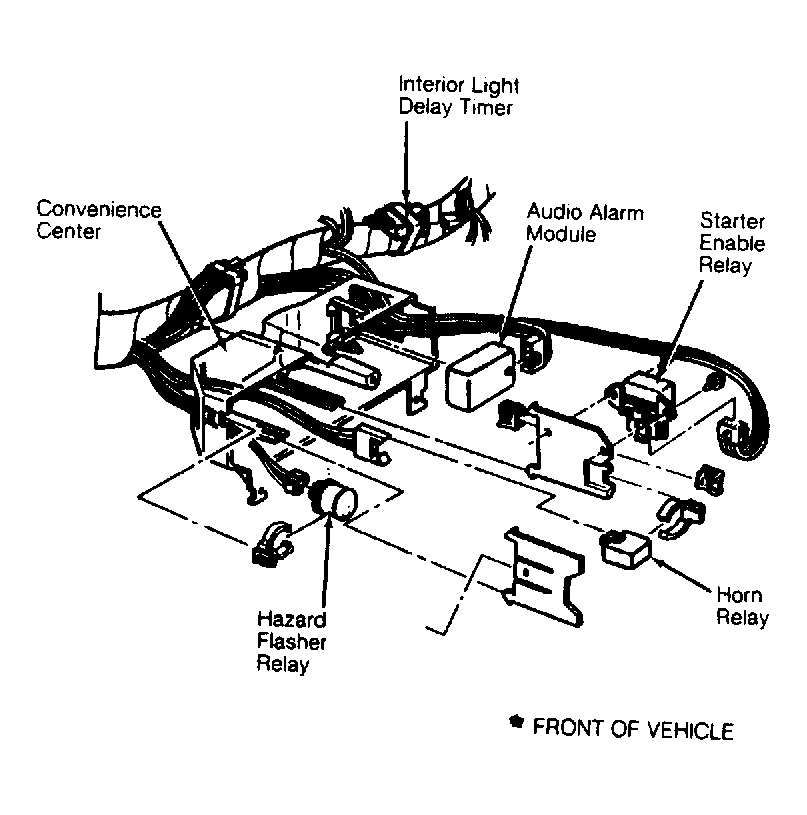

| Audio Alarm Module | In convenience center. See Figure . | |
| Blower Control Module (Auto. A/C) | In top left side of evaporator housing. | |
| Cruise Control Module | Built into LCD instrument cluster. | |
| Defroster Control Unit | Behind center of dash. | |
| Diode Module | In right rear corner of vehicle, near fuel filter. | |

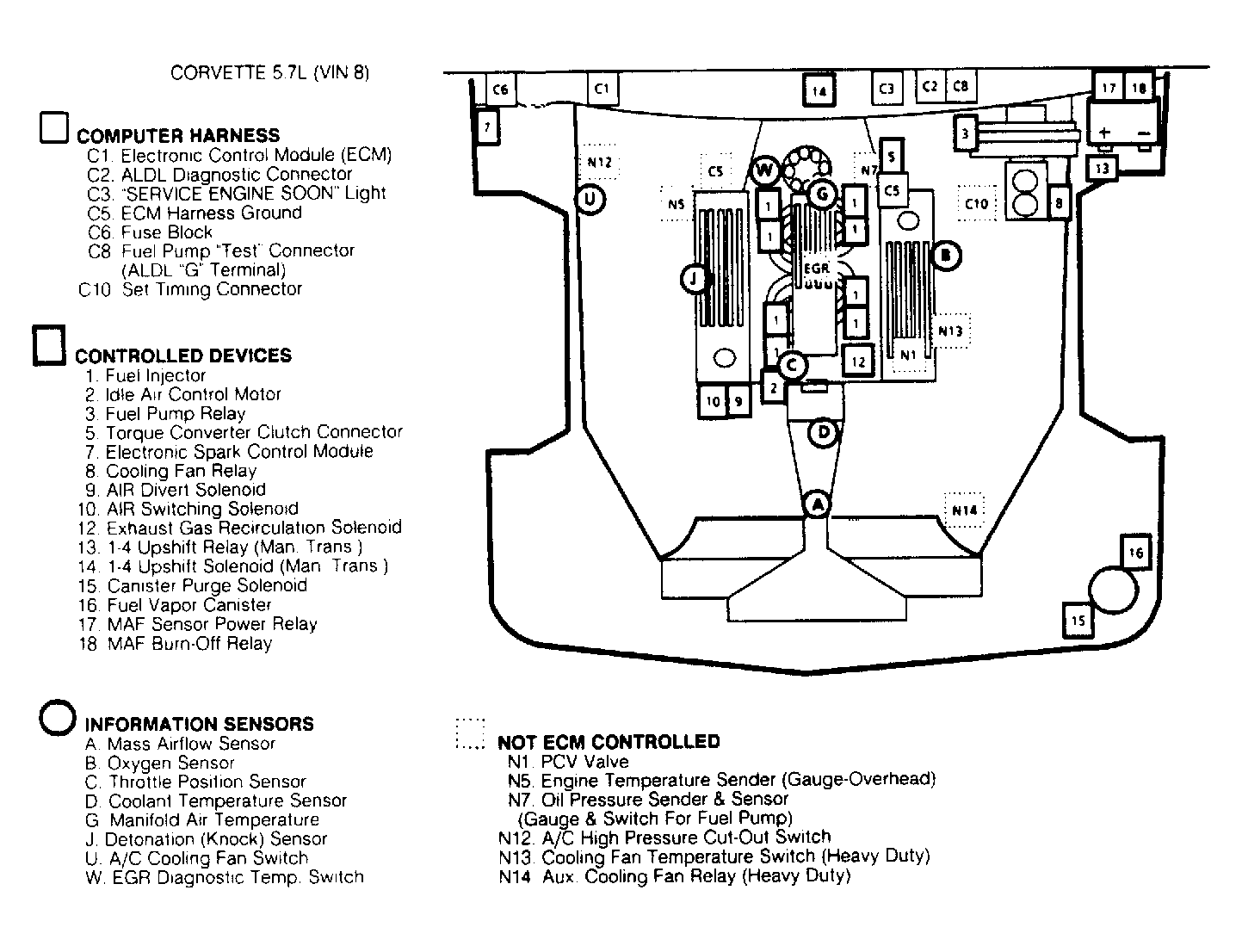

| Electronic Control Module (ECM) | Behind right side of dash. See Figure . | |
| Electronic Spark Control Module | ||

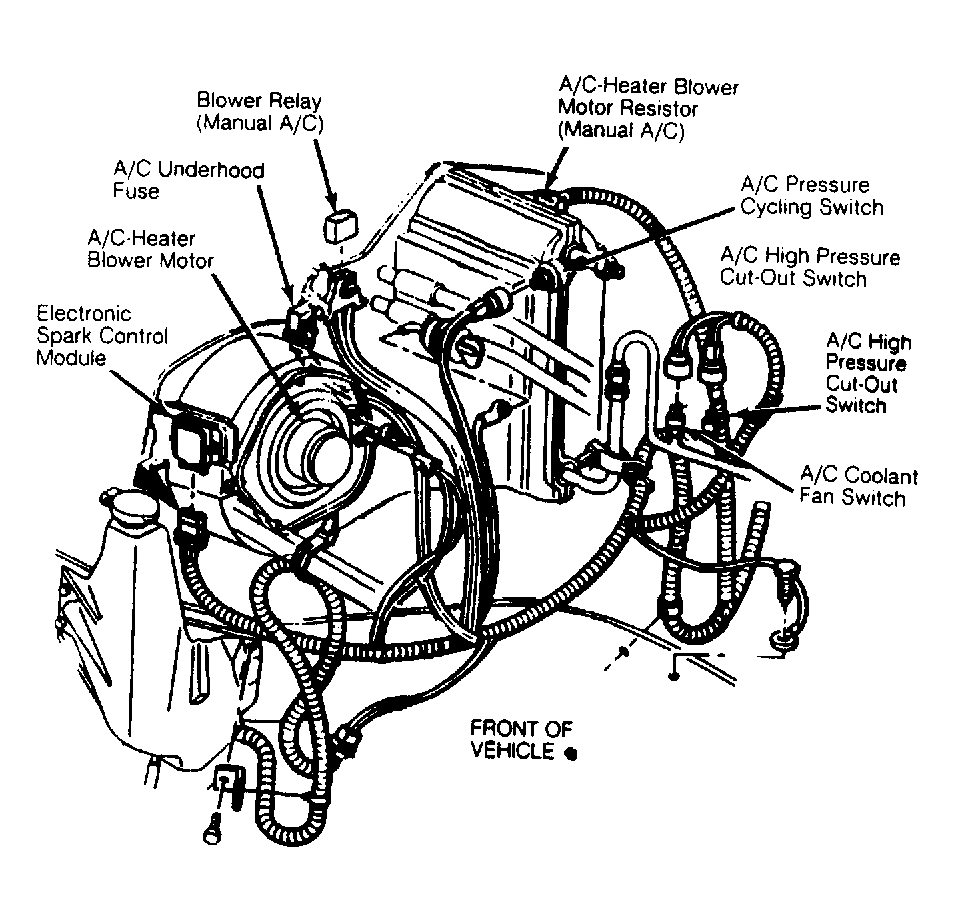

| Engine Compartment Overview | On right side of A/C-heater blower housing. See Figure . | |
| Component View | On right side of A/C-heater blower housing. See Figure . | |
| Headlight Door Control Unit | In lower left front of Engine Compartment. | |
| Low Coolant Module | Behind dash panel, near fuse block. | |
| Low Tire Pressure Indicator Module | Behind right side of dash. | |
| Pass Key Decoder Module | Below right side of dash, near fuse block. | |
| Select Ride Control Module (Opt.) | Under left corner of rear floor, in storage compartment. | |
| Theft Deterrent Control Module | Behind right side of dash. | |
| Wiper/Washer Motor Module | On left of firewall. | |
