Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Under left corner of rear floor, in storage compartment. |
| A/C-Heater Programmer | Behind left side of dash, right of steering column. |
| Blower Control Module (Auto. A/C) | In left side of engine compartment, on firewall. |

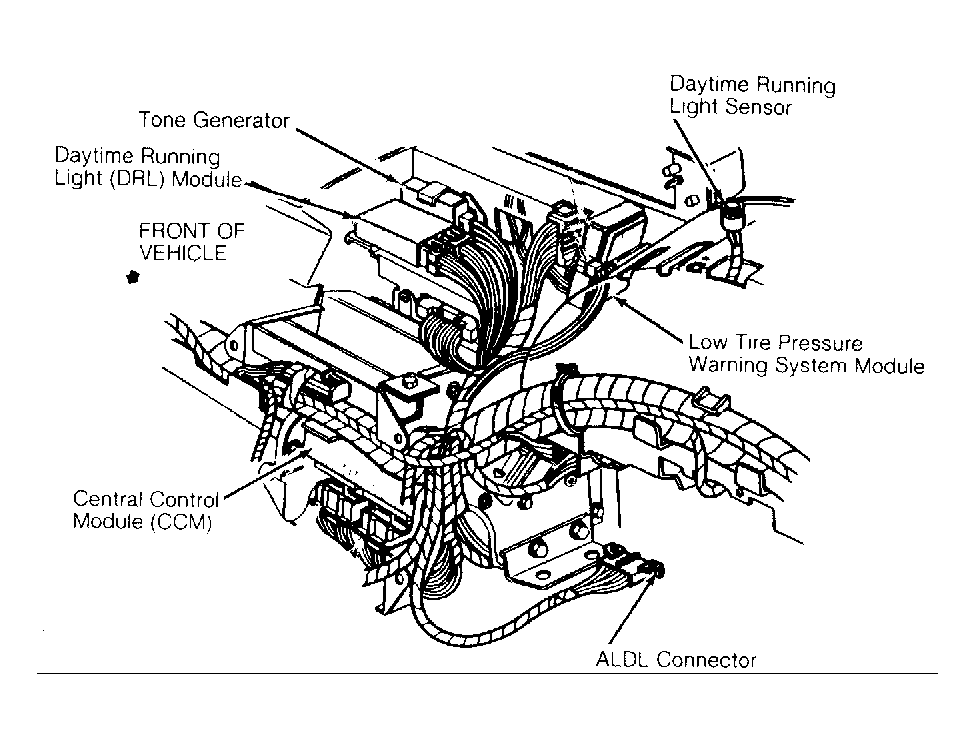

| Central Control Module (CCM) | Behind center of dash. See Figure . |
| Cruise Control Module | Behind right side of dash, near radio receiver box. |
| Daytime Running Light Module | Behind center of dash. See Figure . |
| Diode Module | Behind right side of dash. |
| Electronic Control Module (ECM) | On left side of engine compartment, near battery. See Figure . |
| Headlight Door Control Unit | In lower left front of engine compartment. |
| Inflator Module | Middle of steering wheel. |
| Low Tire Pressure Warning System Module | Behind left side of dash. See Figure . |
| Select Ride Control Module (Opt.) | Under left corner of rear floor, in storage compartment. |
| Wiper/Washer Motor Module | On left side of firewall. |
