Component Locations

Fig 1: Component Locations (2.2L VIN 4 - "L" Body)
G92B03773Courtesy of GENERAL MOTORS CORP.
Fig 2: Component Locations (2.3L VIN A - "L" Body)
G92G03775Courtesy of GENERAL MOTORS CORP.

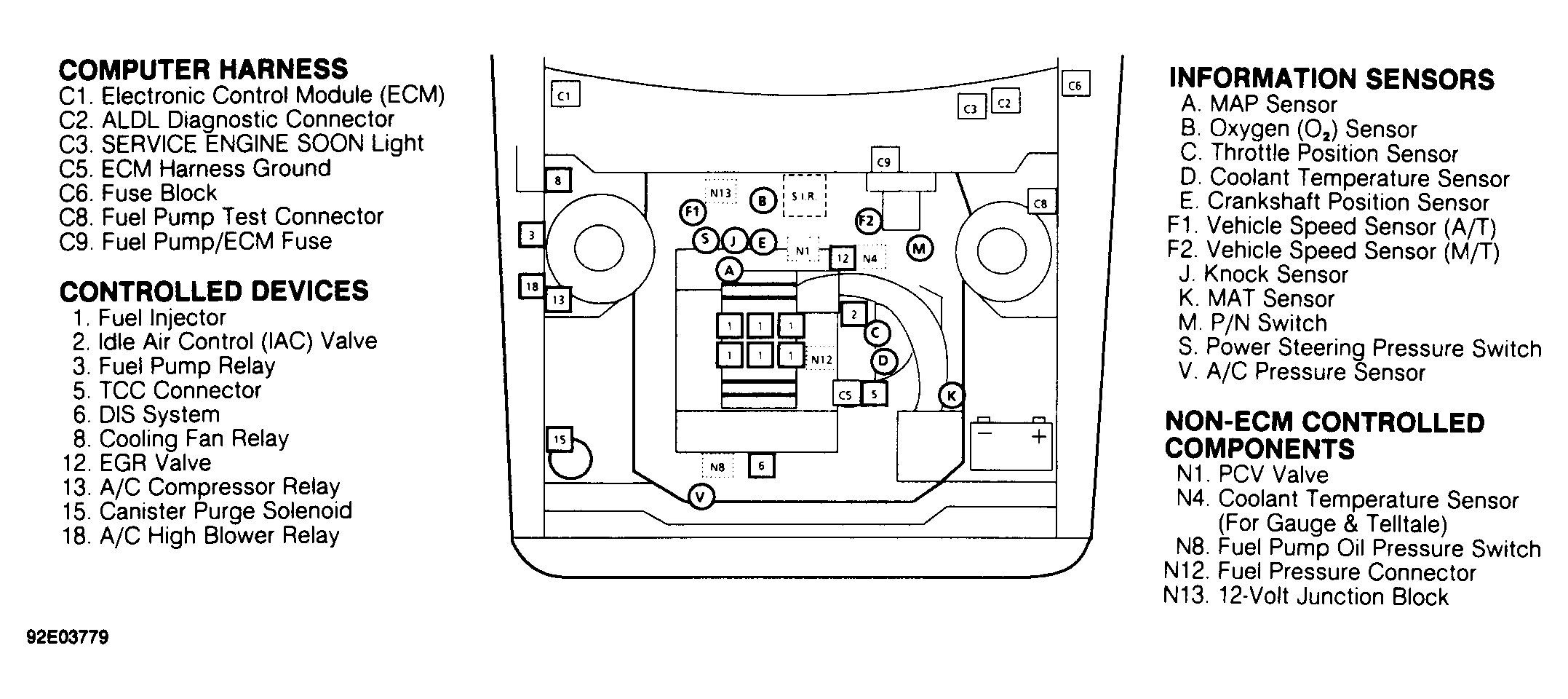

Fig 3: Component Locations (3.1L VIN T - "L" Body)
G92E03779Courtesy of GENERAL MOTORS CORP.
