COMPONENT LOCATIONS
| Component | Location |
|---|---|
| ALDL Connector | Under lower left side of instrument panel. |

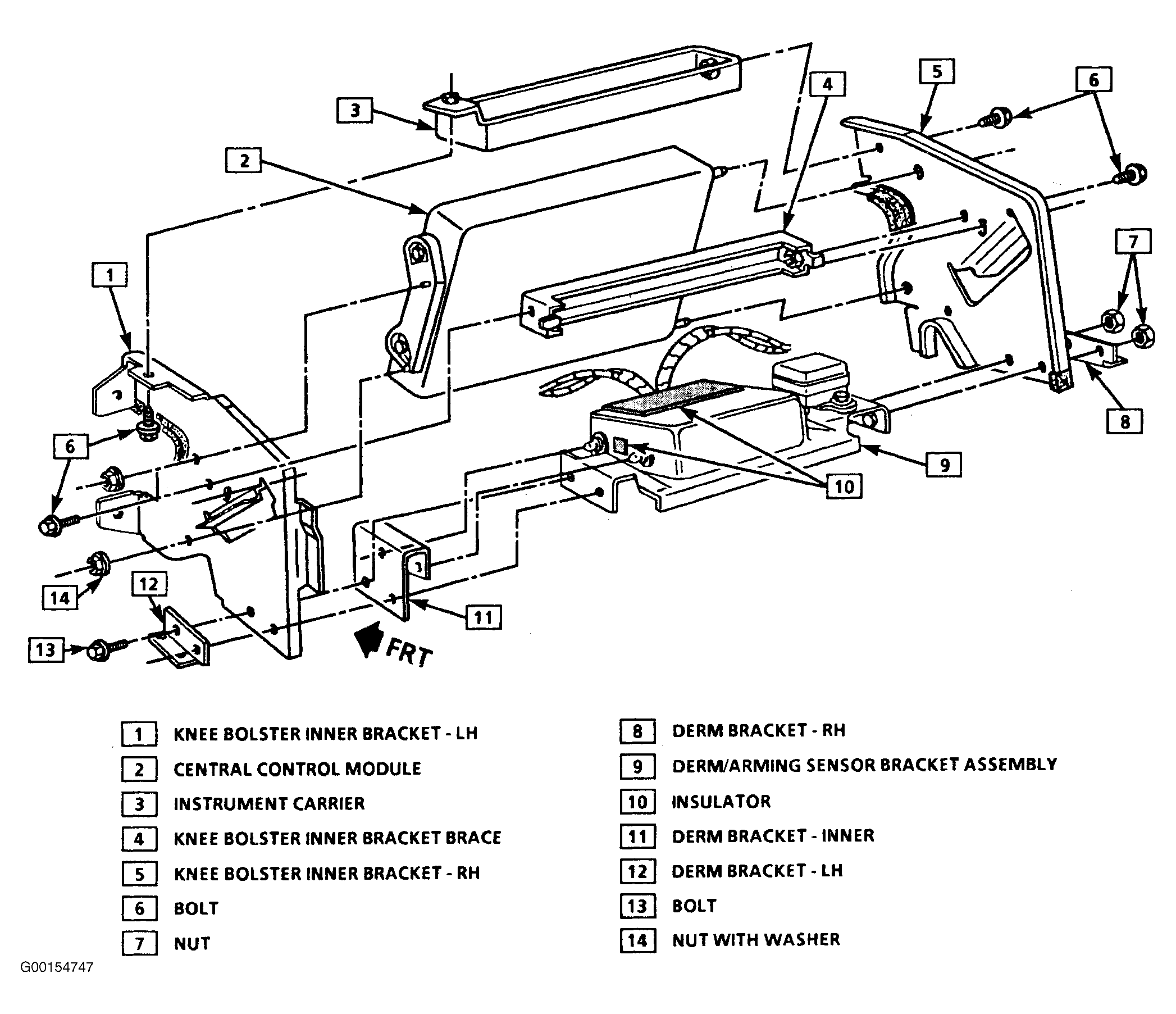

| Central Control Module (CCM) | Behind center of dash, behind radio control. See Figure . |
| Delayed Accessory Bus (DAB) Relay | Behind lower left side of instrument panel. See Fig 1 . |

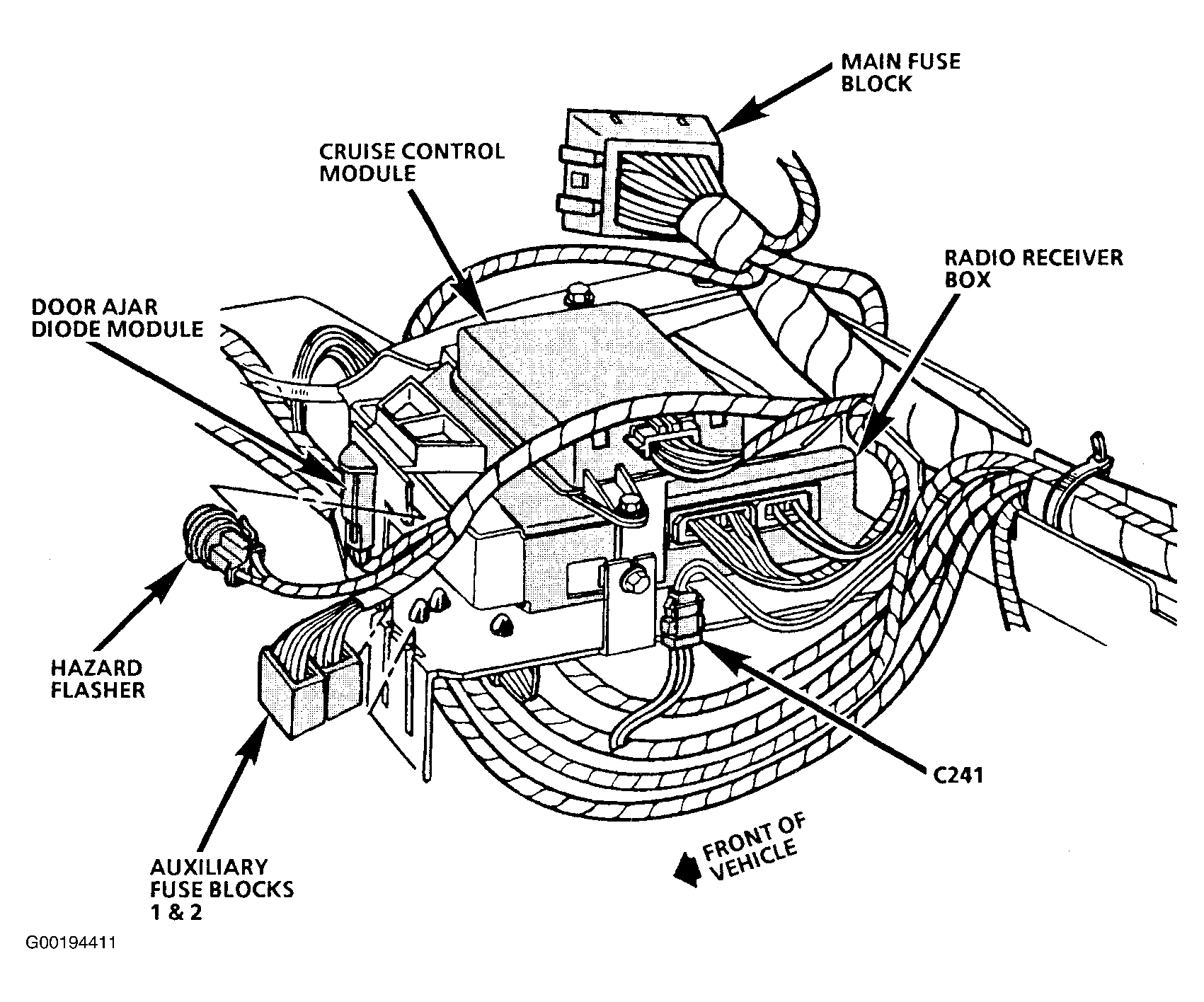

| Diode Module | Below right hand side of instrument panel. See Fig 2 . |

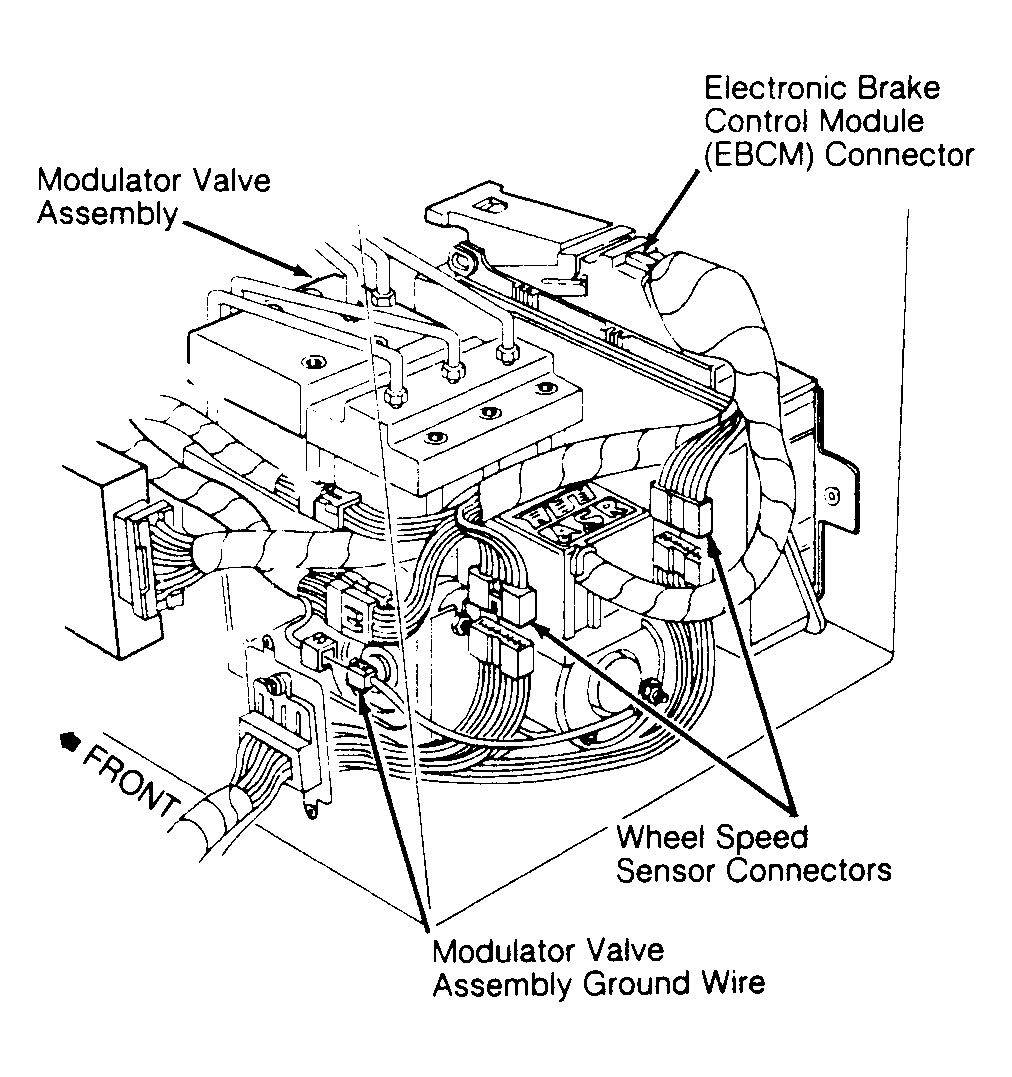

| Electronic Brake Control Module (EBCM) | Rear of cargo compartment, under cargo deck. See Fig 3 . |
| Fuse Block | Behind far right side of instrument panel, in door opening. |
| Horn Relay | Below right hand side of instrument panel. See Fig 4 . |
| Oil Pressure Switch (Engine VIN J) | Right hand front of engine. |
| Oil Pressure Switch (Engine VIN P) | Top left hand rear of engine. |

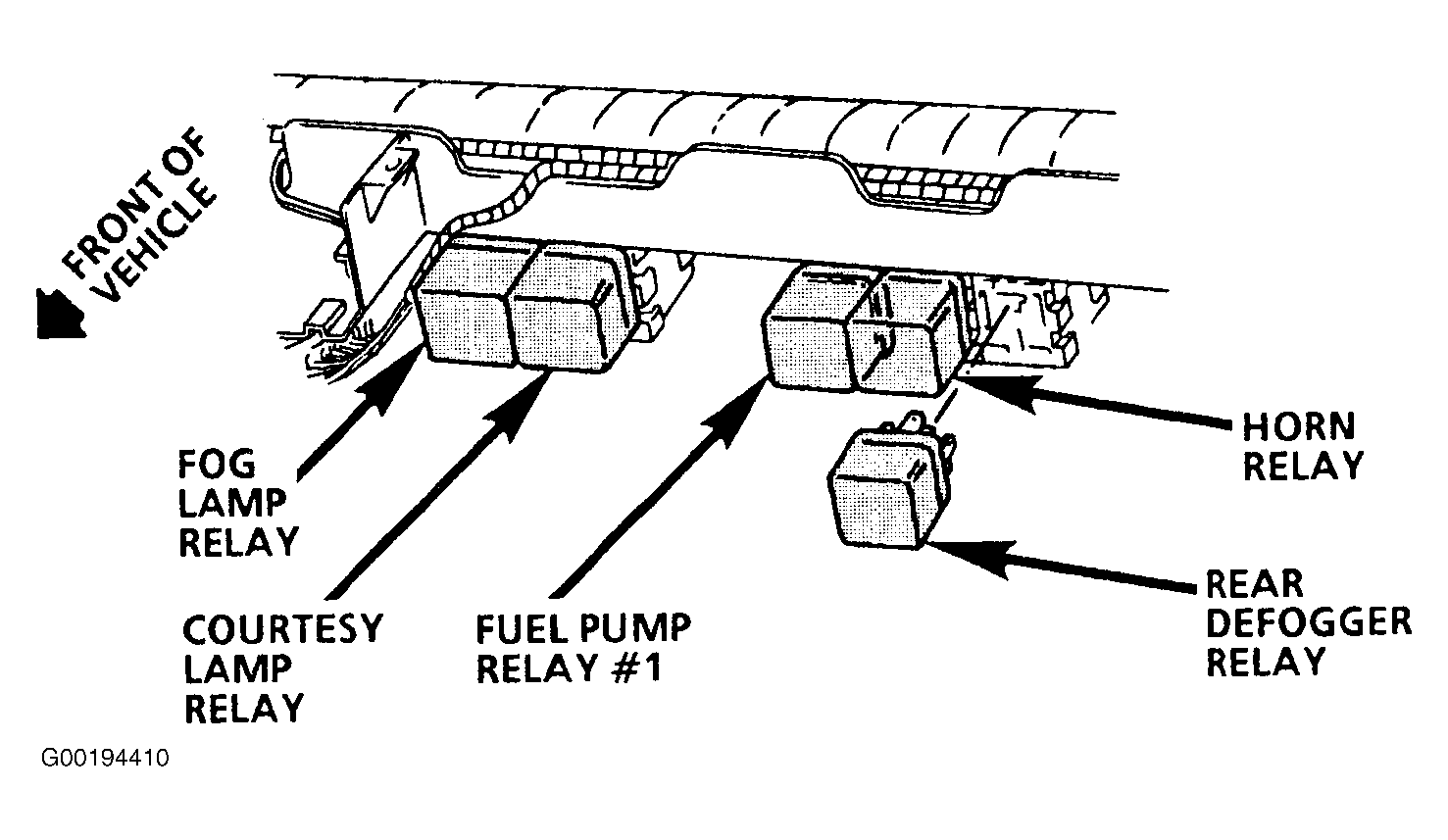

| Rear Defogger Relay | Below right hand side of instrument panel. See Fig 4 . |
| Starter Enable Relay | Behind lower left side of instrument panel. See Fig 1 . |

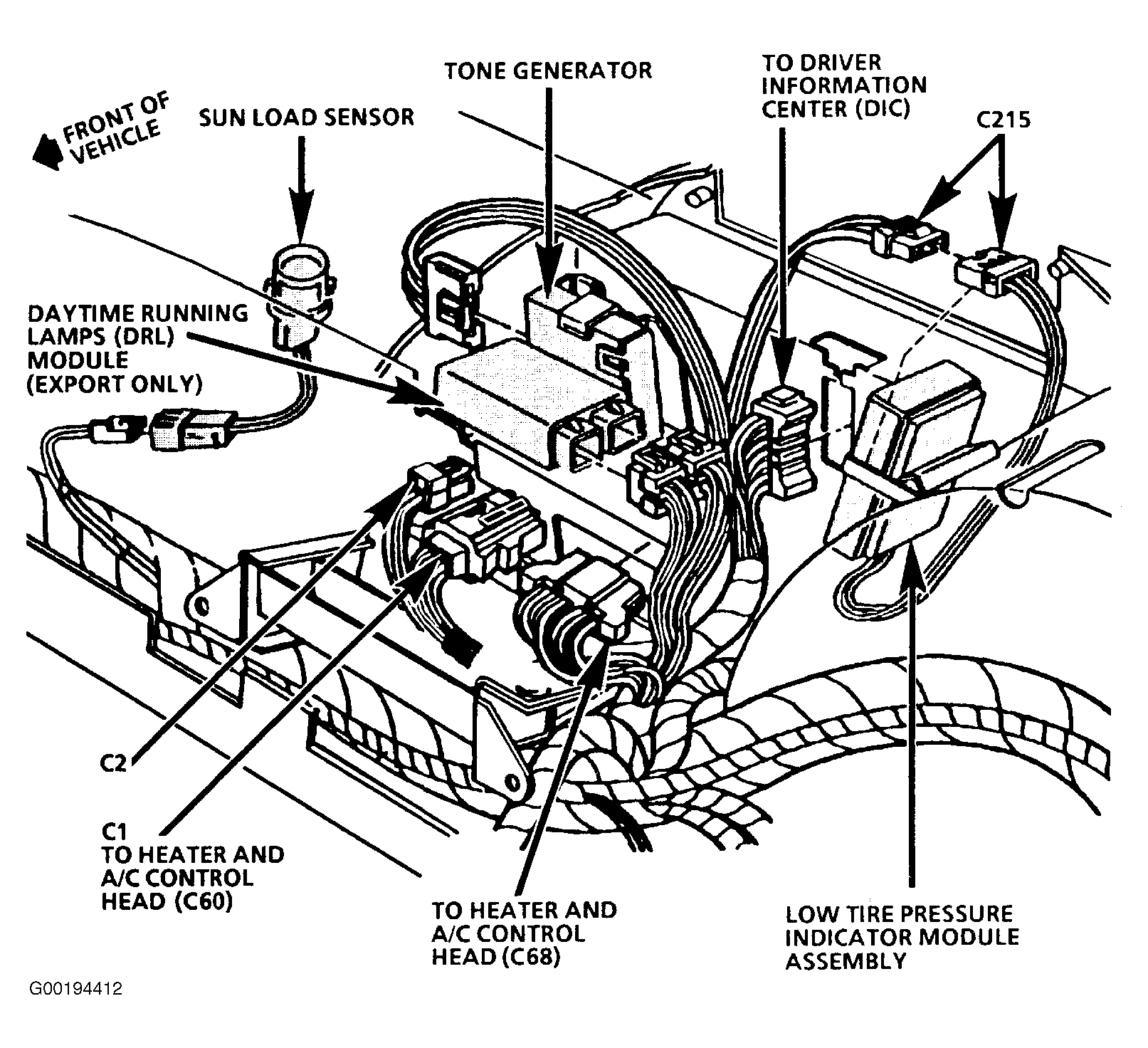

| Tone Generator | Top left of instrument panel, near Driver Information Center. See Fig 5 . |

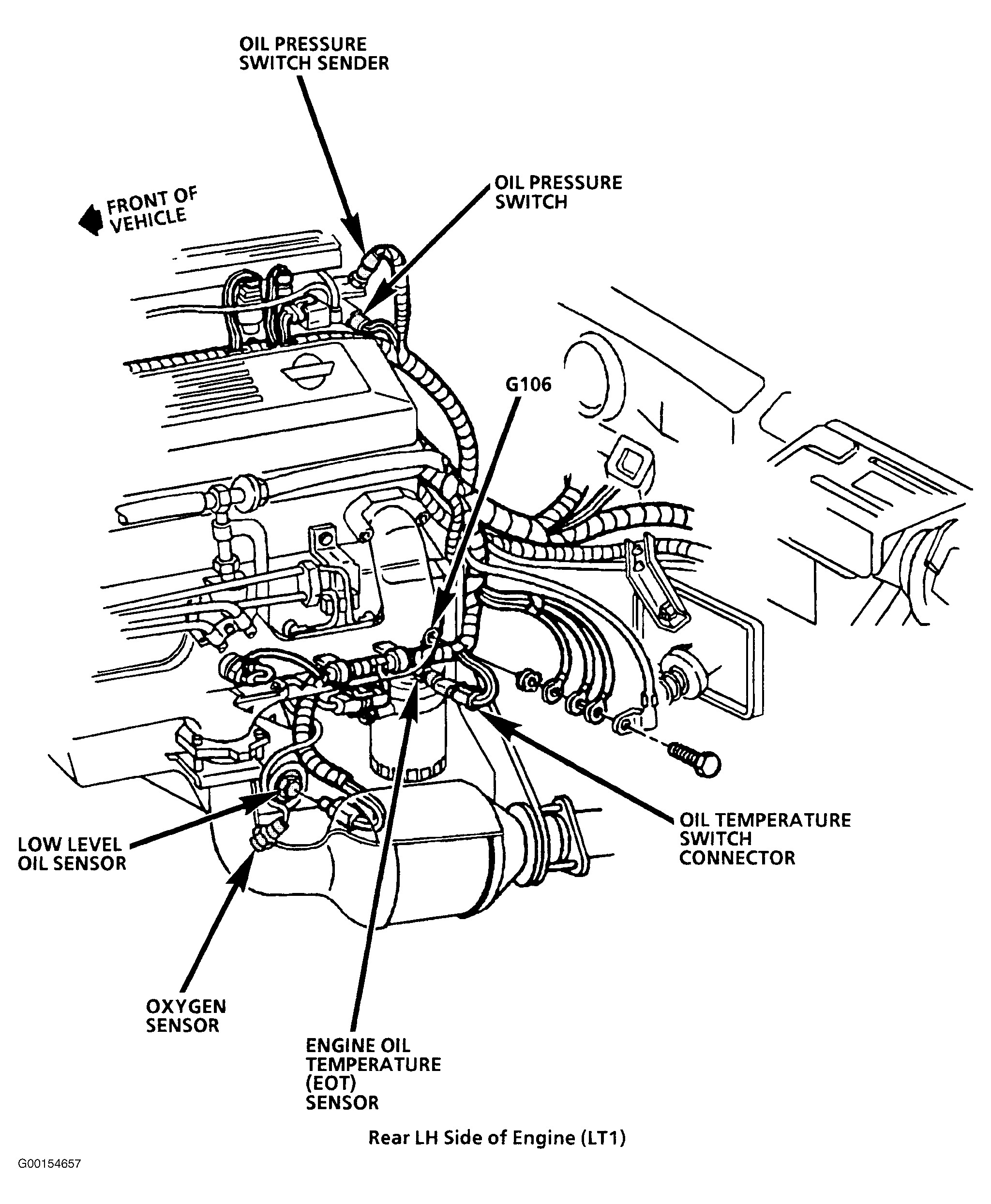

| Ground G106 (VIN P Engine) | Lower left side of engine, above oil filter. See Fig 6 . |
| Ground G106 (VIN J Engine) | Right rear of engine, on bell housing. |
| Ground G109 | Right middle of engine compartment, on frame. |
NOTE:
Engine code is eighth character of VIN.
