Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | ||
|---|---|---|---|
| A/C Fuse | In wiring harness, near blower fan motor. | ||

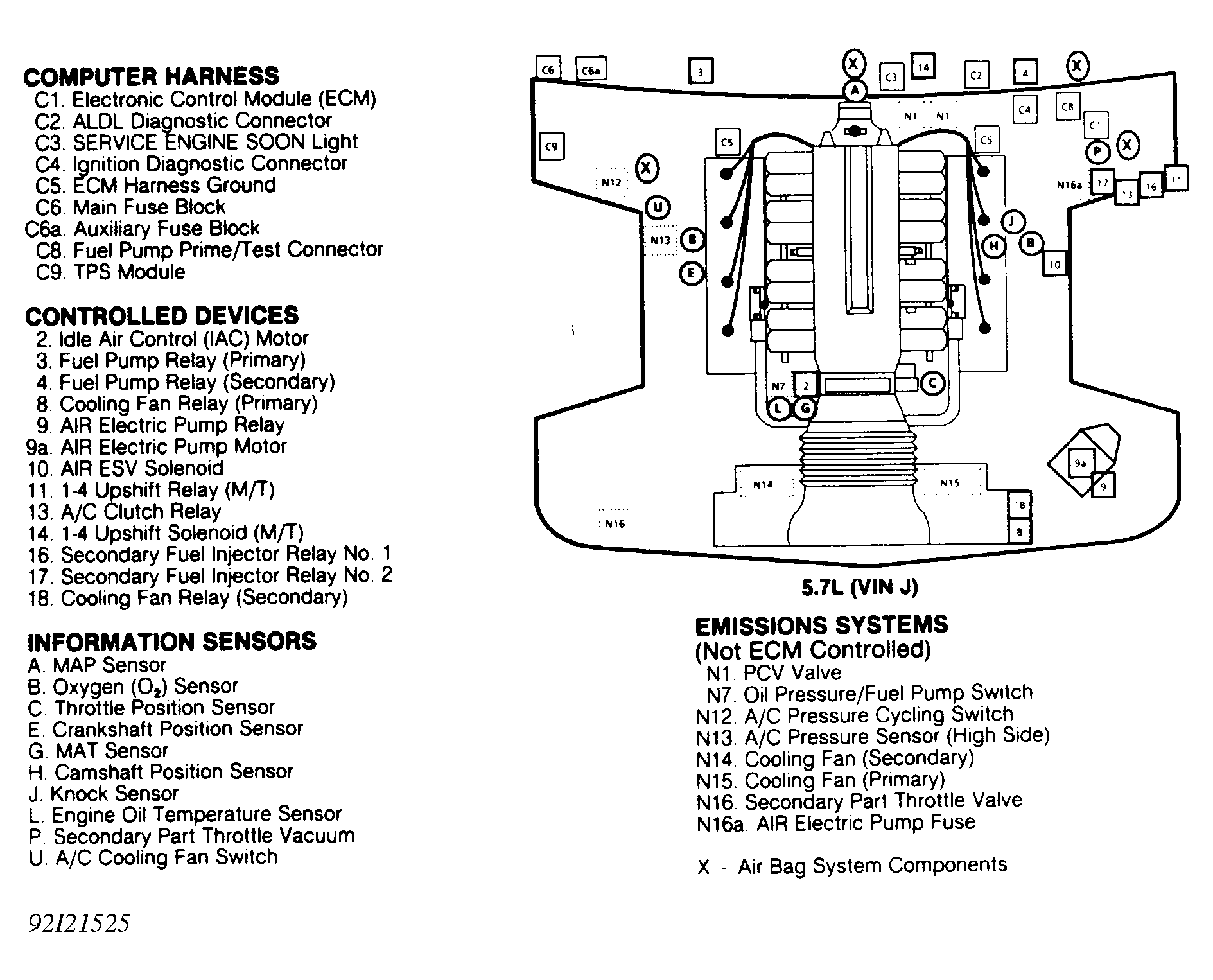

| AIR Electric Pump Fuse (5.7 VIN J) | On left side of engine compartment, in front of battery. See Figure . | ||
| Circuit Breakers | In main fuse block, under right side of dash. | ||
| Convenience Center | Under right side of dash. | ||
| Fuse Blocks | |||
| Auxiliary | |||
| 5.7 (VIN J) | Behind right side of dash, near radio receiver box. See Figure . | ||
| 5.7 (VIN P) | Behind right side of dash, near radio receiver box. See Figure . | ||
| Main | |||
| 5.7 (VIN J) | Under right side of dash. See Figure . | ||
| 5.7 (VIN P) | Under right side of dash. See Figure . | ||
| Fusible Links | |||
| "A" (Rust) Auxiliary Fuse Block | At jump start junction block. | ||
| "B" & "C" (Rust) Charging System | At jump start junction block. | ||
| "D" & "E" (Rust) Cooling Fan Relay | At jump start junction block. | ||
| "G" (Rust) Headlight Control Module | At jump start junction block. | ||
| "H" (Rust) ECM | On battery positive terminal pigtail. | ||
| "J" (Rust) ABS Modulator | At jump start junction block. | ||
| "K" (Rust) Blower Fan | At jump start junction block. | ||
| "L" (Rust) ABS Module | At jump start junction block. | ||
| "M" (Rust) Main fuse Block | At jump start junction block. | ||
| "R" (Rust) Air Pump Relay (VIN J) | At jump start junction block. | ||
| "T" (Rust) Ignition Switch | At jump start junction block. | ||
| Headlight Control Unit (VIN J) | On left front of engine compartment. | ||
| Underhood Lights In-Line Fuse | Attached to left front side marker light. | ||
