Home >> Chevrolet >> 1992 >> Forward Control 5.7 K, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Auxiliary Emission Control Systems >> EGR Function Testing >> EGR Function Testing >> EGR With EVRV Control

EGR With EVRV Control

NOTE: For additional testing, see EGR/EVRV code tests in appropriate TESTS W/CODES article.

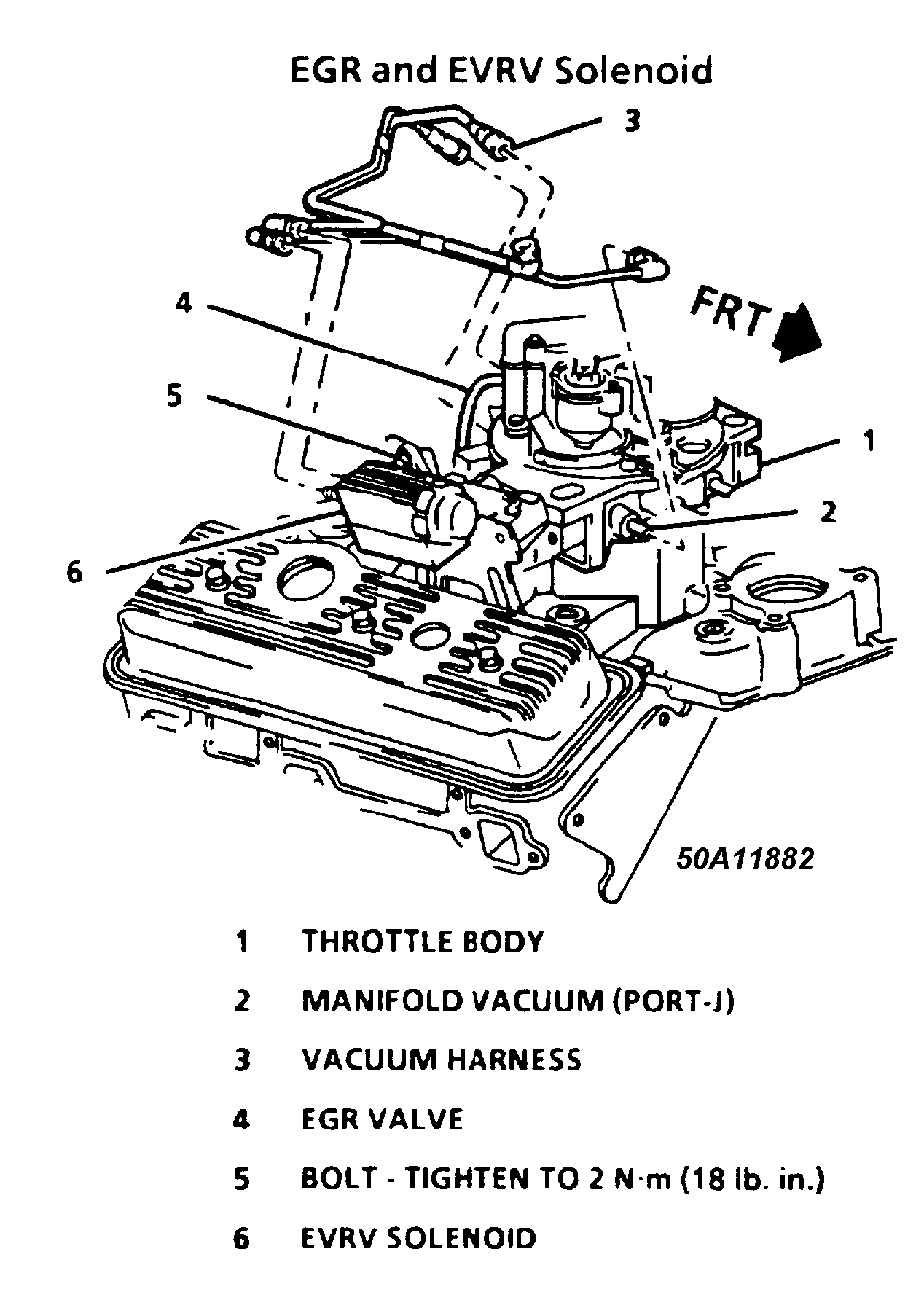

Fig 1: EGR & EVRV Location (Heavy-Duty Gasoline Models)
G50A11882Courtesy of GENERAL MOTORS CORP.

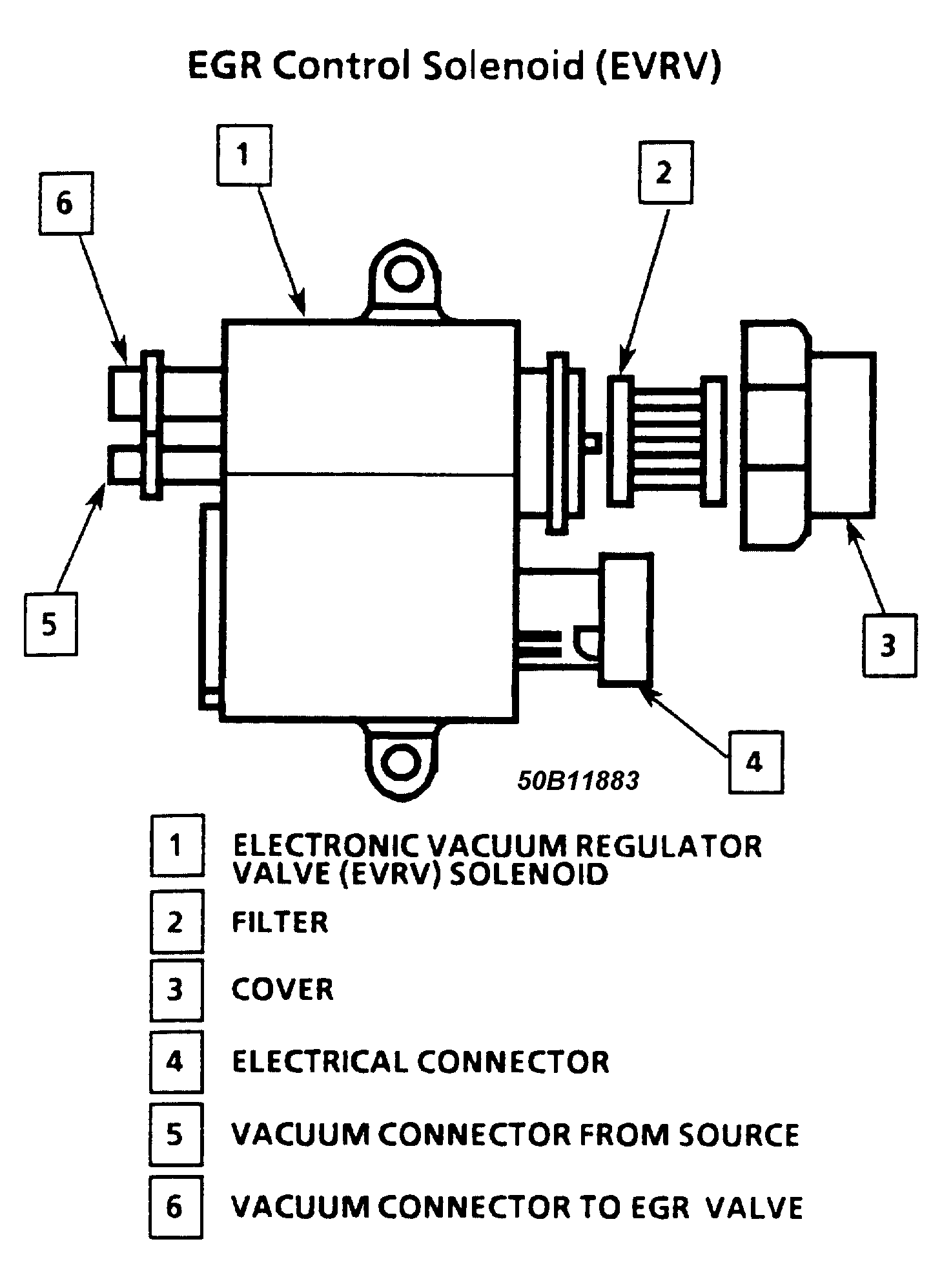

Fig 2: Servicing EVRV Filter (Heavy-Duty Gasoline Models)
G50B11883Courtesy of GENERAL MOTORS CORP.
