Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS/Traction Control Module | In left rear storage compartment. | |
| Air Bag System | ||
| Inflator Module | On center of steering wheel. | |
| Resistor Module | Behind center of dash, near radio control head. | |
| Blower Motor Power Module | On right side of firewall, on top of evaporator housing. | |
| Central Control Module (CCM) | Behind center of dash, behind radio. | |
| Cruise Control Module | Behind right side of dash, near radio receiver box. | |

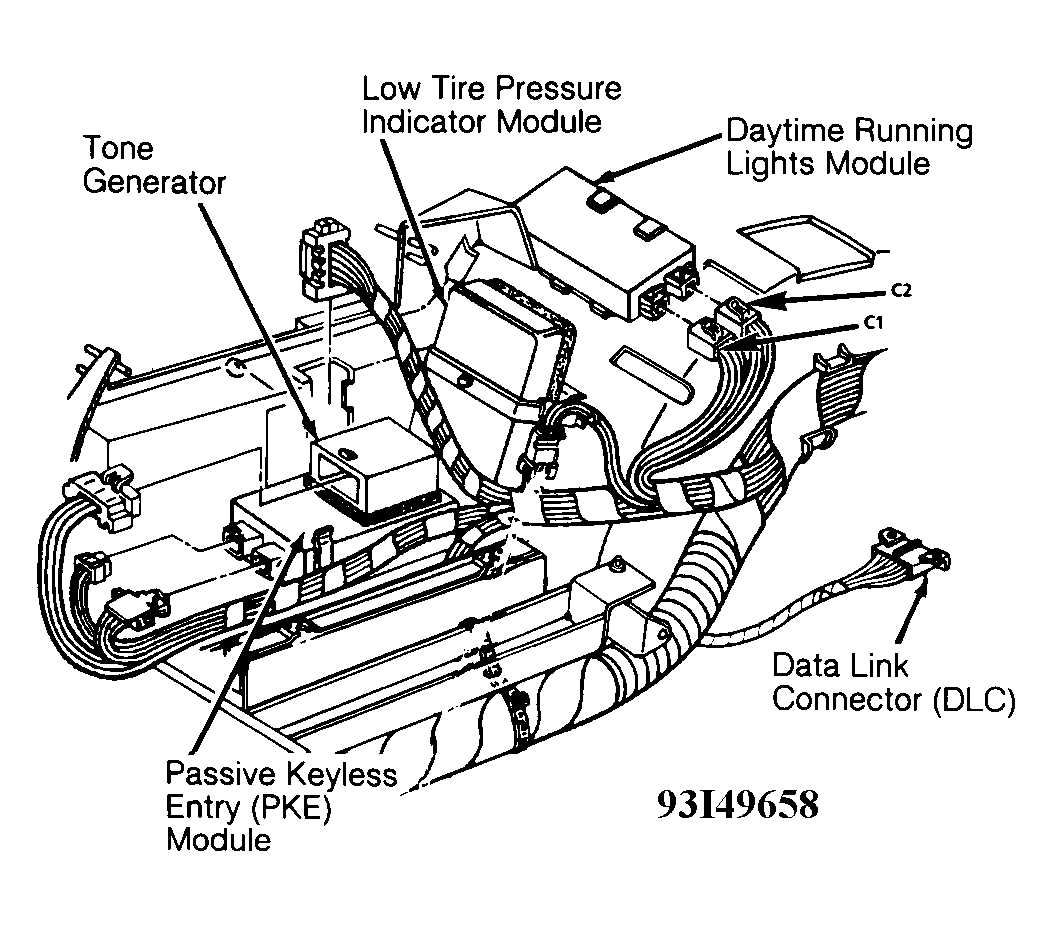

| Daytime Running Lights (DRL) Module | Behind left side of dash, near DIC. See Figure . | |
| Diag. Energy Reserve Module (DERM) | Behind right side of dash, left of fuse block. | |
| Headlight Door Control Module | In lower left front of engine compartment. | |
| Low Tire Pressure Warning Module | Behind center of dash, left of DIC. See Figure . | |
| Passive Keyless Entry Control Module | Behind center of dash, behind DIC. See Figure . | |
| Power Seat Control Module | Under passenger's seat. | |
| Power Window Control Module | Behind center of dash, left of DIC. | |
| Powertrain Control Module (PCM) | On left rear of engine compartment, near battery. See Figure . | |
| Select Ride Control Module | In left storage compartment. | |
| TPS Sensor Module | On right rear corner of engine compartment. See Figure . | |
