Service Point Locations

Fig 1: Lift Point Locations (Typical)
G90E04477Courtesy of GENERAL MOTORS CORP.

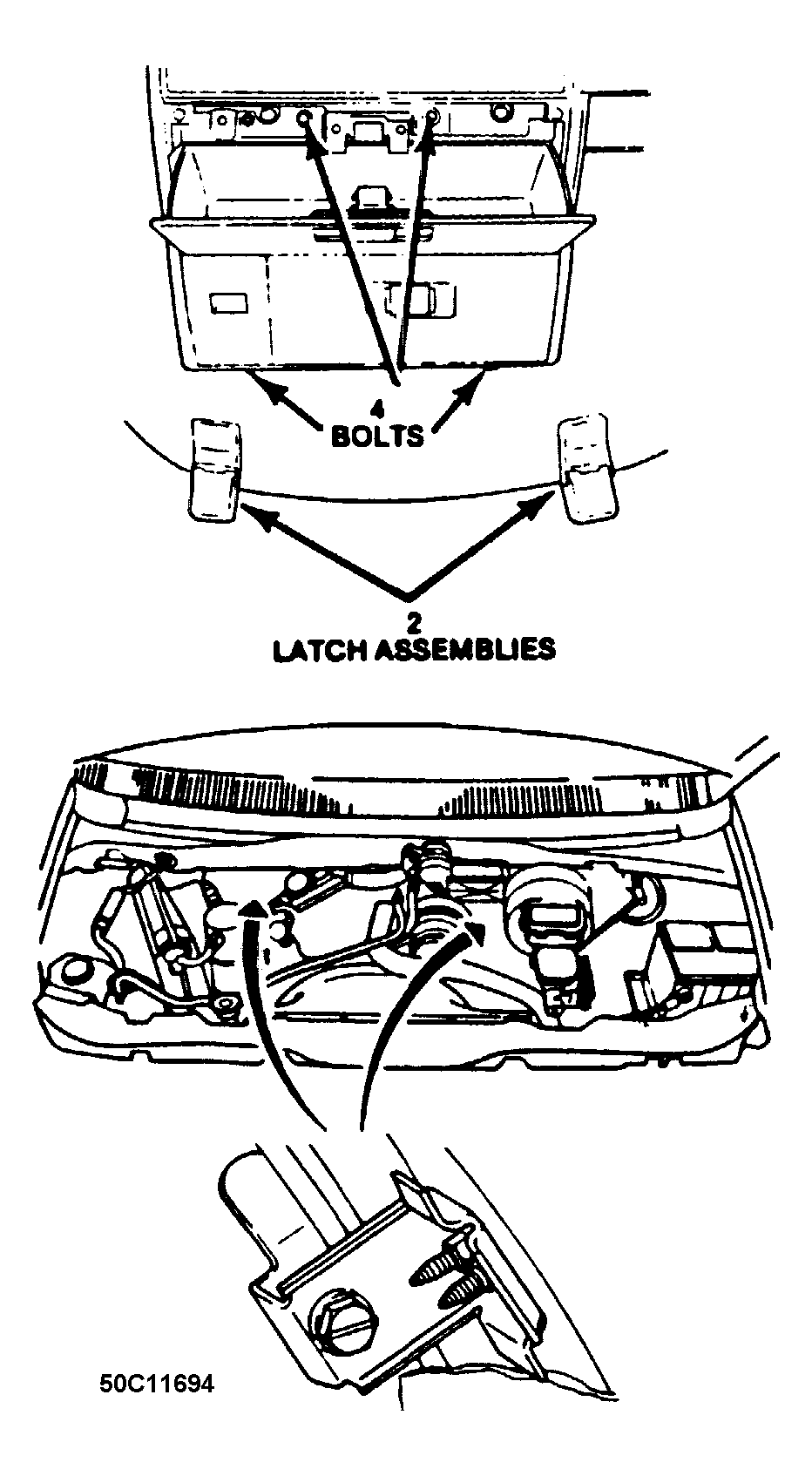

Fig 2: 1985-89 Engine Cover Removal (1 of 2)
G50C11694Courtesy of GENERAL MOTORS CORP.

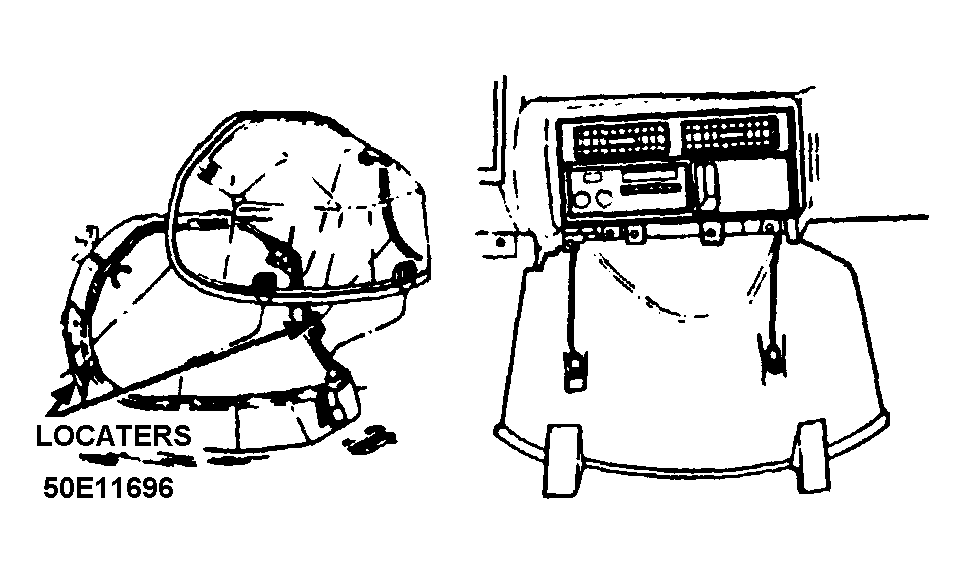

Fig 3: 1985-89 Engine Cover Removal (2 of 2)
G50E11696Courtesy of GENERAL MOTORS CORP.

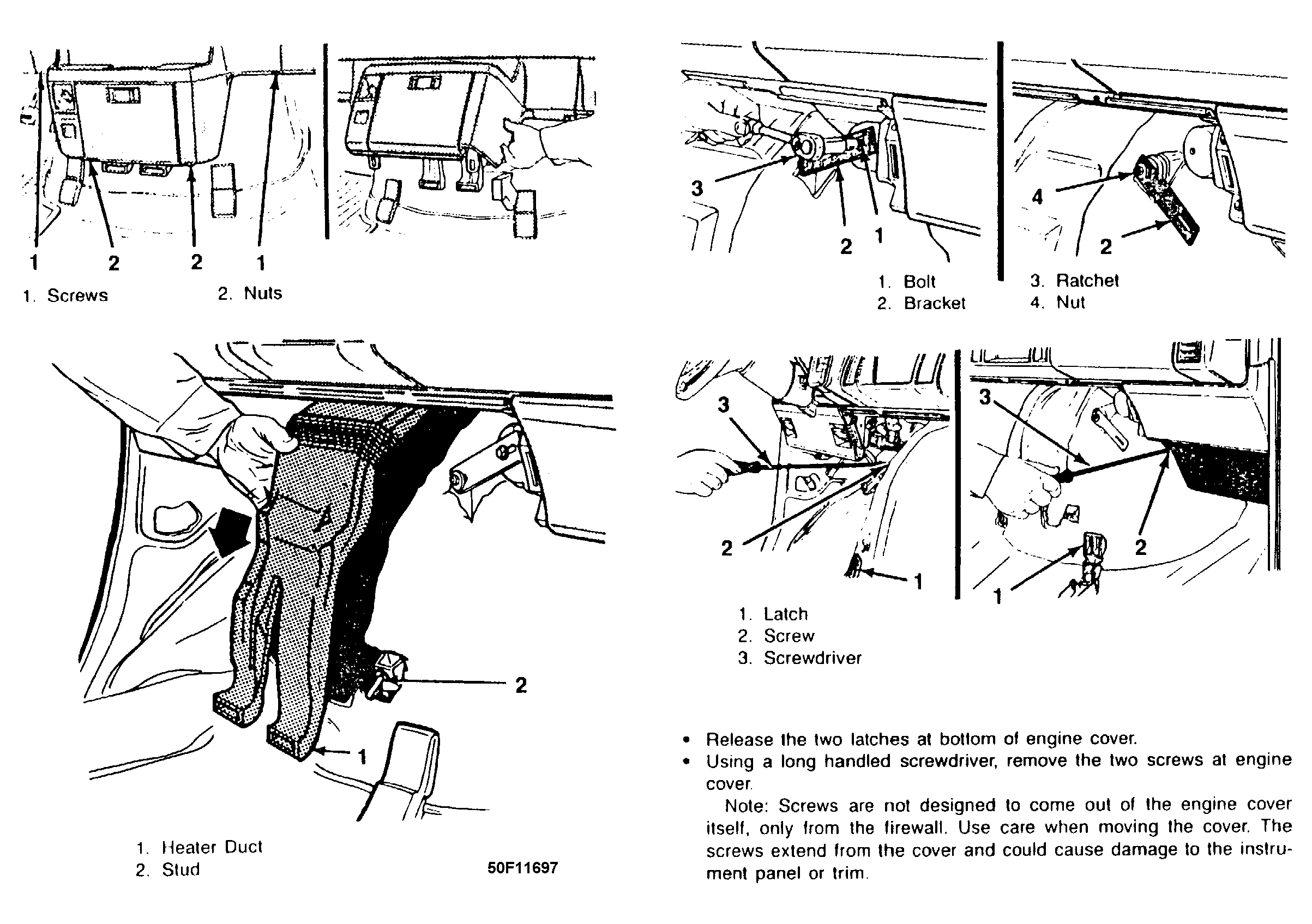

Fig 4: Engine Cover Removal (1990-96)
G50F11697Courtesy of GENERAL MOTORS CORP.

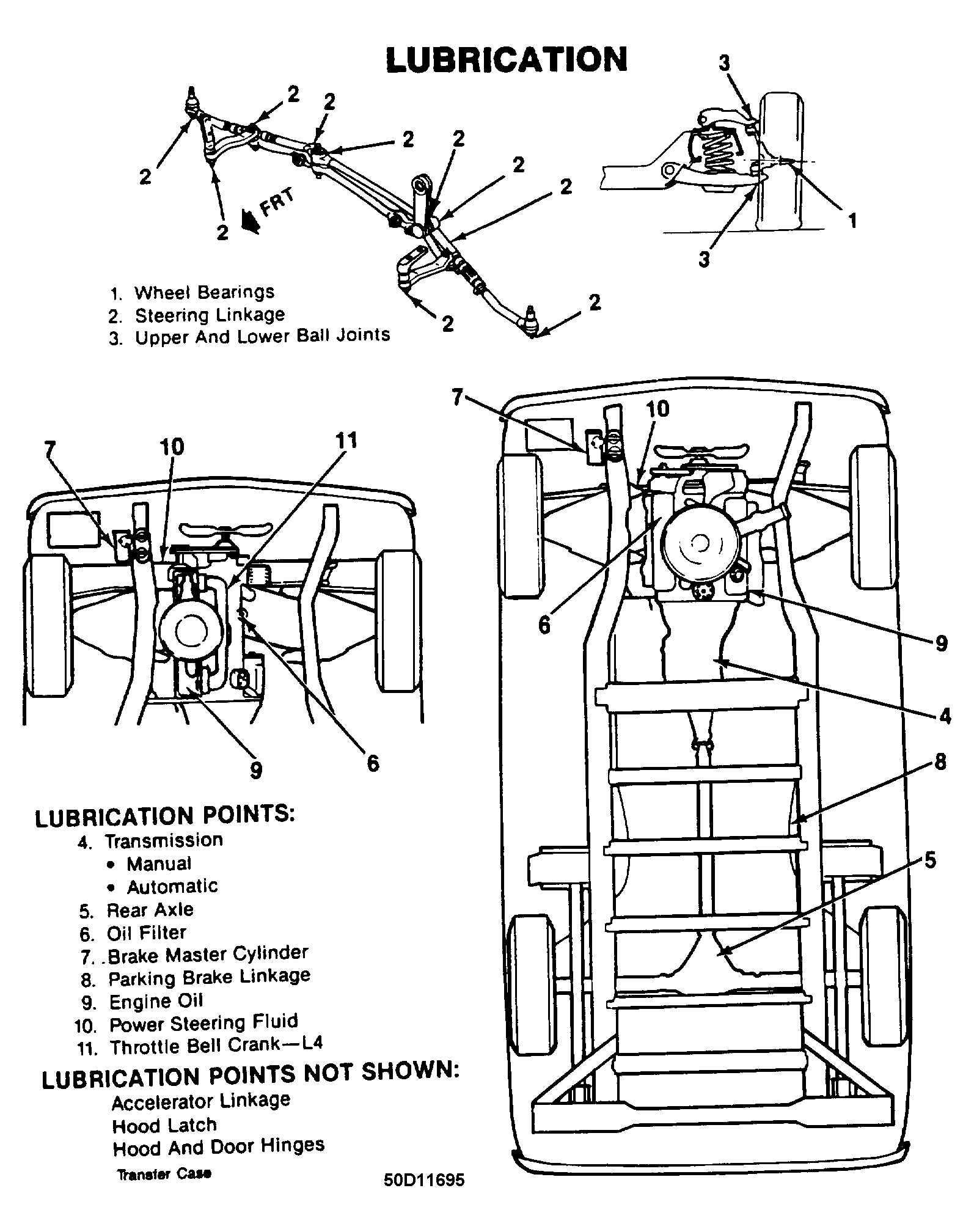

Fig 5: Lubrication Point Locations (Typical)
G50D11695Courtesy of GENERAL MOTORS CORP.
