Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Audio Alarm Module | On convenience center, behind left side of dash. |
| Cruise Control Module | Center front of dash, left of windshield wiper module. |
| Daytime Running Lamps (DRL) Module | Behind left side of dash, taped to main harness. |

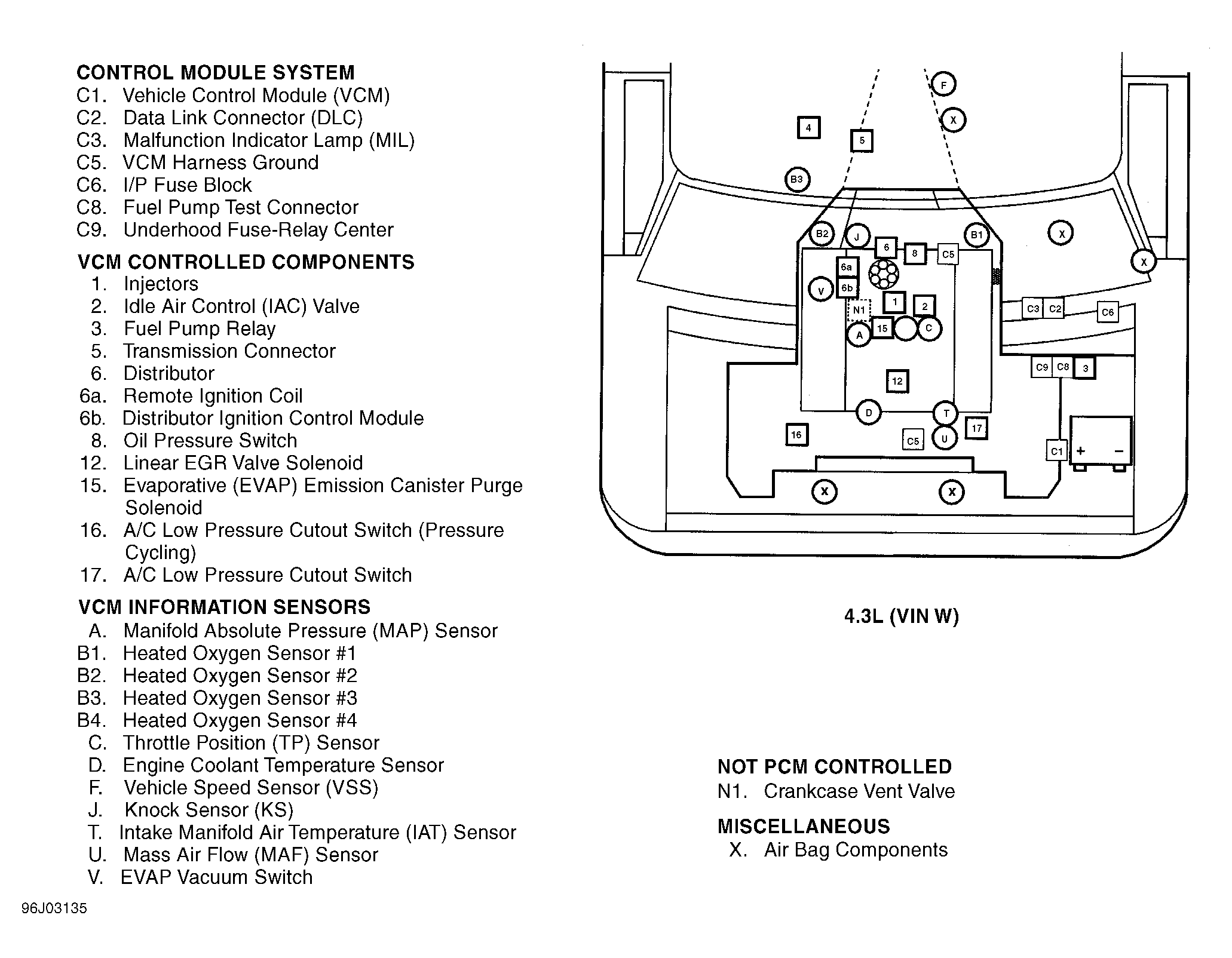

| Distributor Ignition Control Module | Top of engine, front of coil. See Figure . |
| Door Lock Control Module | Behind right kick panel. |
| Liftgate Lock/Latch Module | Near right rear "D" pillar. |
| Remote Keyless Entry (RKE) Module | In right side of instrument cluster, behind air duct. |
| Sensing Diagnostic Module (SDM) | Under driver's seat. |
| Vehicle Control Module (VCM) | Left side of engine. See Figure . |
