Electronic Variable Orifice (EVO) Module

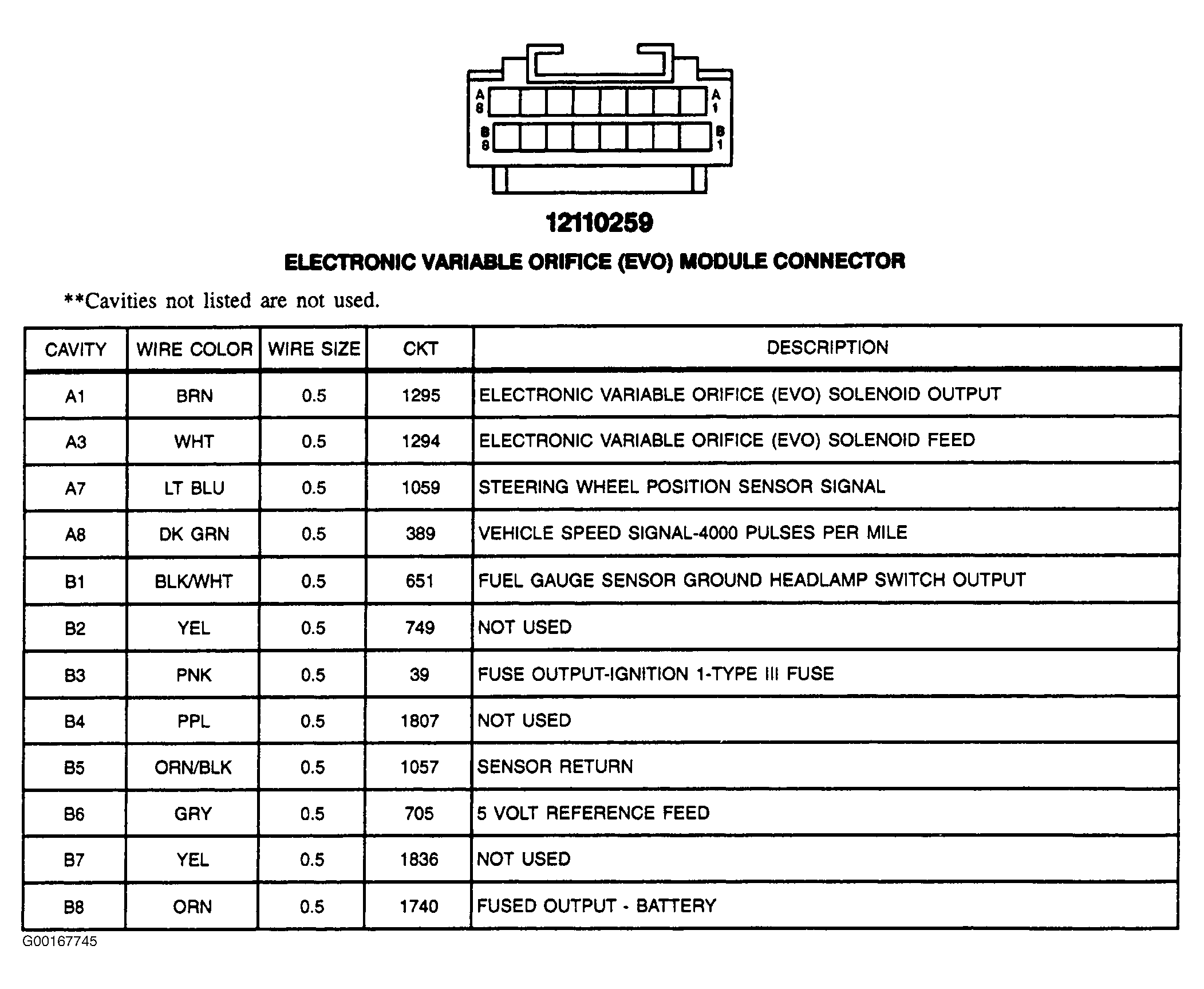

Fig 1: Electronic Variable Orifice (EVO) Module - 16-Pin Connector

G00167745

Courtesy of GENERAL MOTORS CORP.
