Home
>>
Chevrolet
>>
1997
>>
Corvette Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Fuel Injectors #1-8
Fuel Injectors #1-8

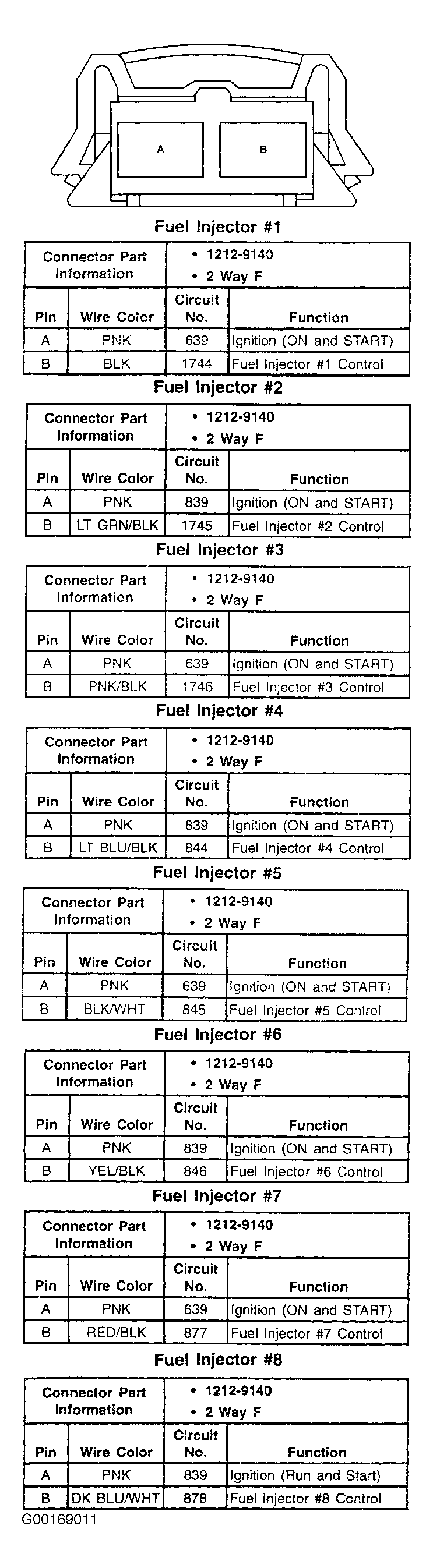

Fig 1: Fuel Injectors #1-8 - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
