Intake Air Temperature (IAT) Sensor

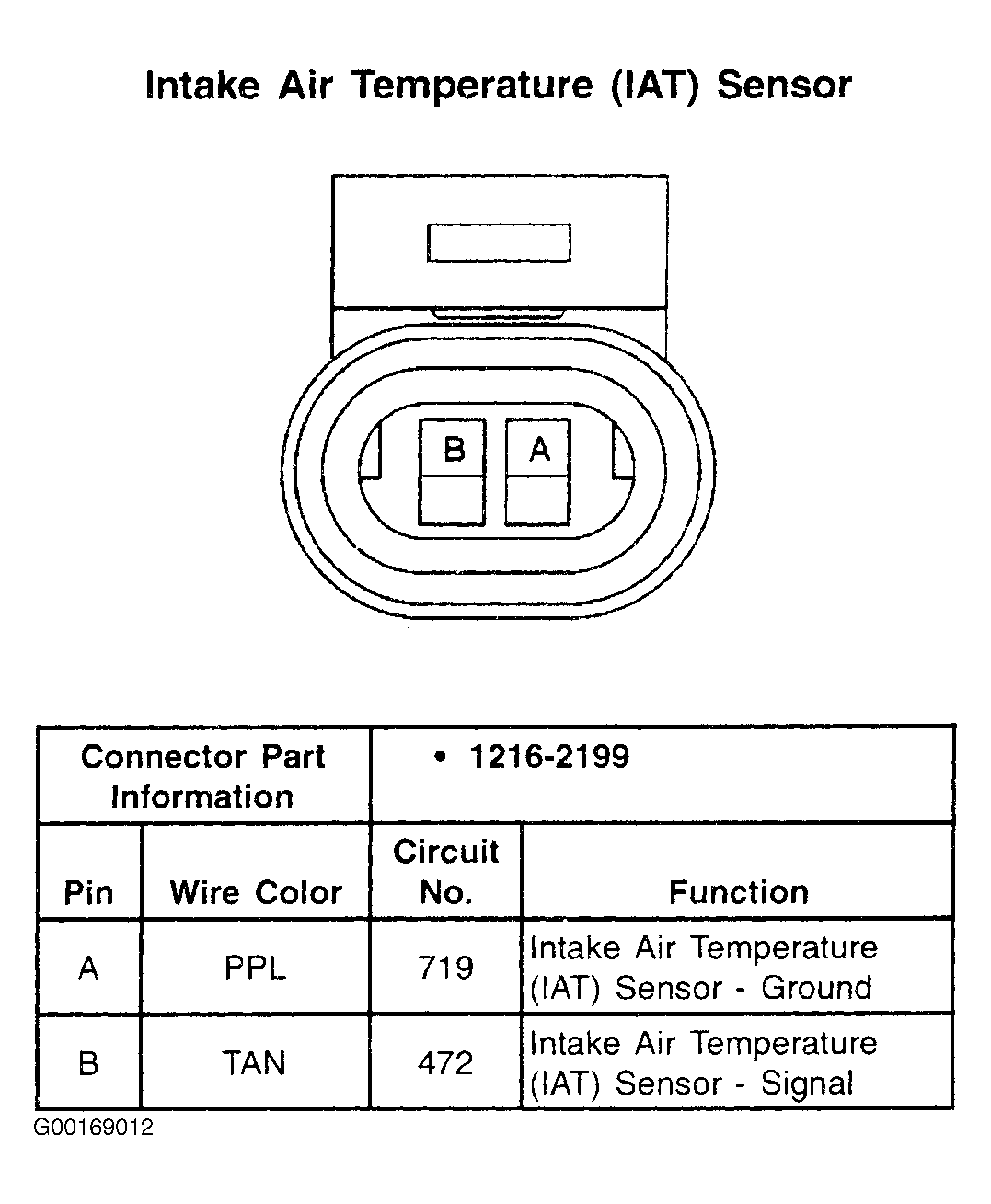

Fig 1: Intake Air Temperature (IAT) Sensor - 2-Pin Connector

G00169012

Courtesy of GENERAL MOTORS CORP.
