Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

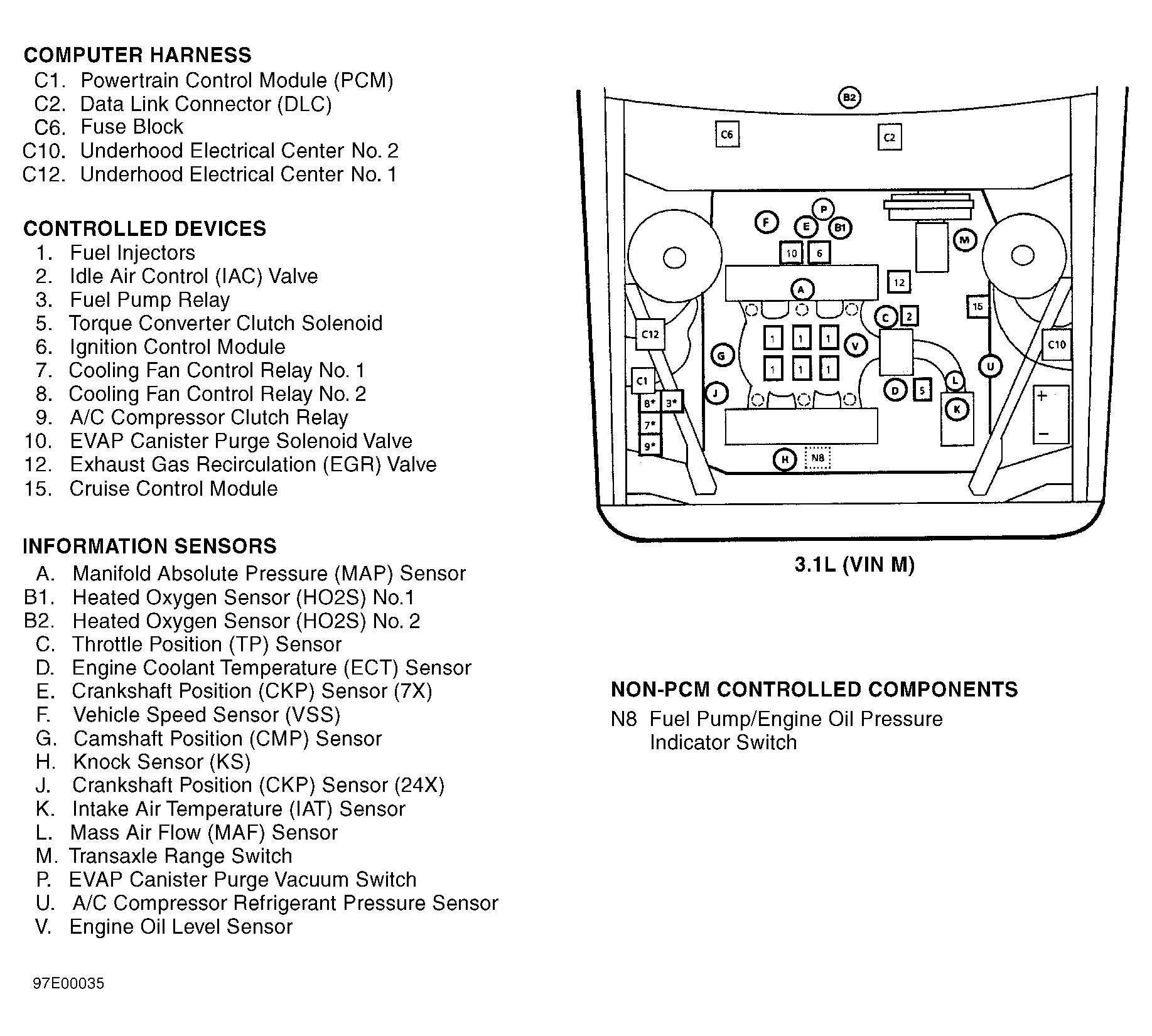

Fig 1: Engine Compartment (3.1L VIN M)
G97E00035

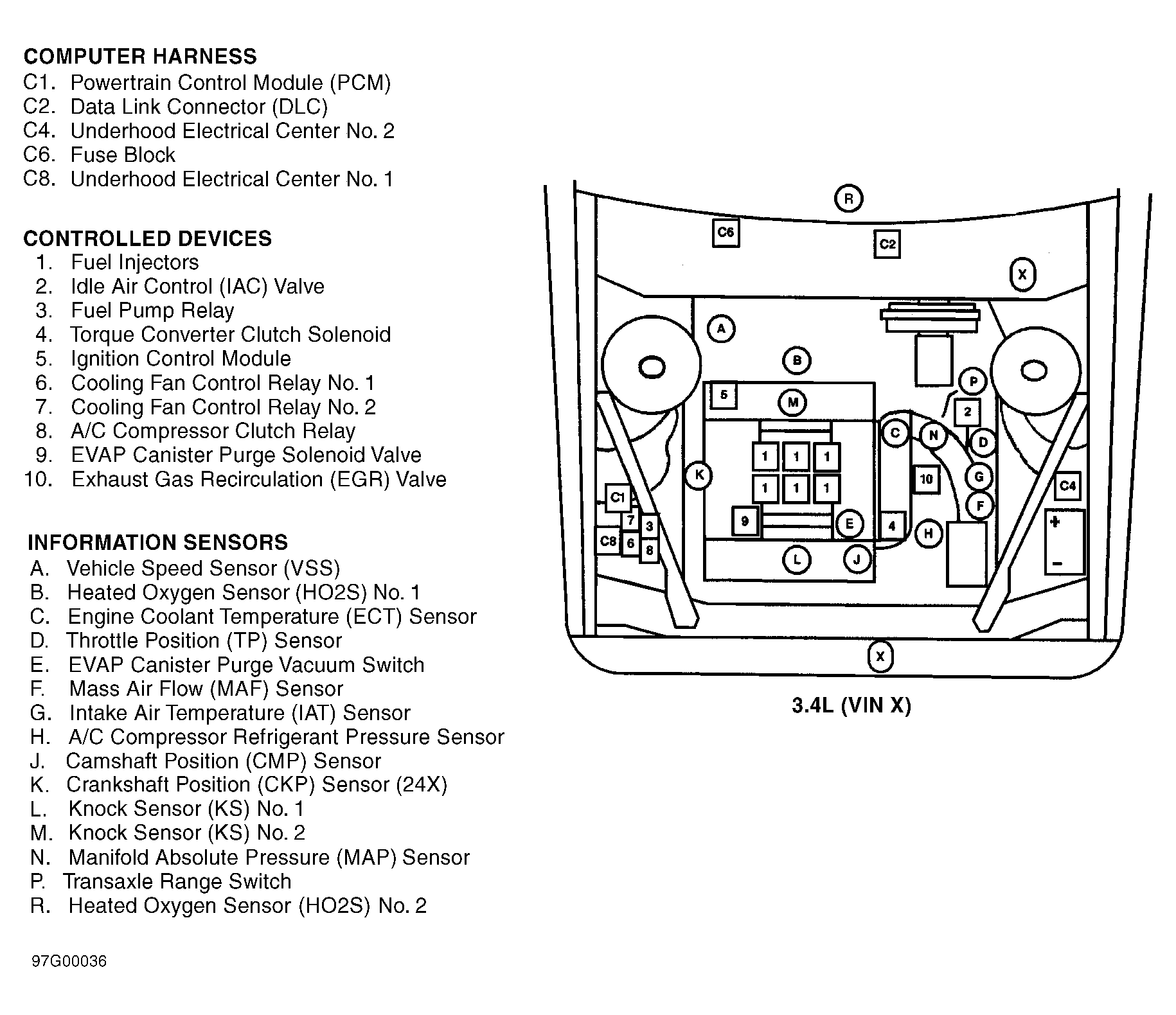

Fig 2: Engine Compartment (3.4L VIN X)
G97G00036
