Electronic Brake Control Relay

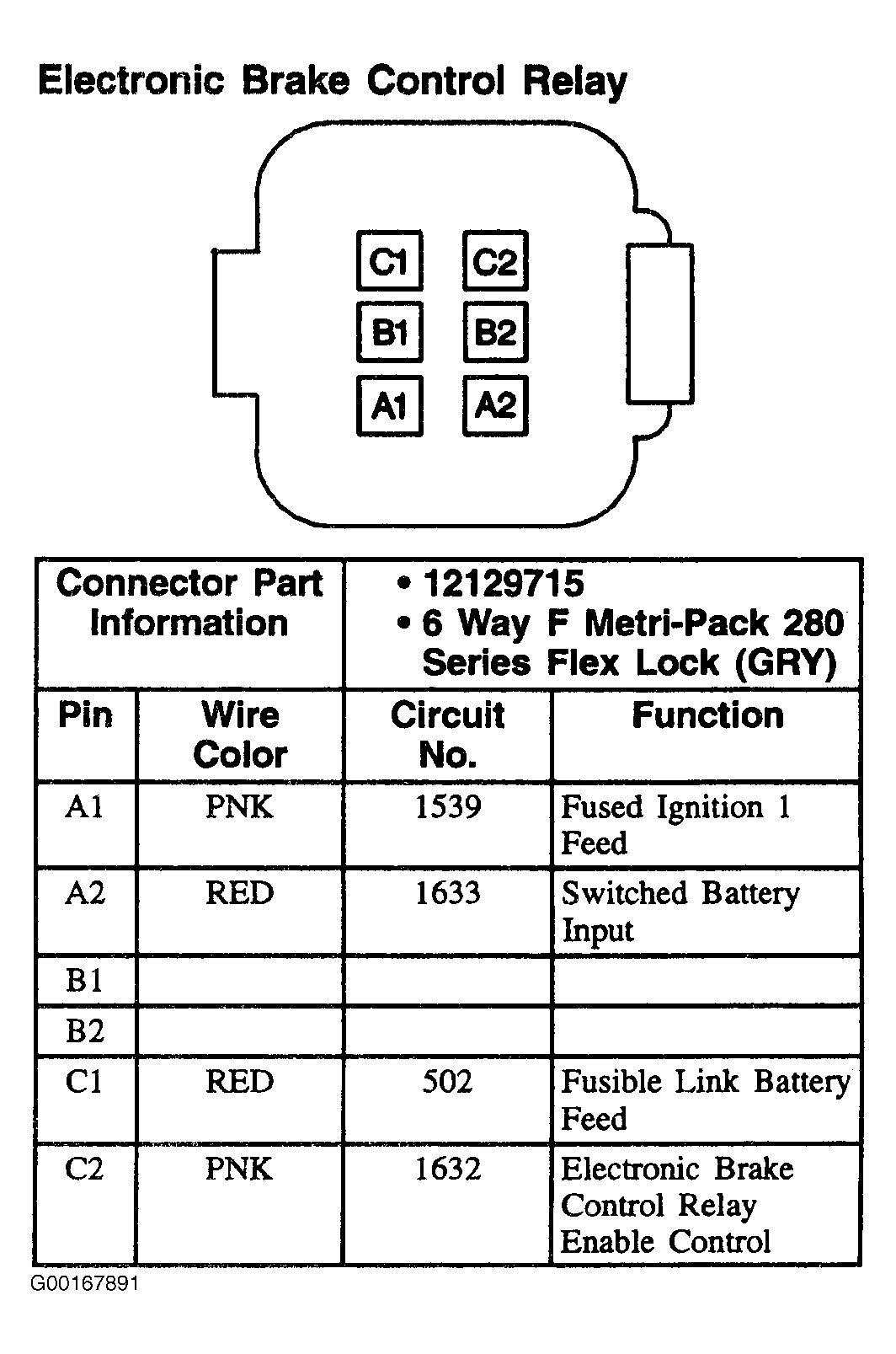

Fig 1: Electronic Brake Control Relay (Grand Prix) - 6-Pin Connector (Gray)
G00167891Courtesy of GENERAL MOTORS CORP.
