Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

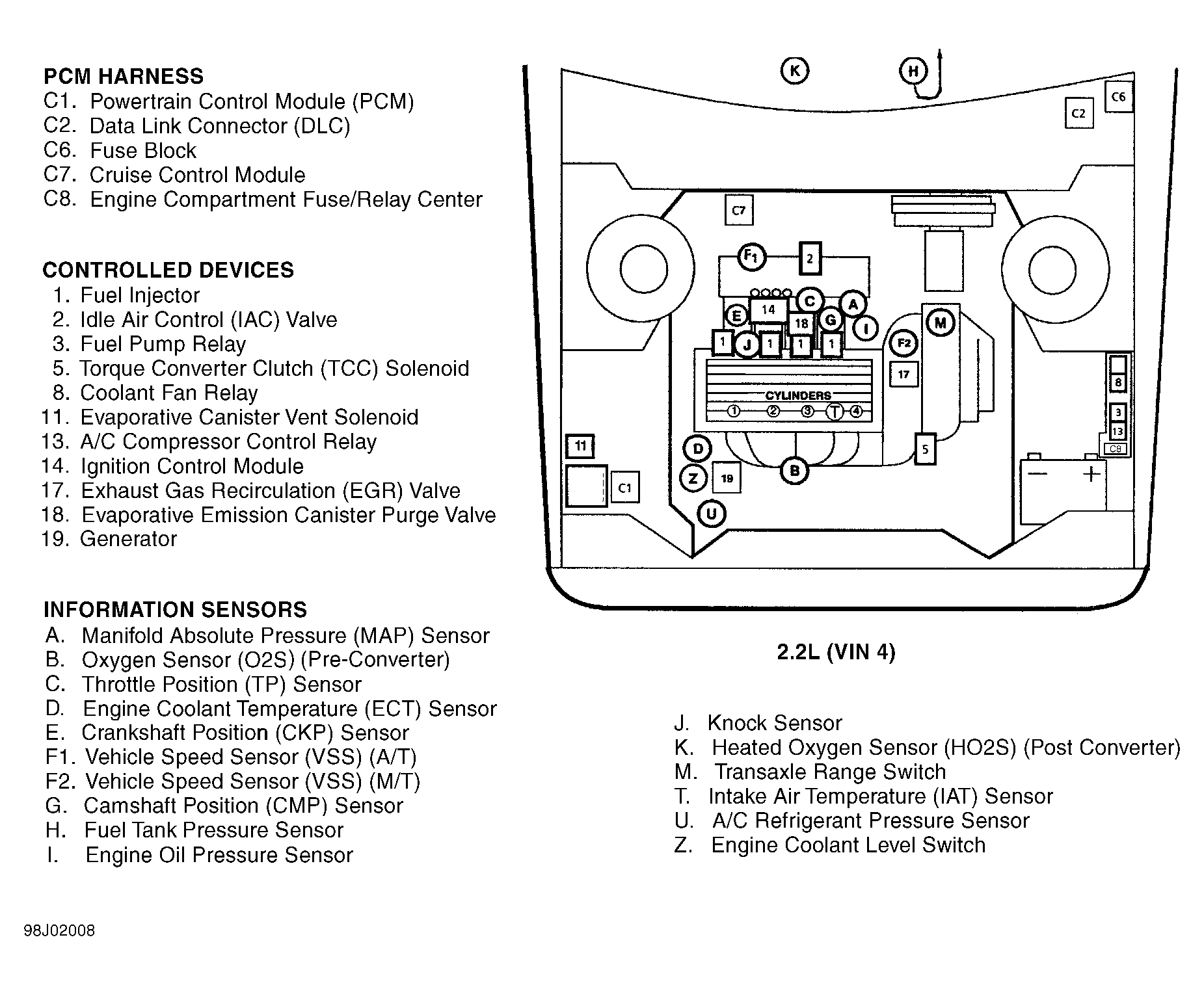

Fig 1: Engine Compartment (2.2L VIN 4)
G98J02008

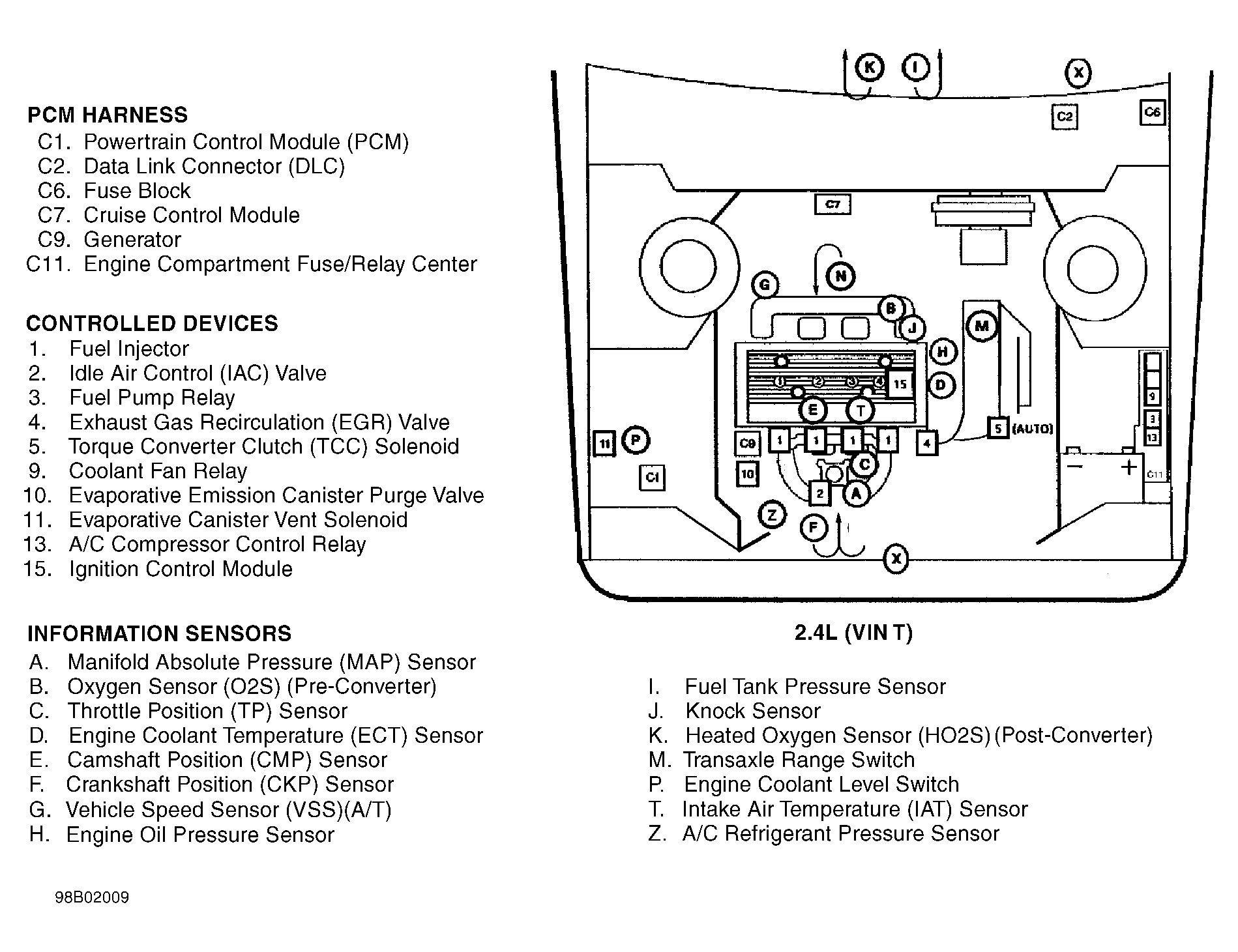

Fig 2: Engine Compartment (2.4L VIN T)
G98B02009
