Diagnostic Tests: Introduction

NOTE: To identify BCM connector terminals, refer to illustrations. See Fig 1 and Fig 2 .

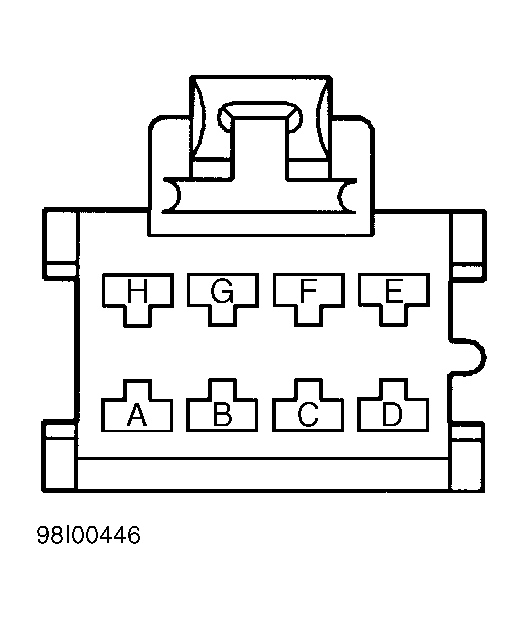

Fig 1: Identifying BCM Connector C1 Terminals
G98I00446Courtesy of GENERAL MOTORS CORP.

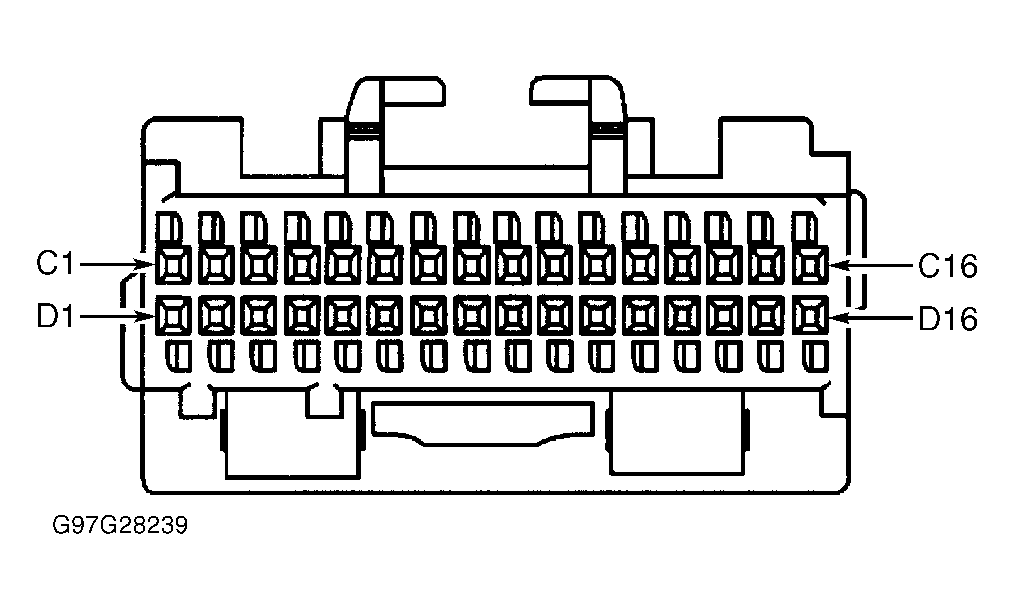

Fig 2: Identifying BCM Connector C2 Terminals
G97G28239Courtesy of GENERAL MOTORS CORP.
