Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

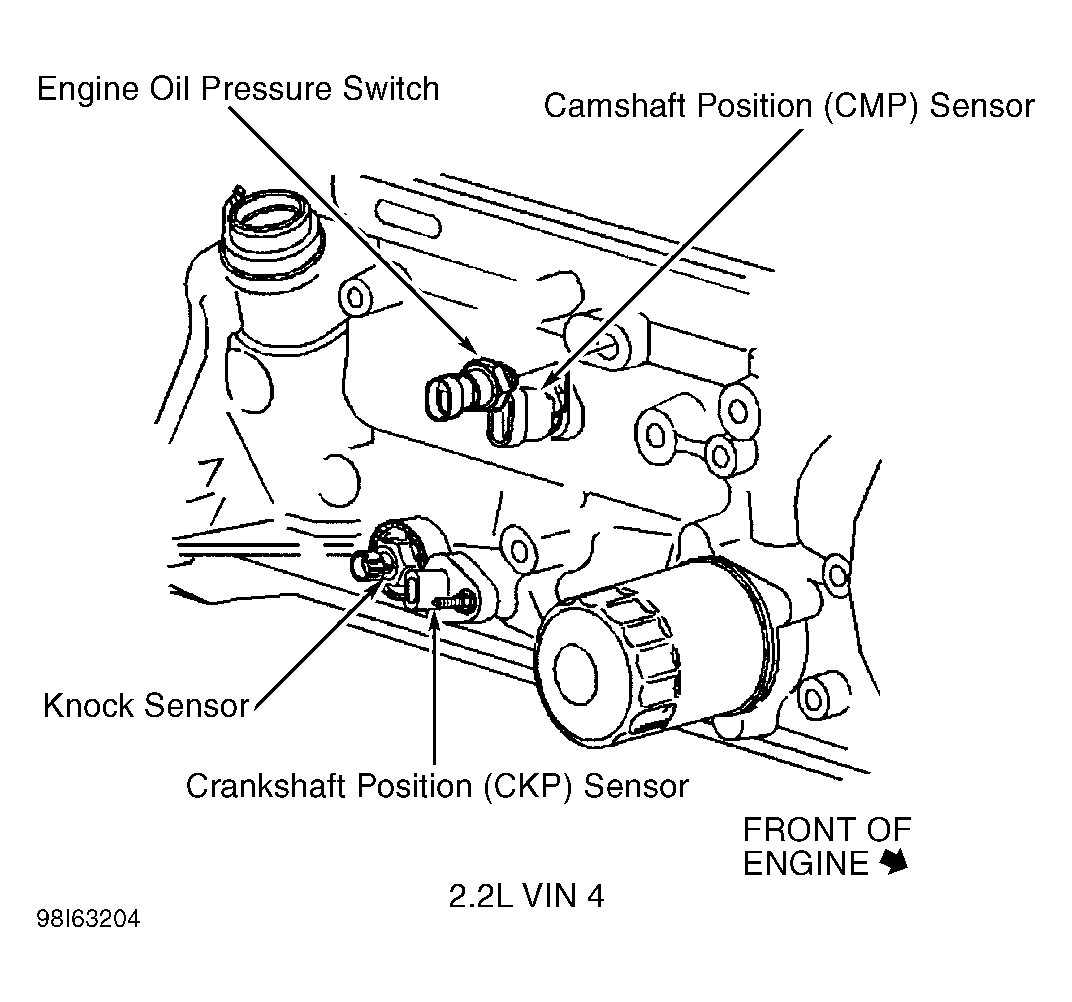

Fig 1: Left Front Of Engine (2.2L VIN 4)

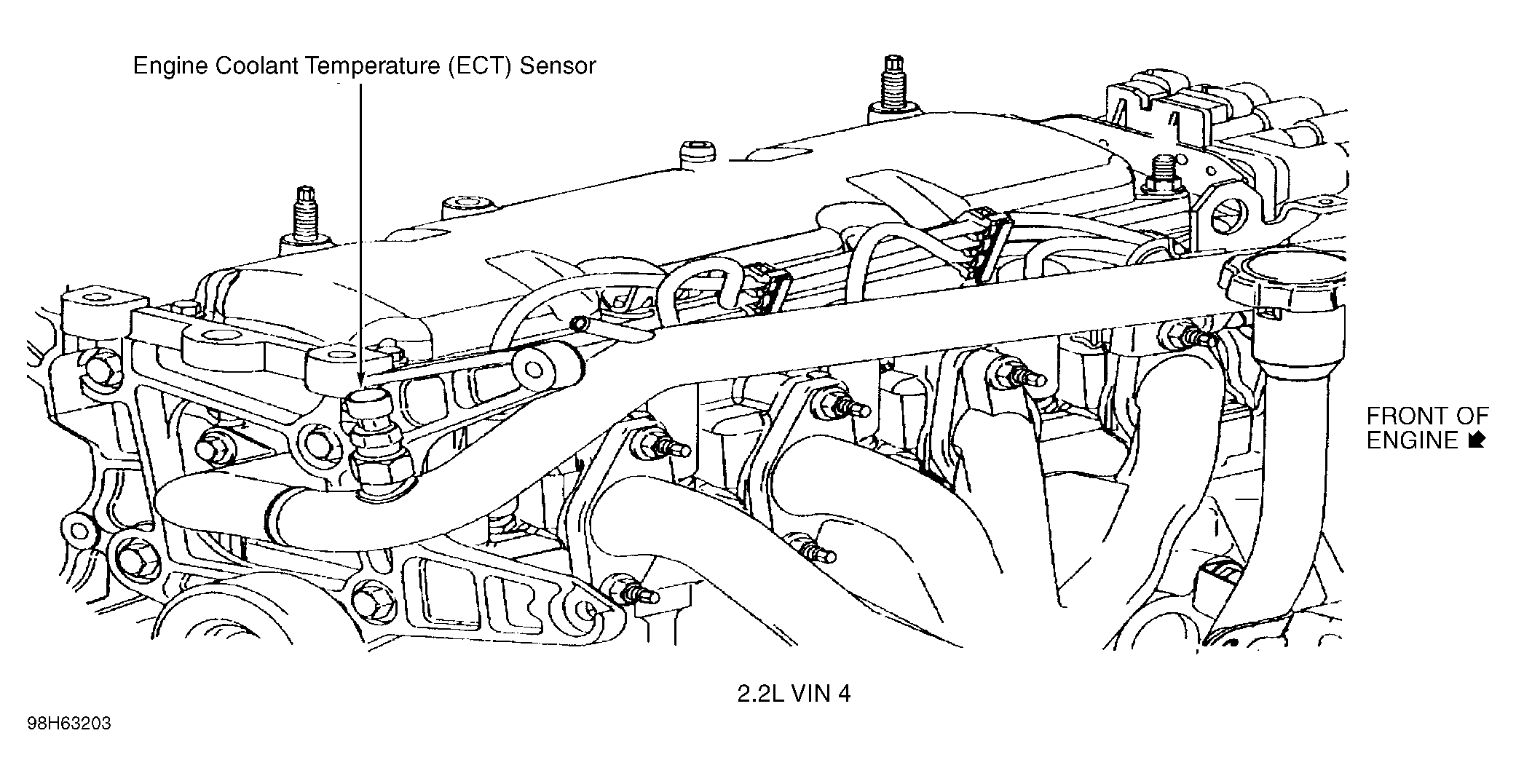

Fig 2: Right Side Of Engine (2.2L VIN 4)

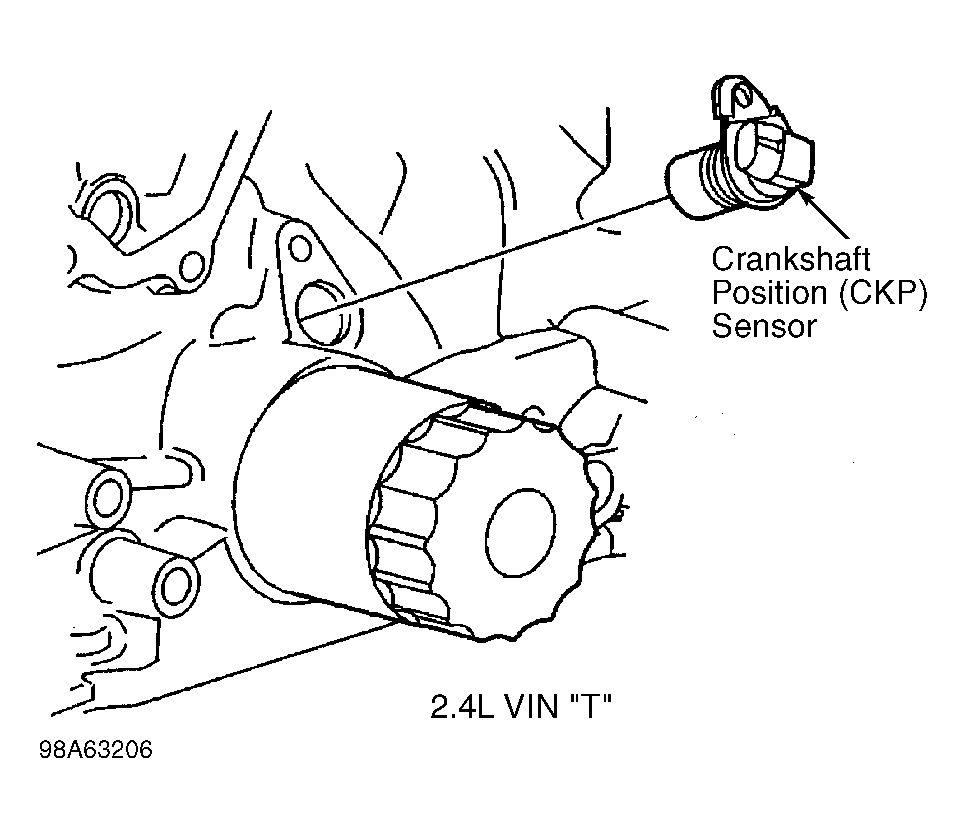

Fig 3: Right Side Of Engine (2.4L VIN T)

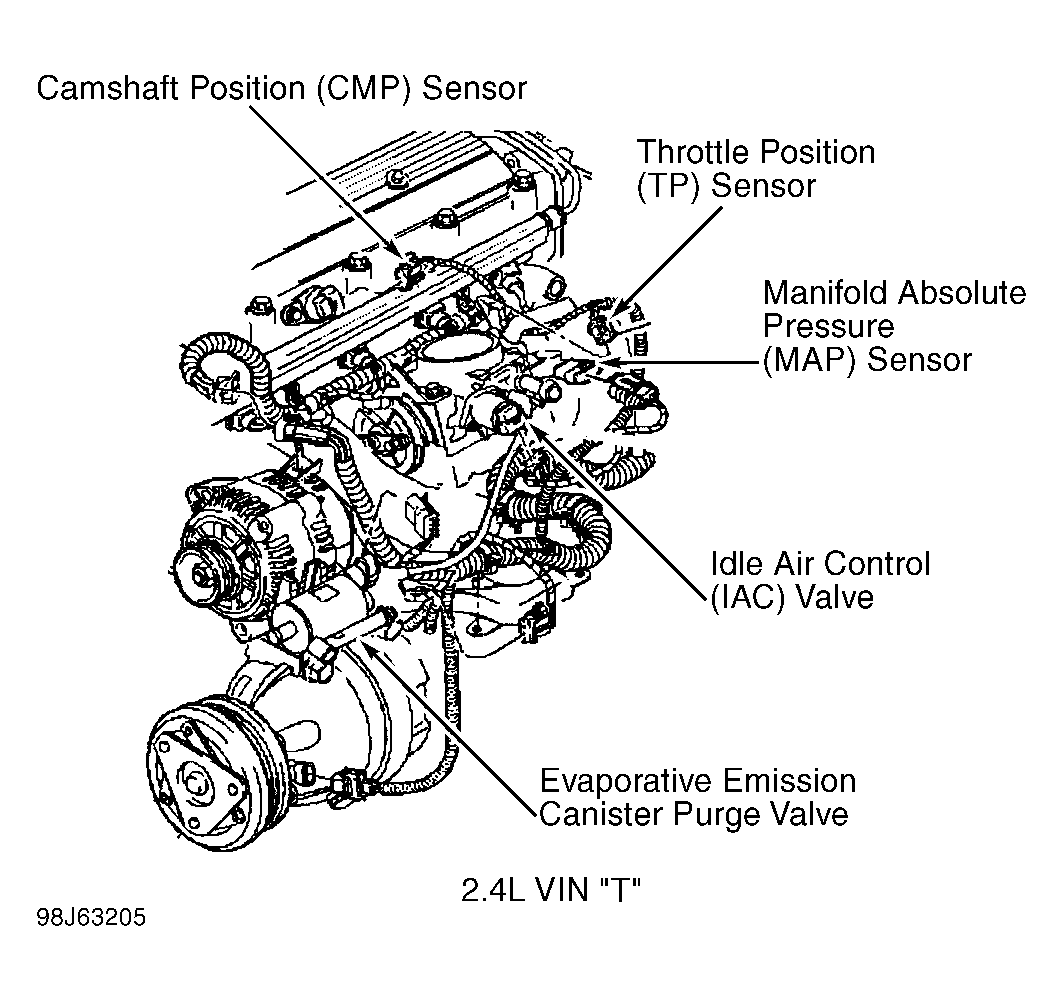

Fig 4: Left Side Of Engine (2.4L VIN T)

Fig 5: Left Front Of Engine Compartment

Fig 6: Right Front Of Engine Compartment
