Power Mirror Switch Test

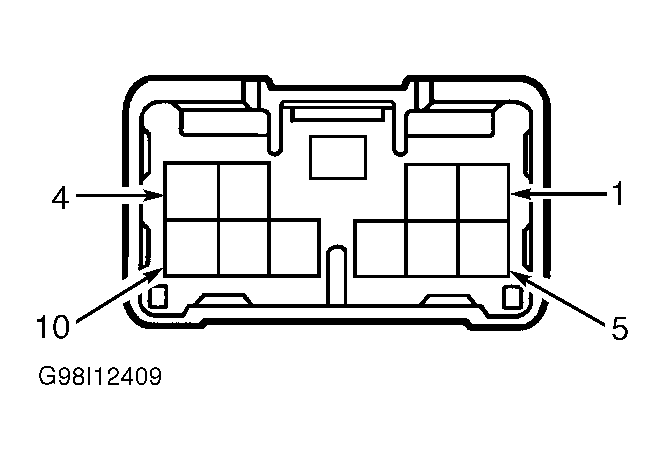

Remove power mirror switch. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. Disconnect power mirror switch connector. Using an ohmmeter, check continuity between appropriate mirror switch terminals. See POWER MIRROR SWITCH CONTINUITY TEST table. See Figure . Continuity should exist between indicated terminals. If continuity is not as specified, replace switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Application | Terminals No. | ||
|---|---|---|---|
| Selector Switch In "L" Position | |||
| Horizontal/Vertical Switch | |||
| Up | 1 & 9; 6 & 10 | ||
| Down | 1 & 10; 6 & 9 | ||
| Left | 5 & 9; 6 & 10 | ||
| Right | 5 & 10; 6 & 9 | ||
| Selector Switch In "R" Position | |||
| Horizontal/Vertical Switch | |||
| Up | 6 & 10; 7 & 9 | ||
| Down | 6 & 9; 7 & 10 | ||
| Left | 6 & 10; 8 & 9 | ||
| Right | 6 & 9; 8 & 10 | ||
