Charging Systems: Overhaul
NOTE:
For overhaul, see exploded view. See
Fig 1
.

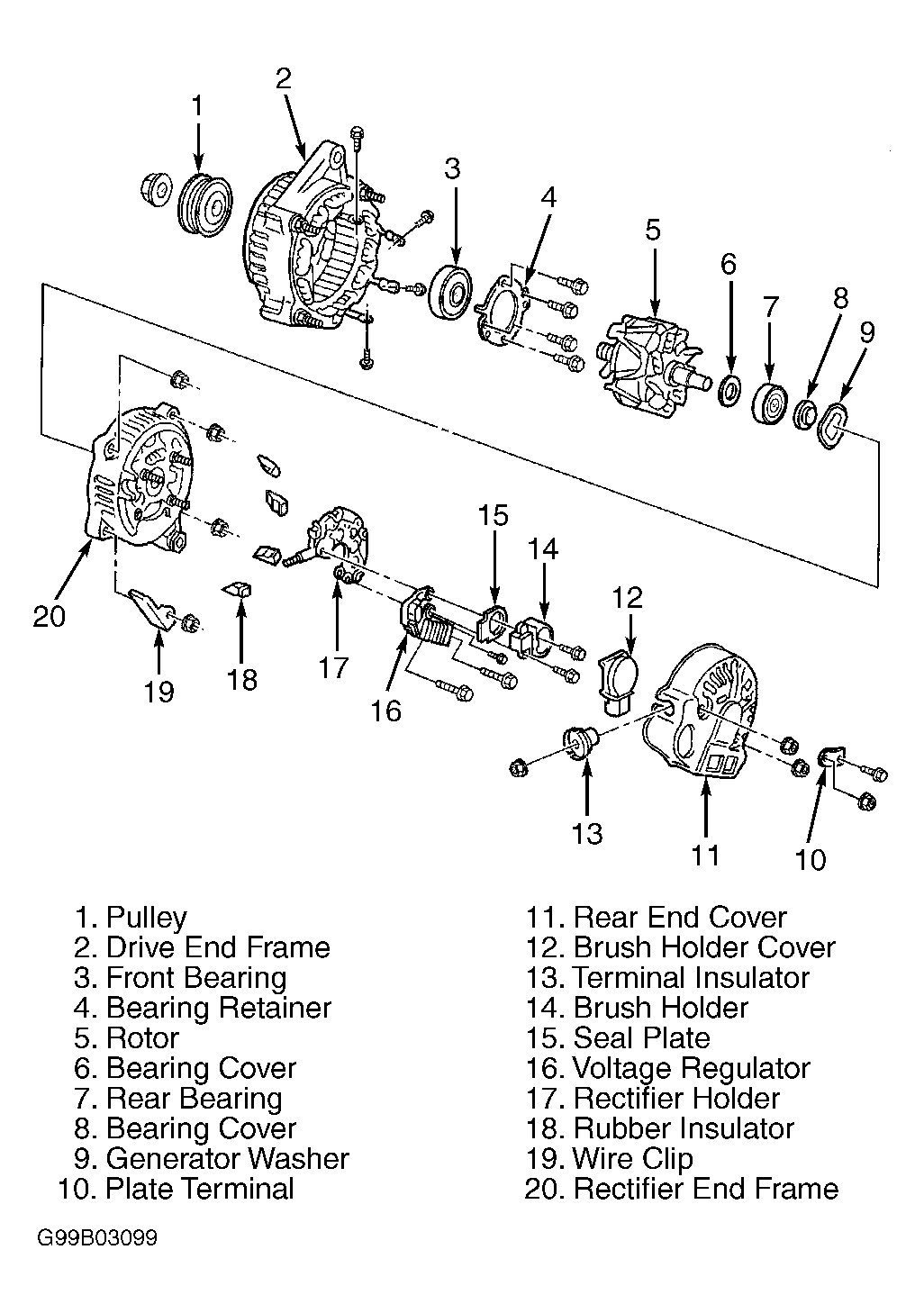

Fig 1: Exploded View Of Generator (Typical)
Courtesy of GENERAL MOTORS CORP.
